DNN and CNN

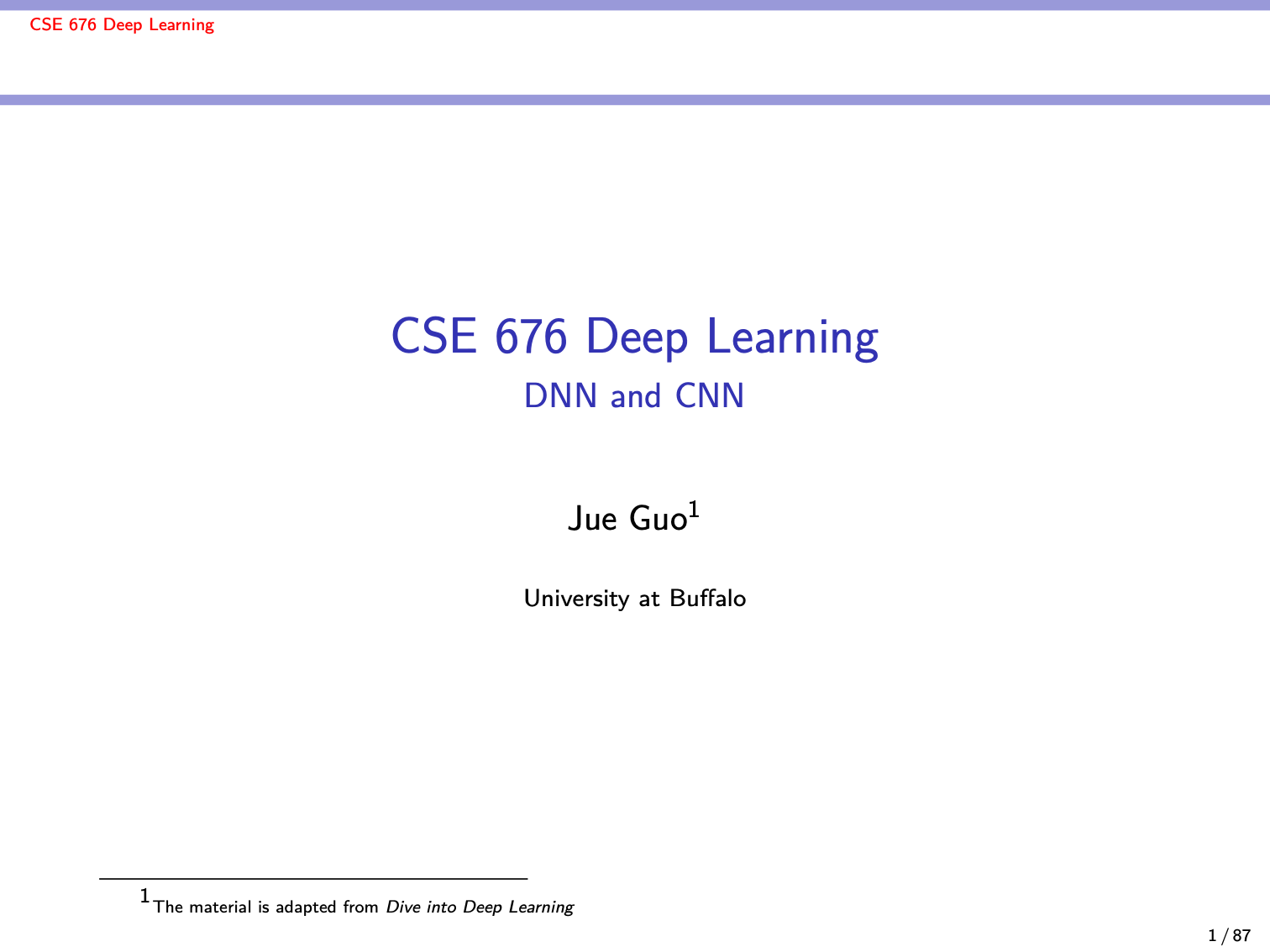

Slide 1

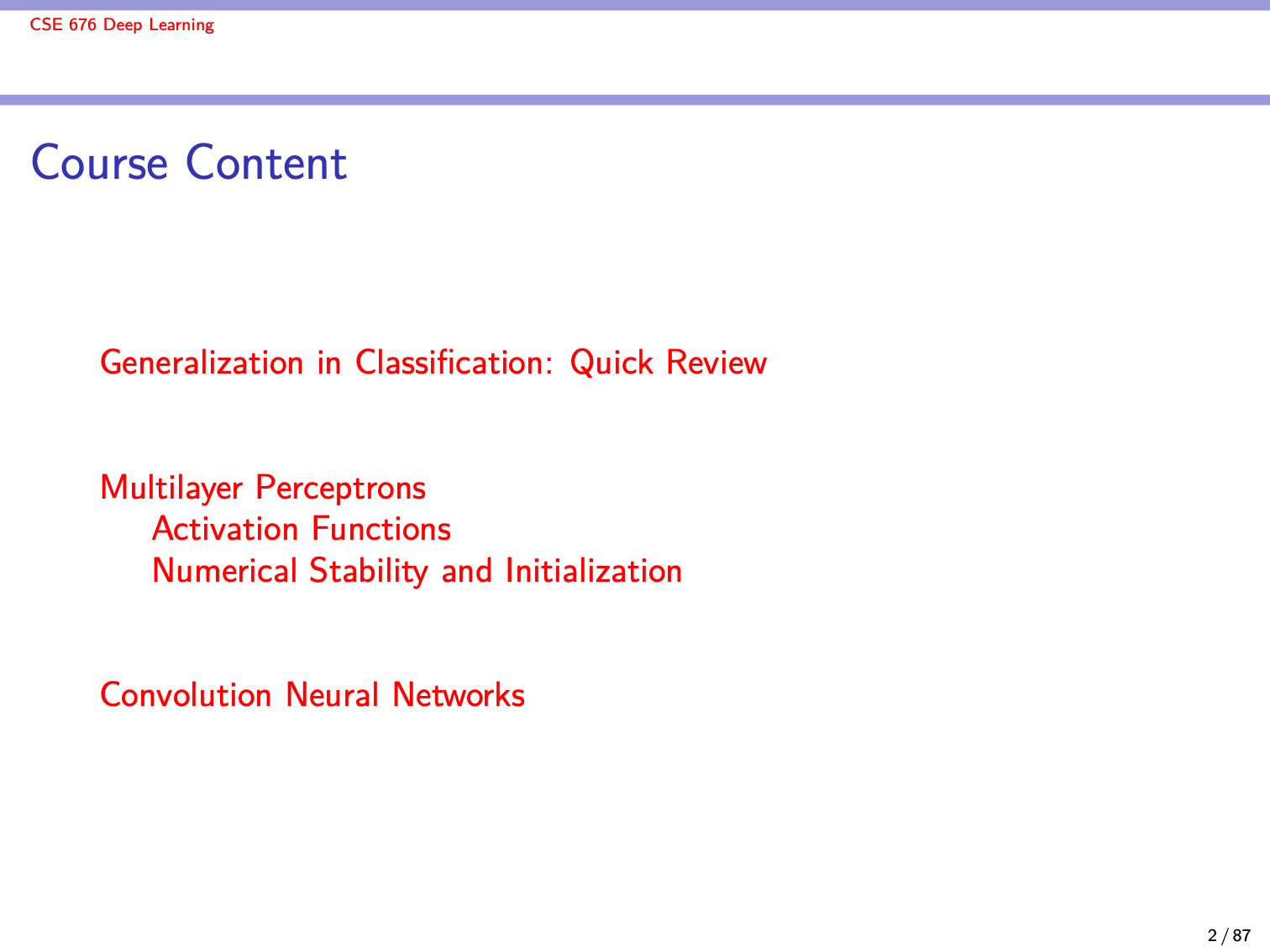

Slide 2

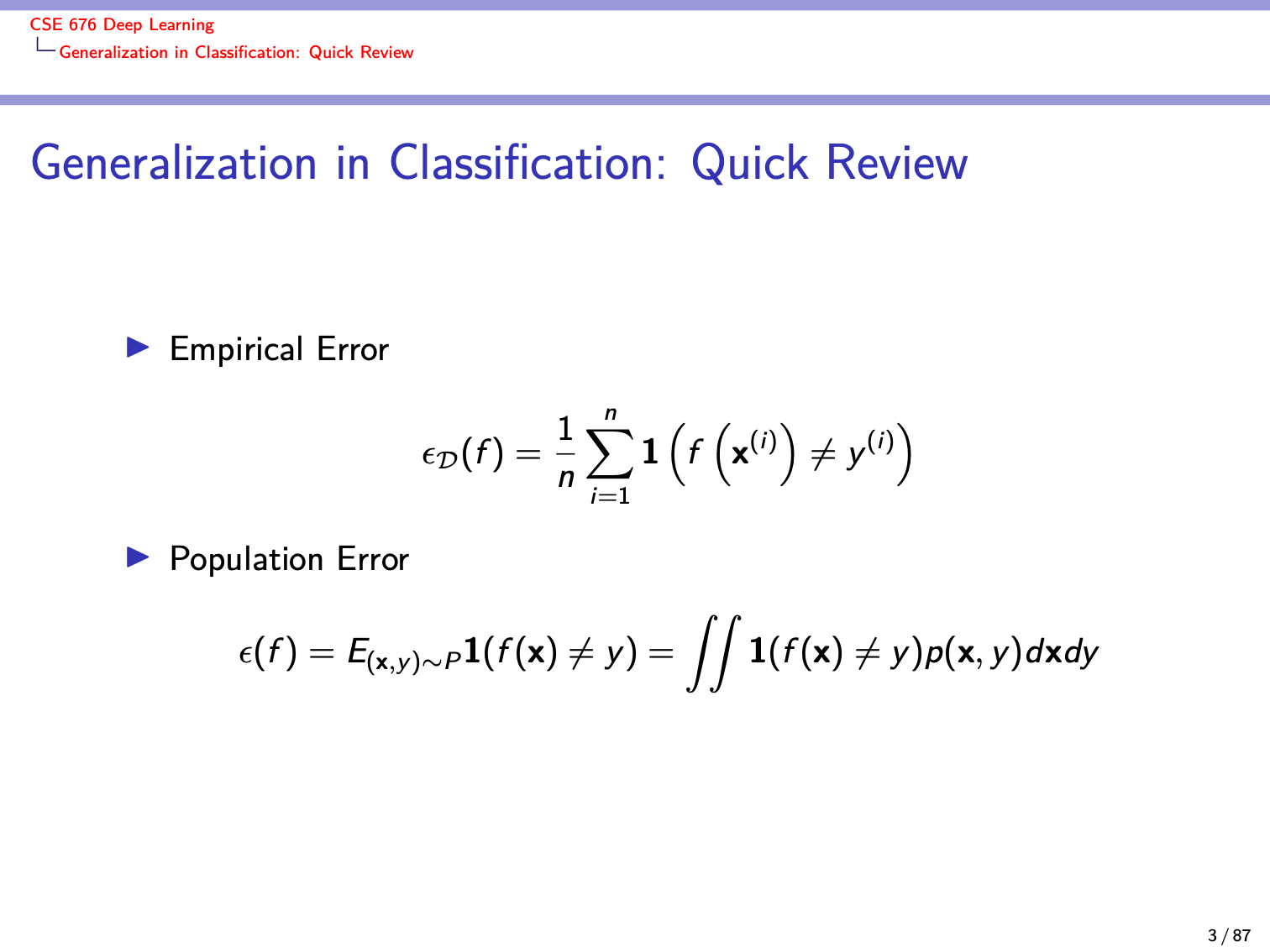

Slide 3

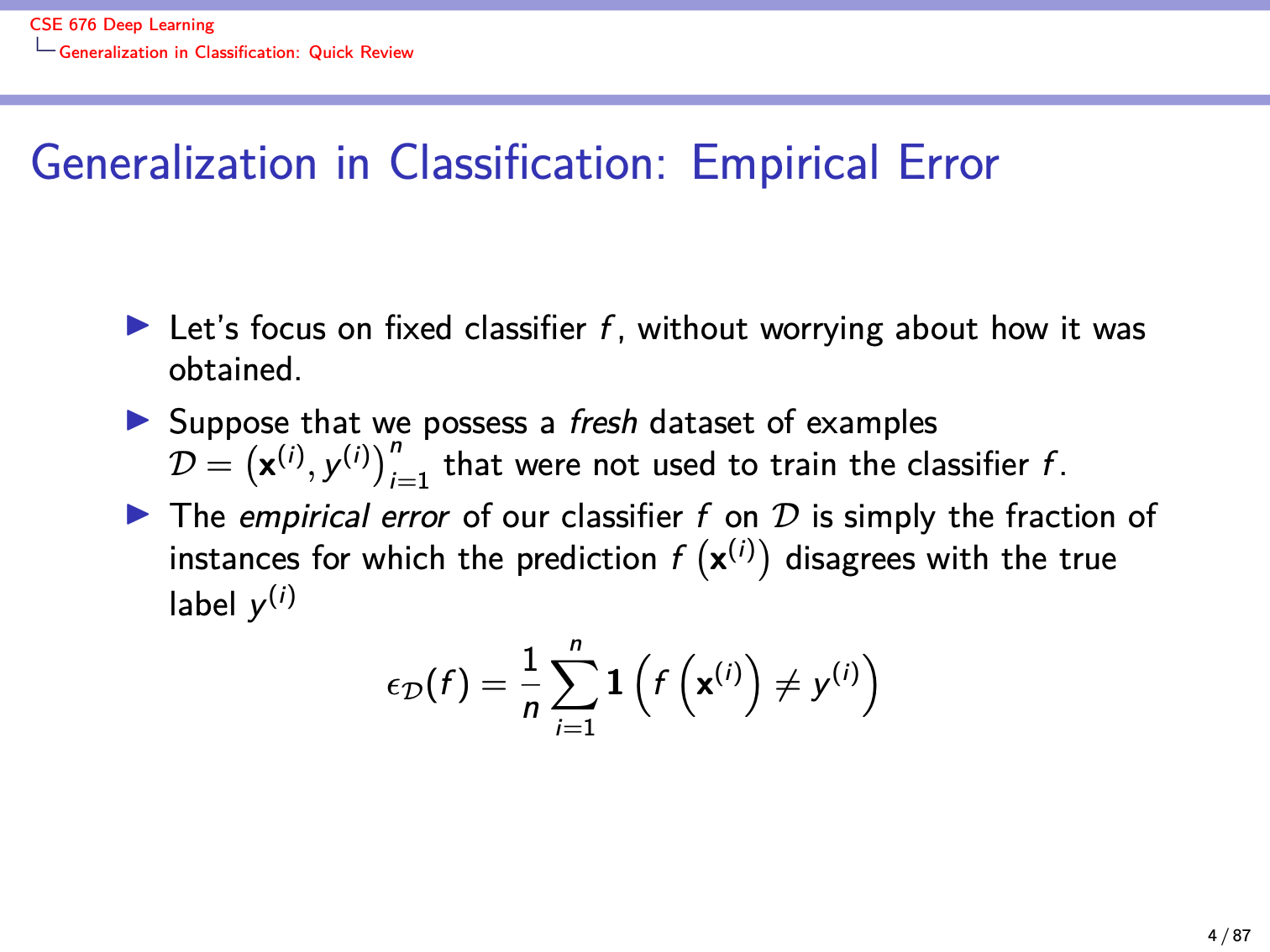

Slide 4

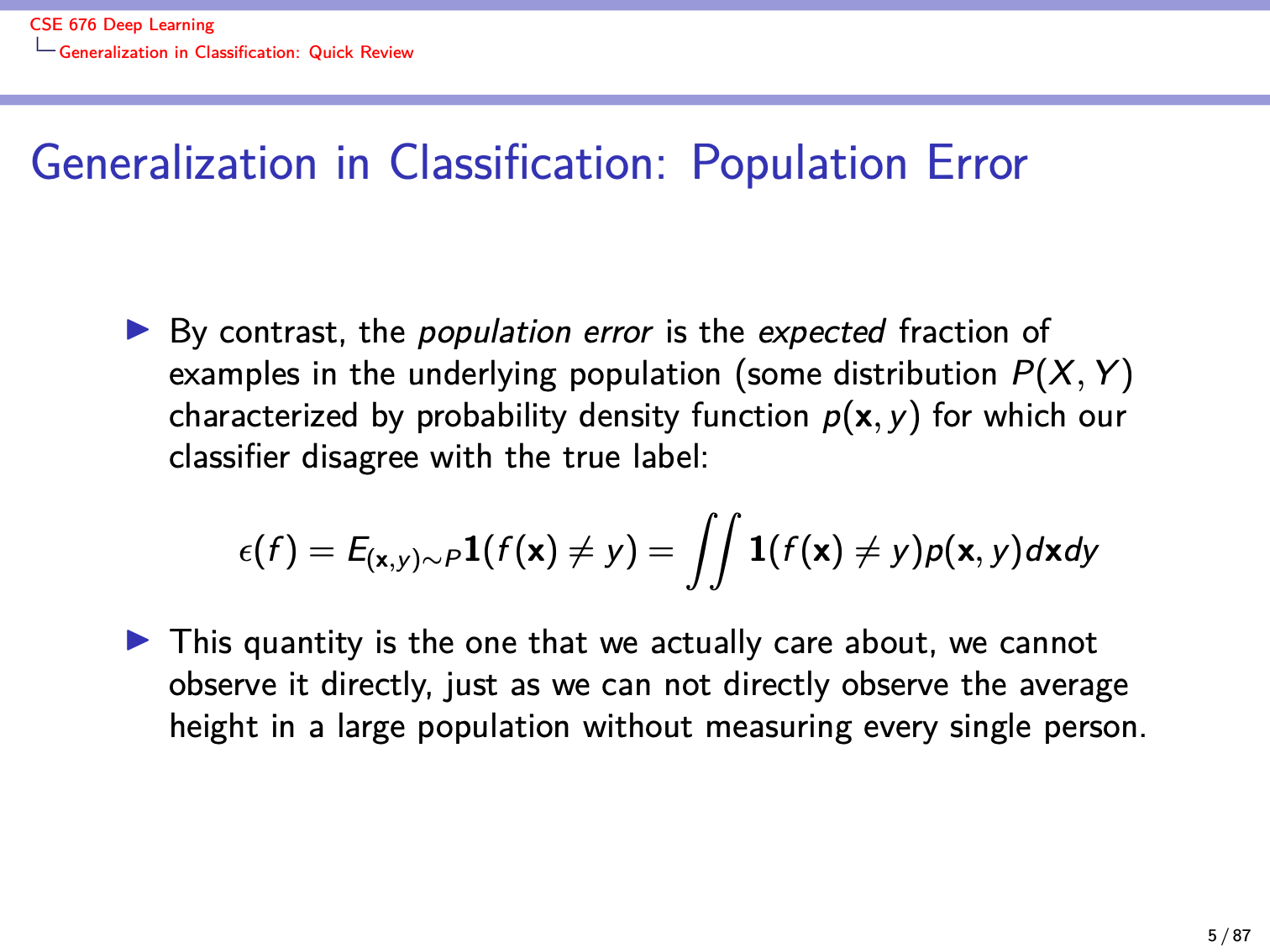

Slide 5

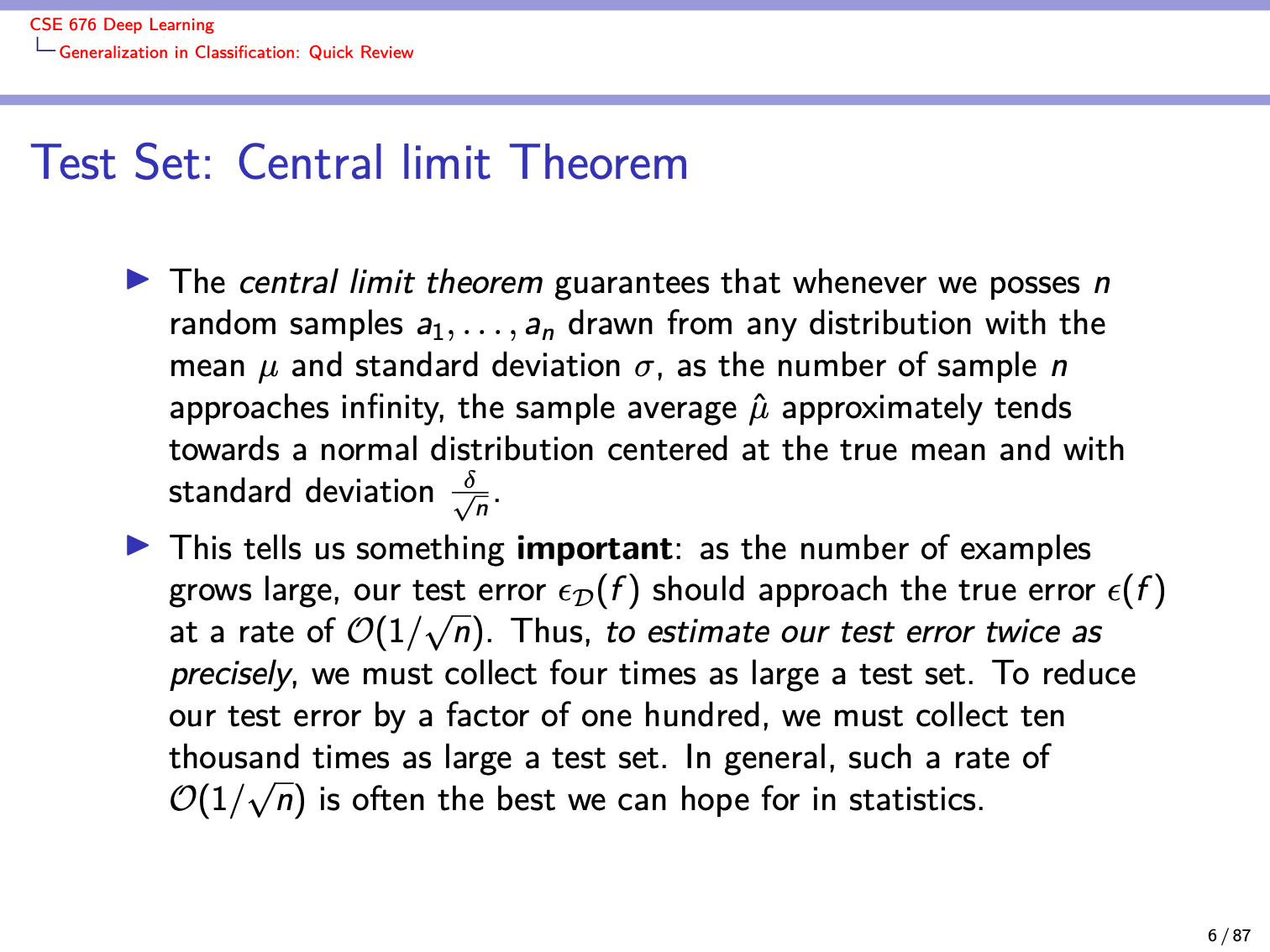

Slide 6

Slide 7

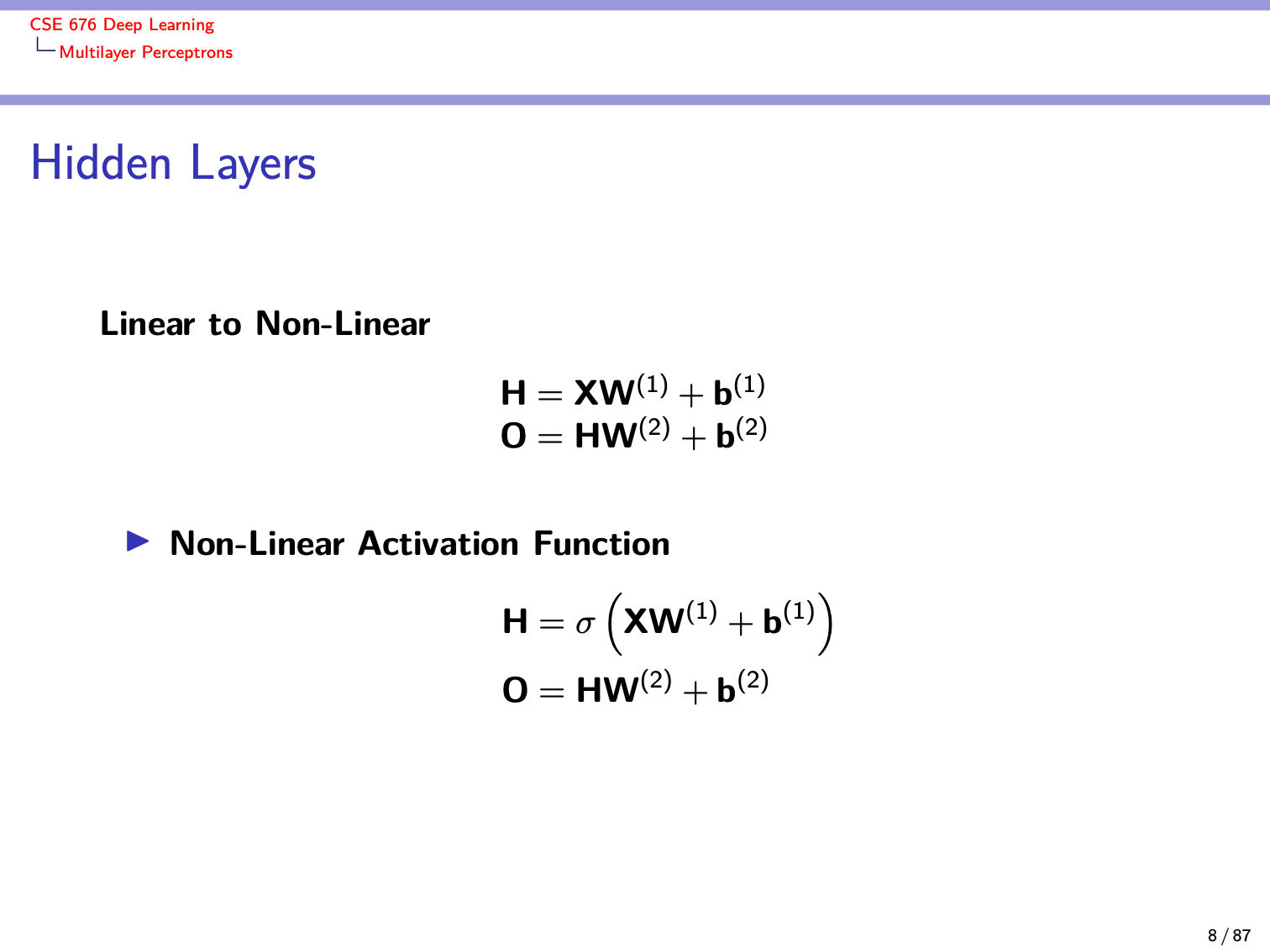

Slide 8

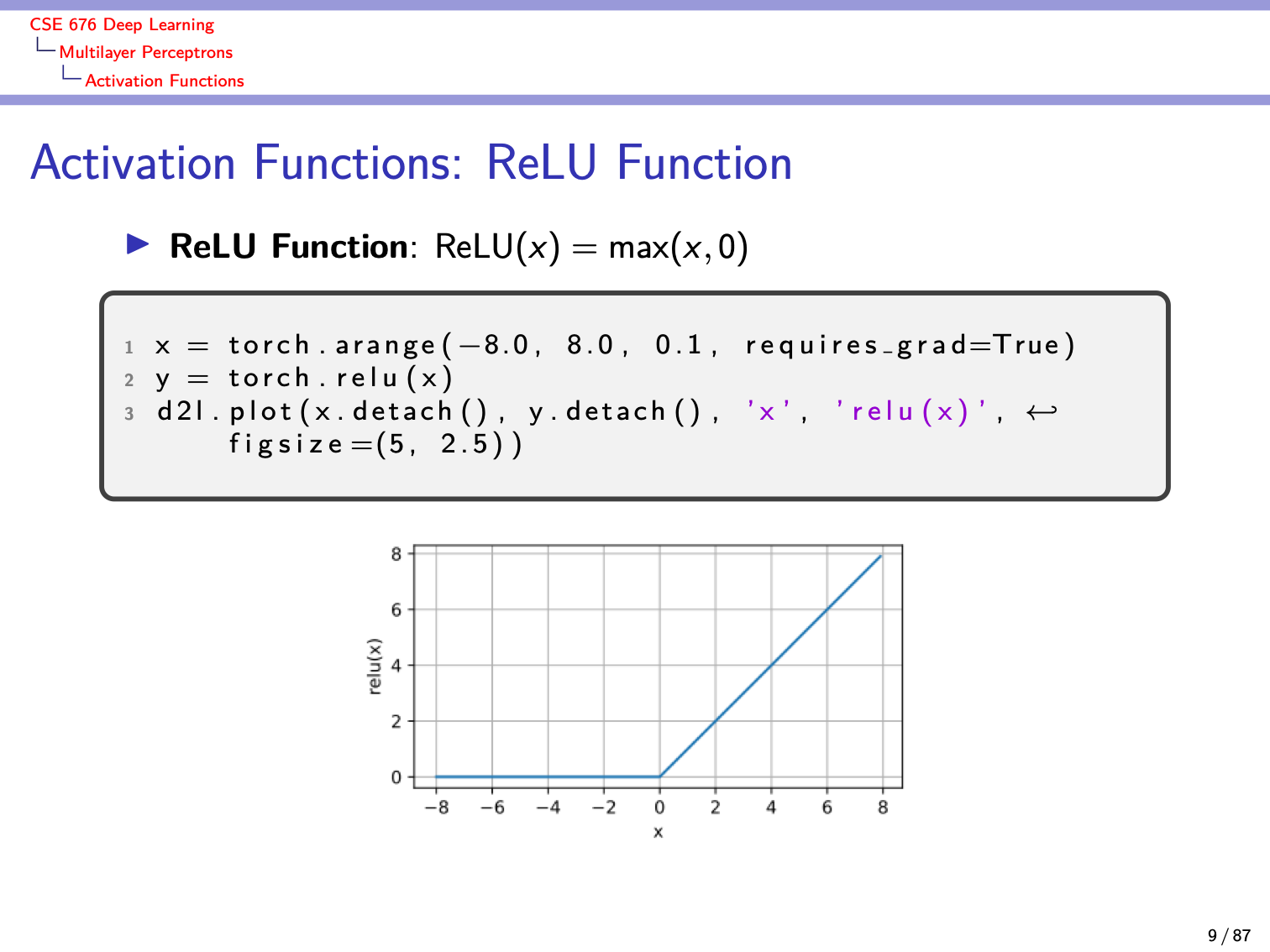

Slide 9

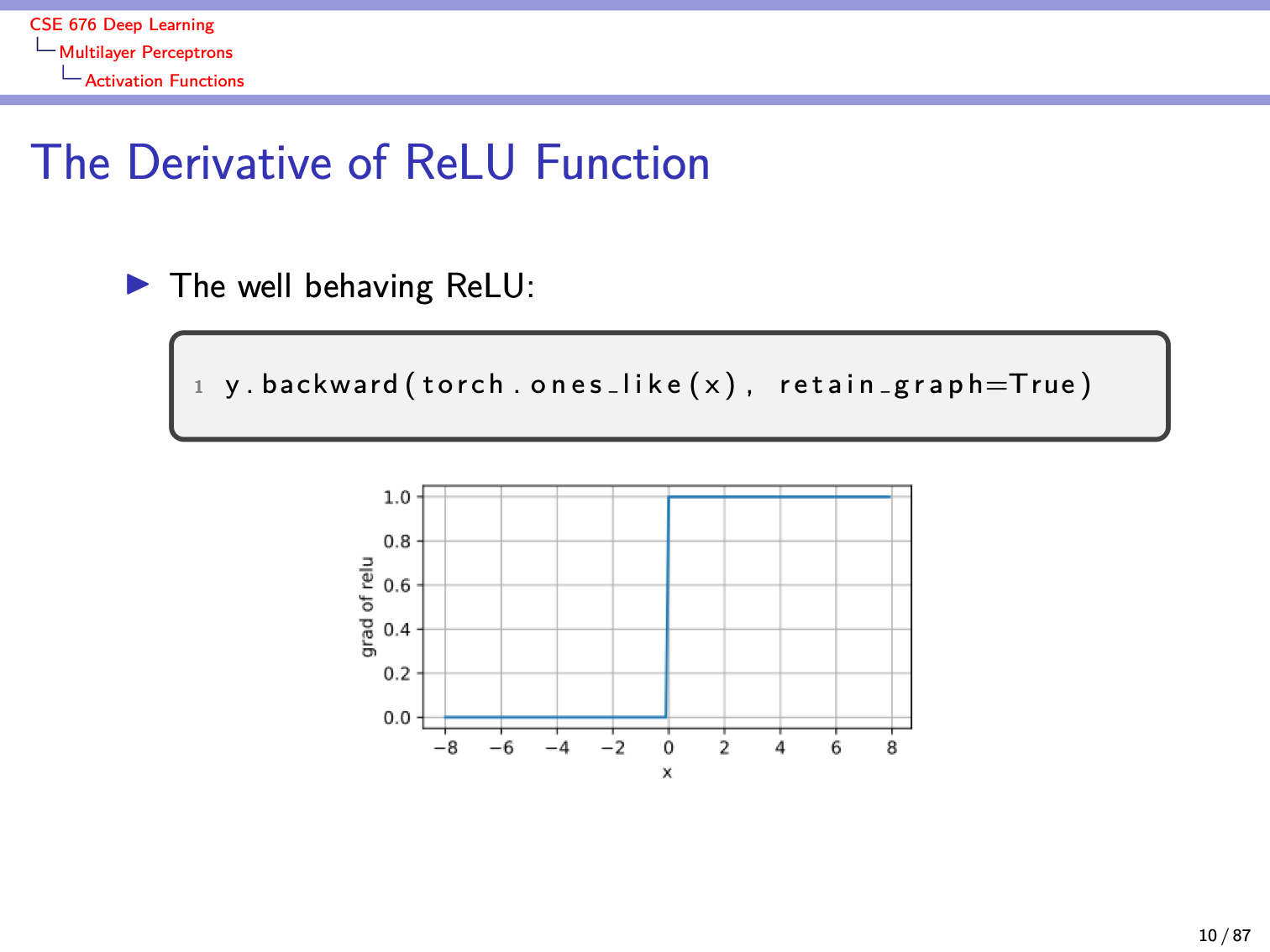

Slide 10

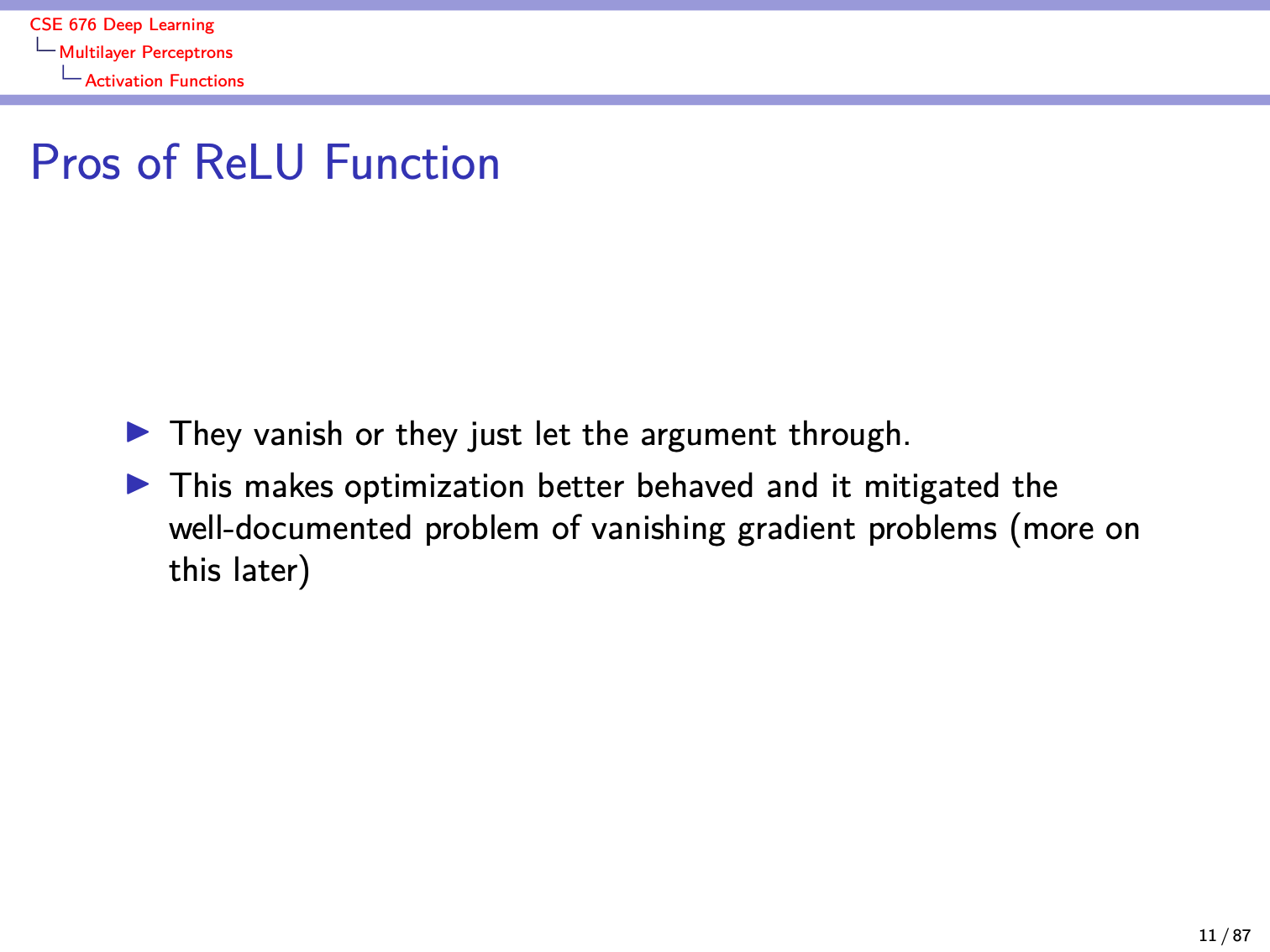

Slide 11

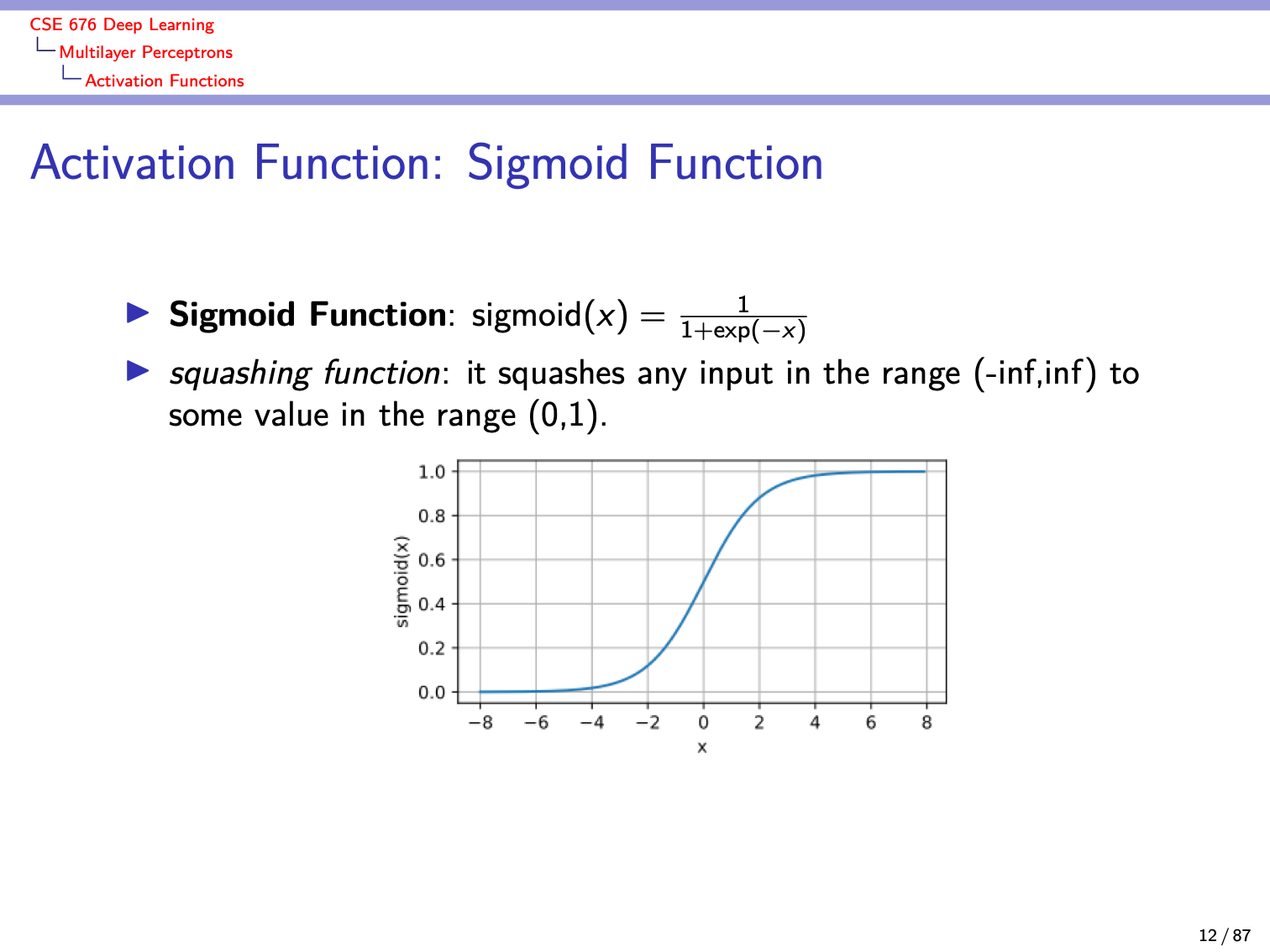

Slide 12

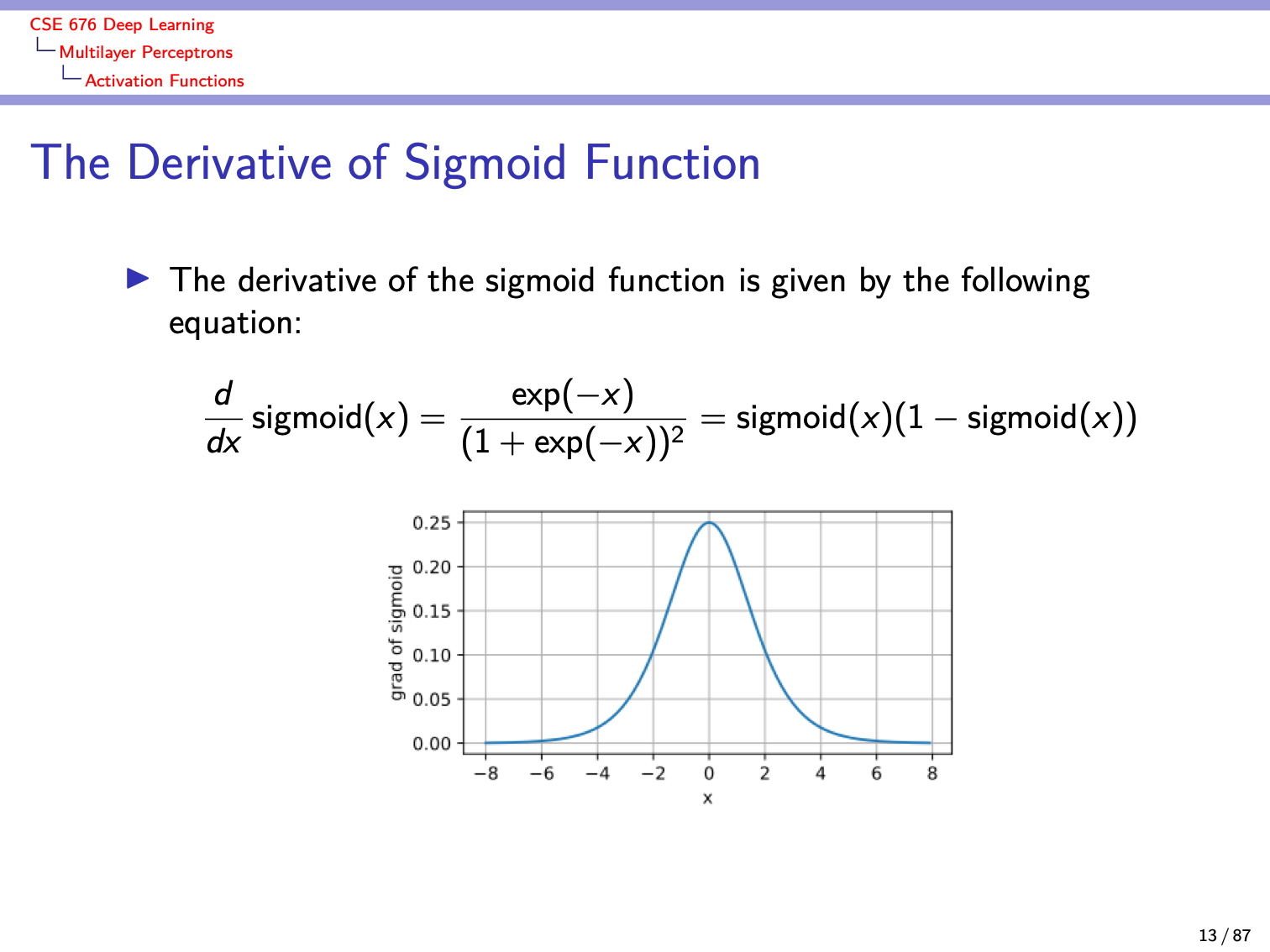

Slide 13

Slide 14

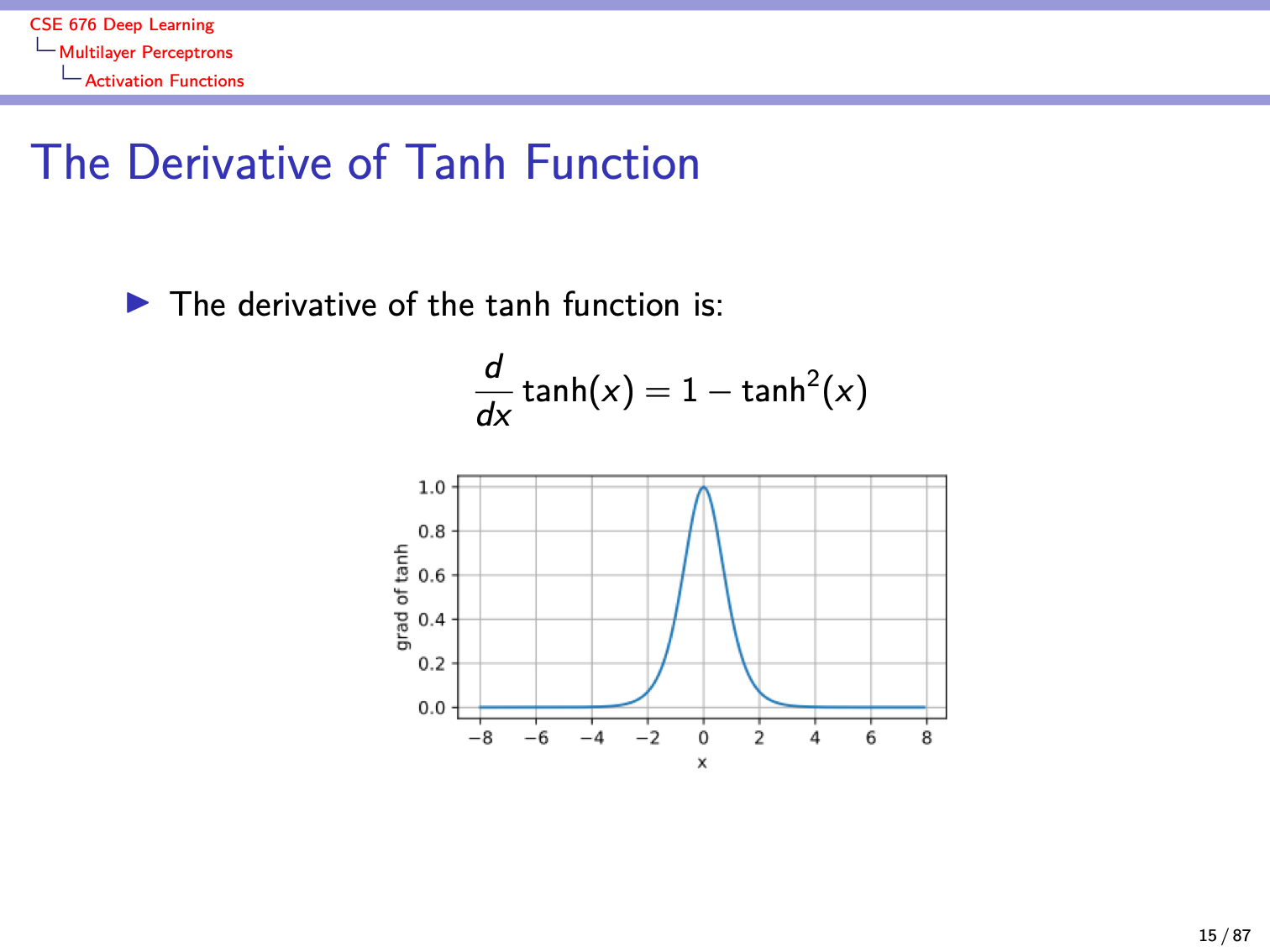

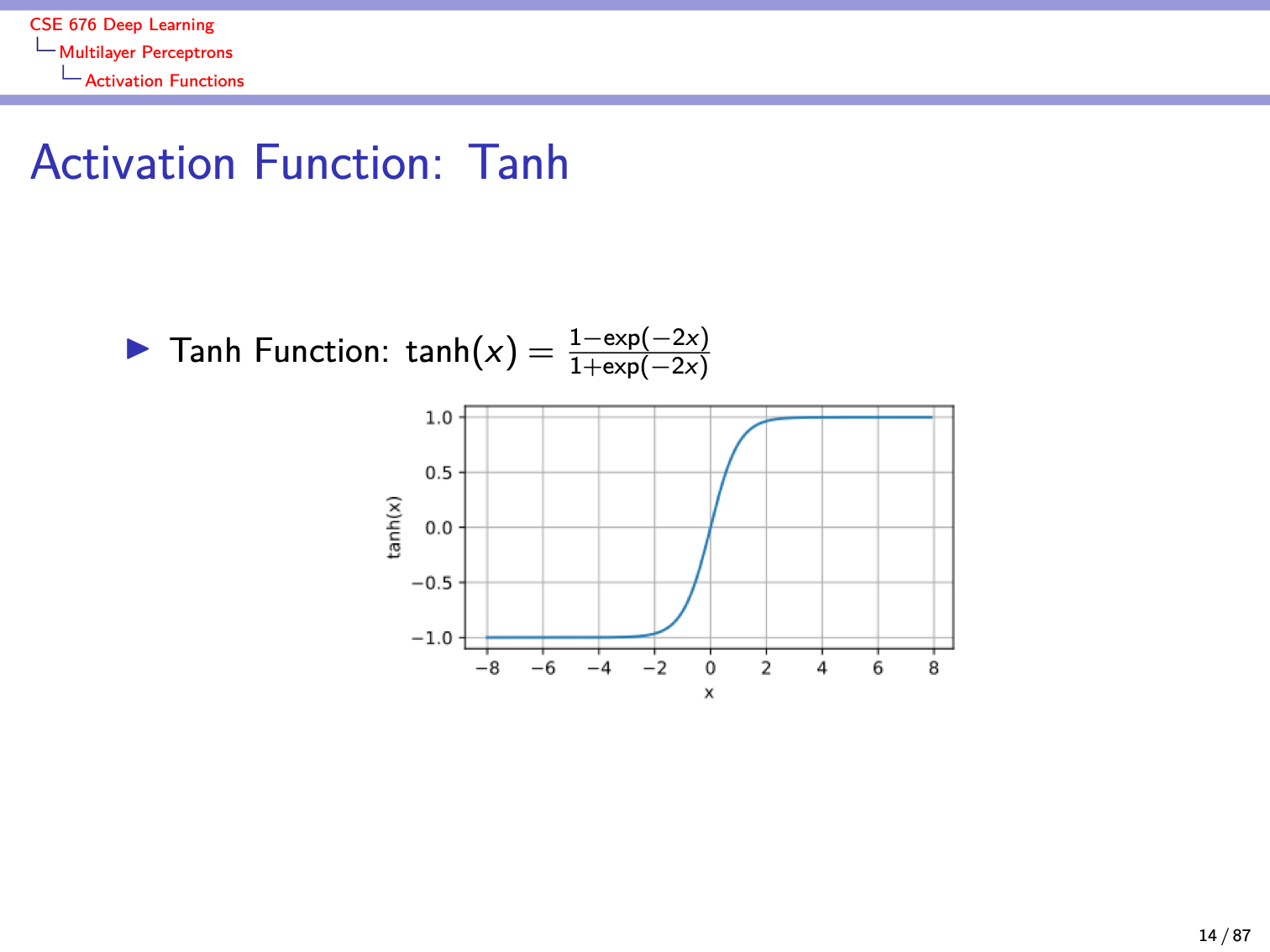

Slide 15

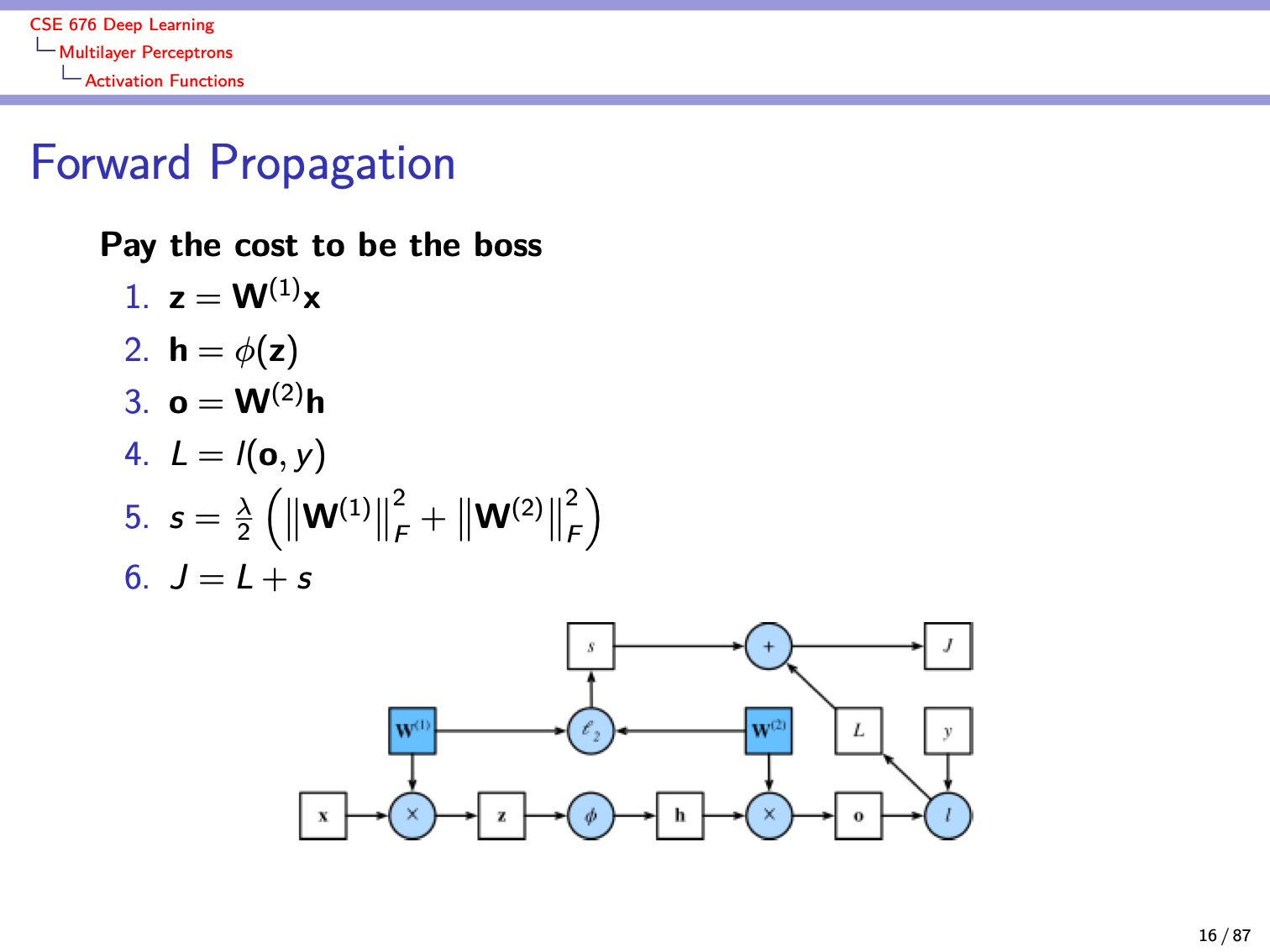

Slide 16

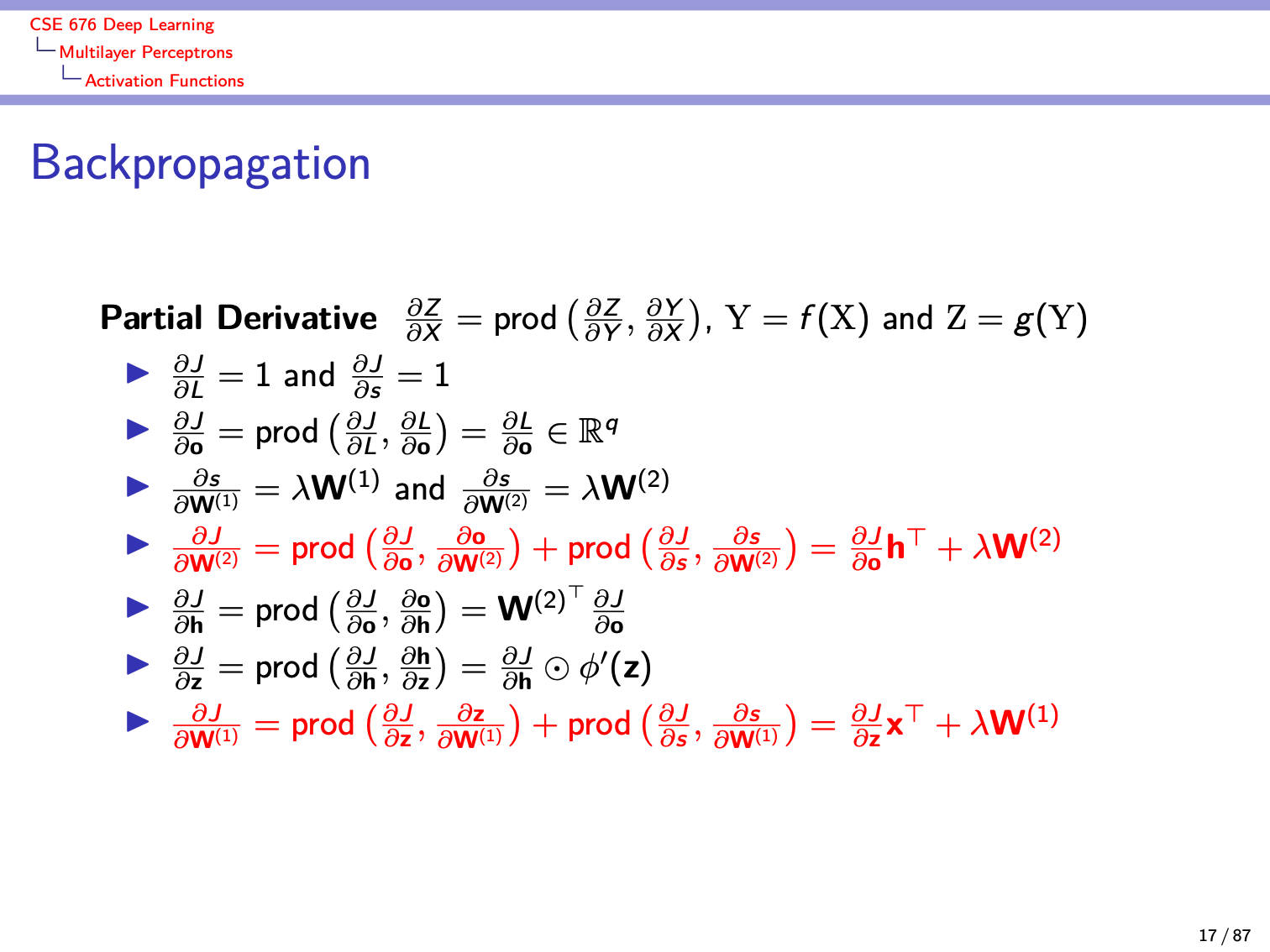

Slide 17

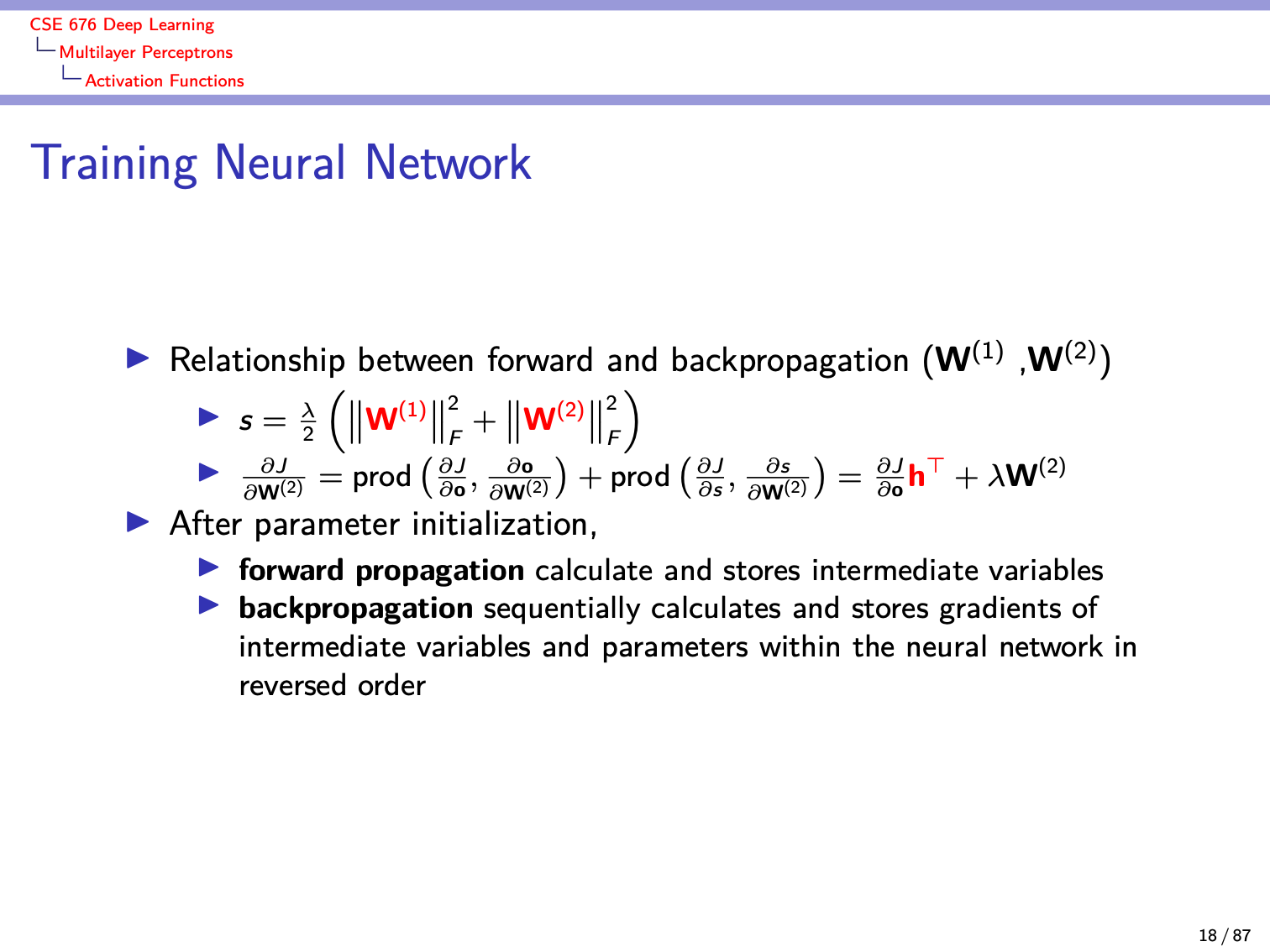

Slide 18

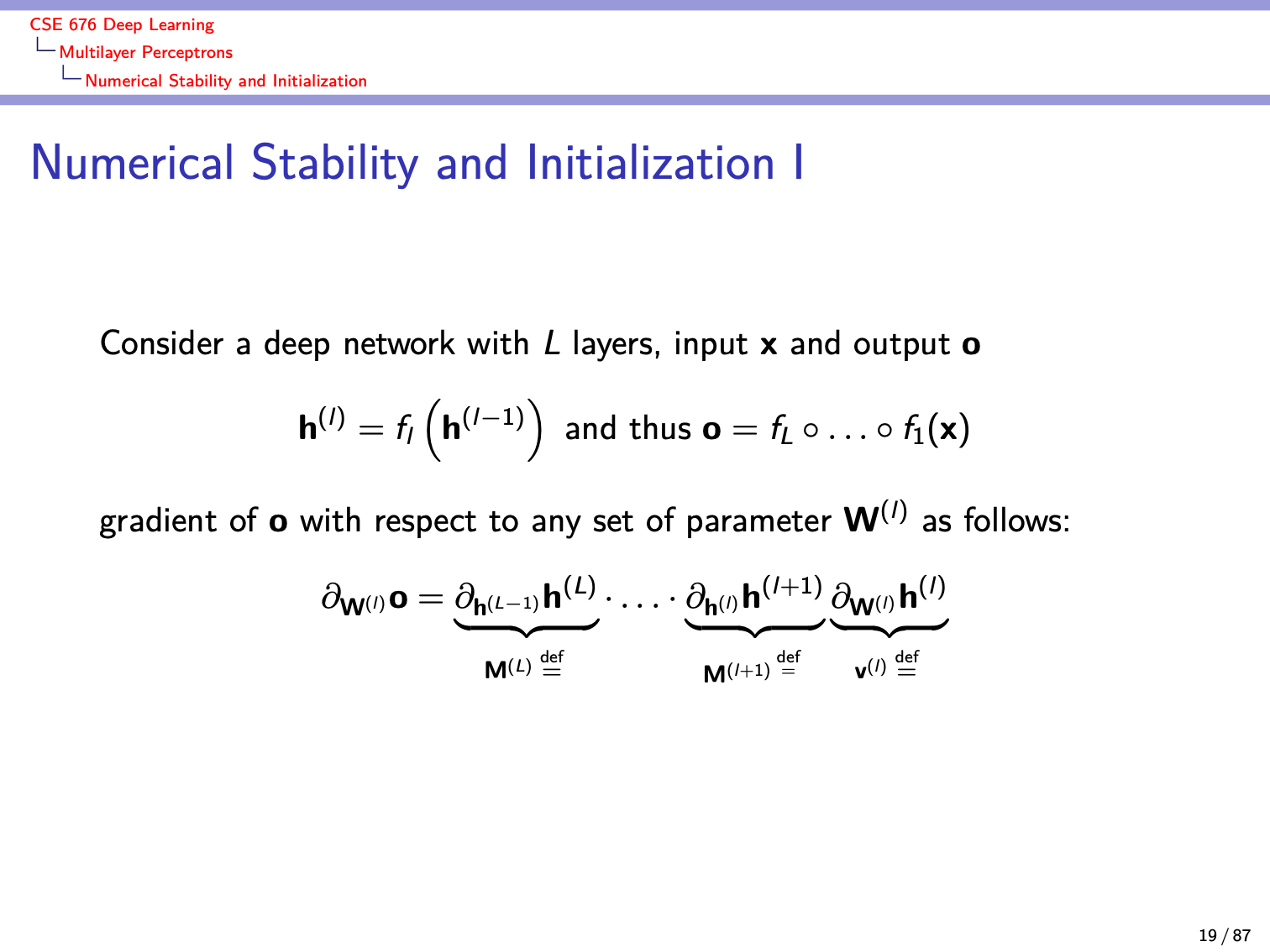

Slide 19

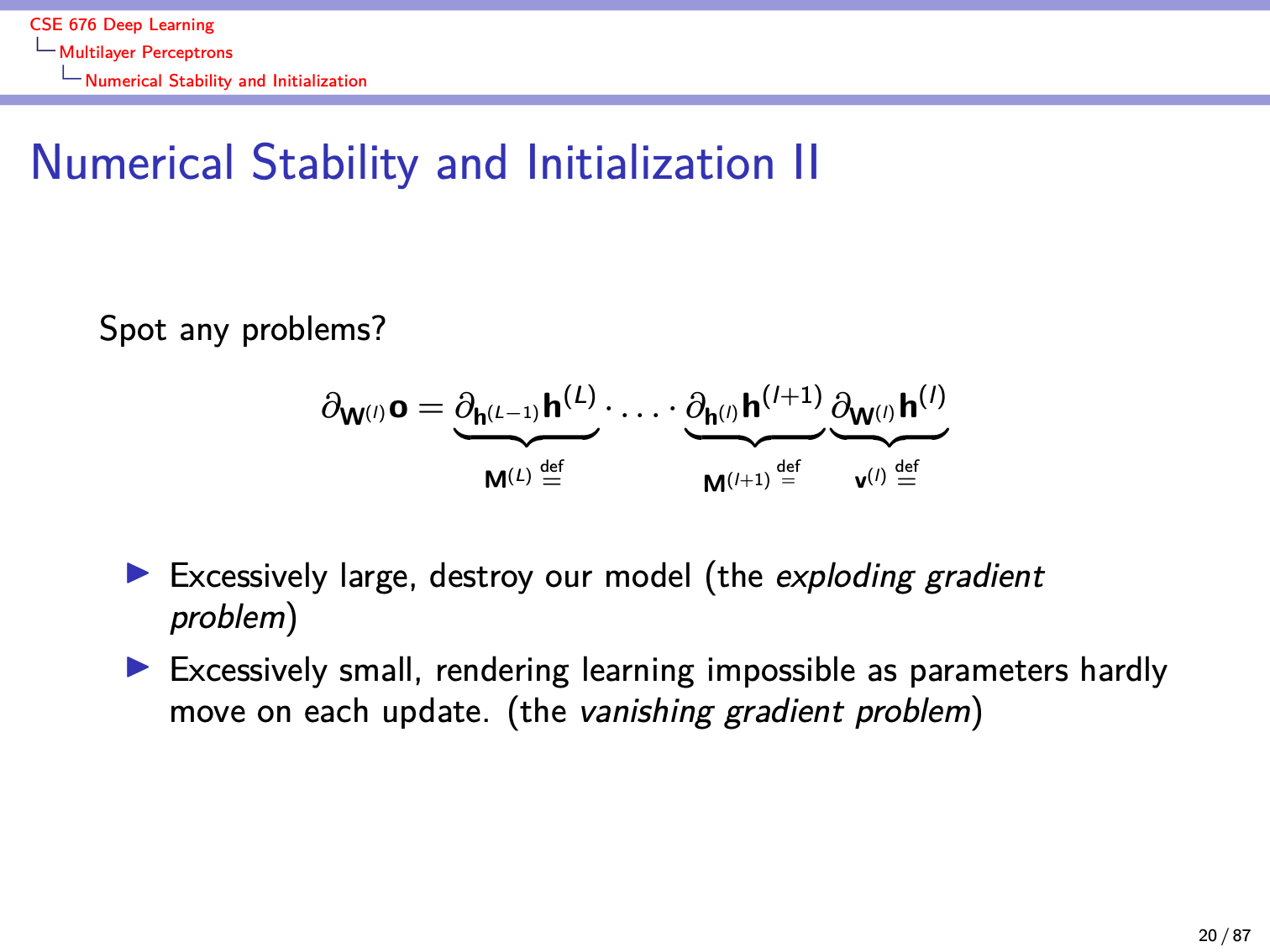

Slide 20

Slide 21

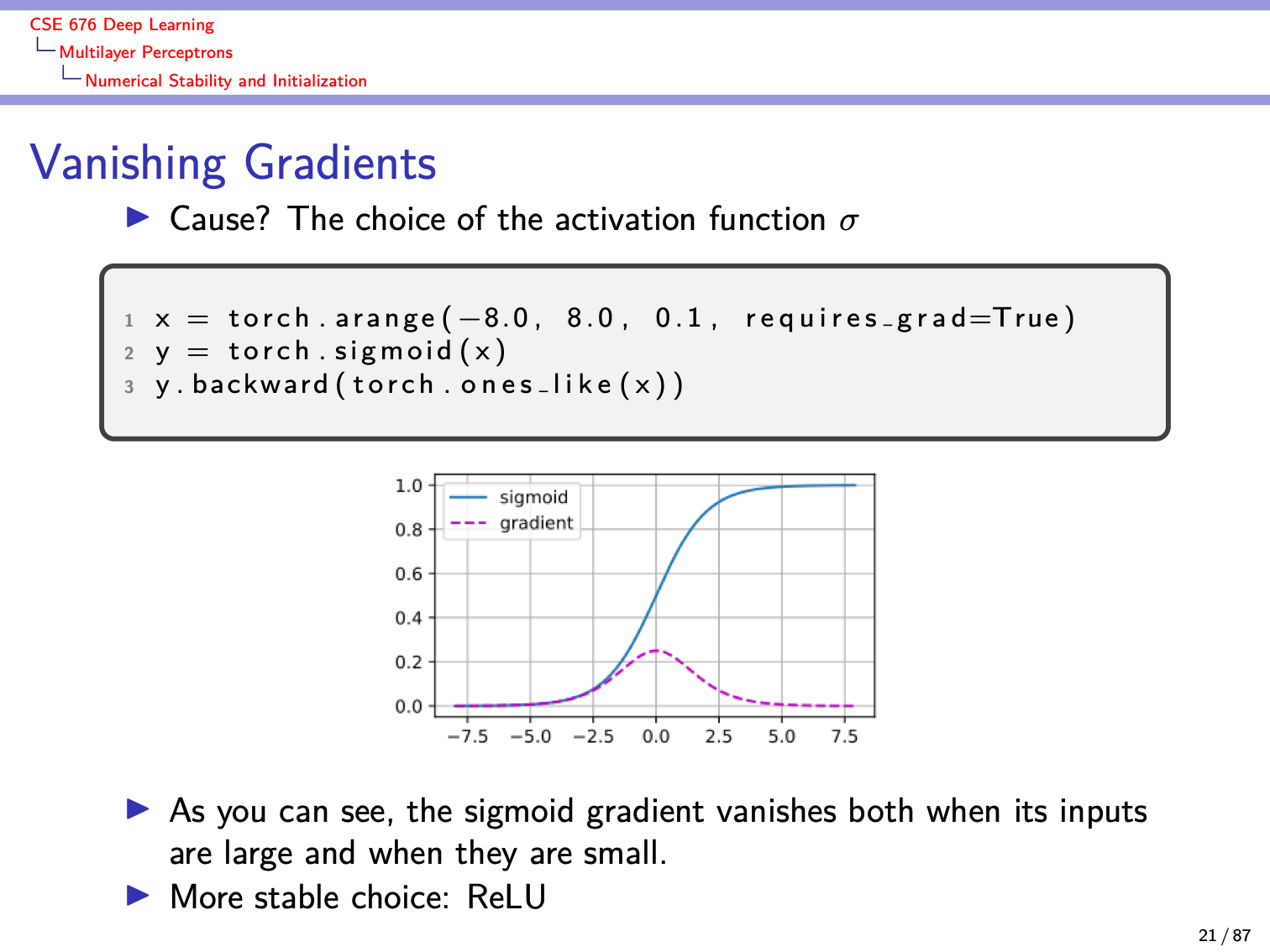

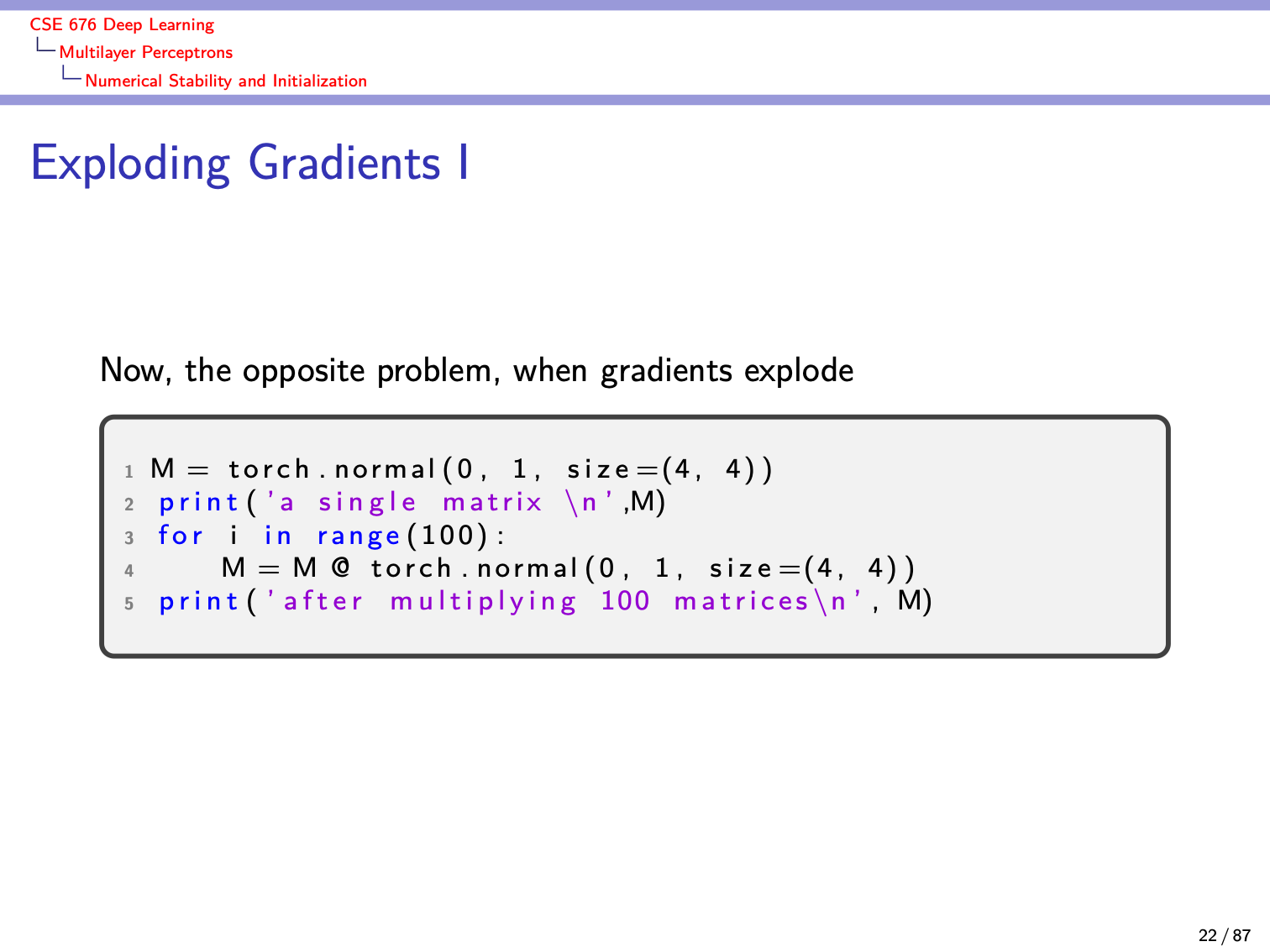

Slide 22

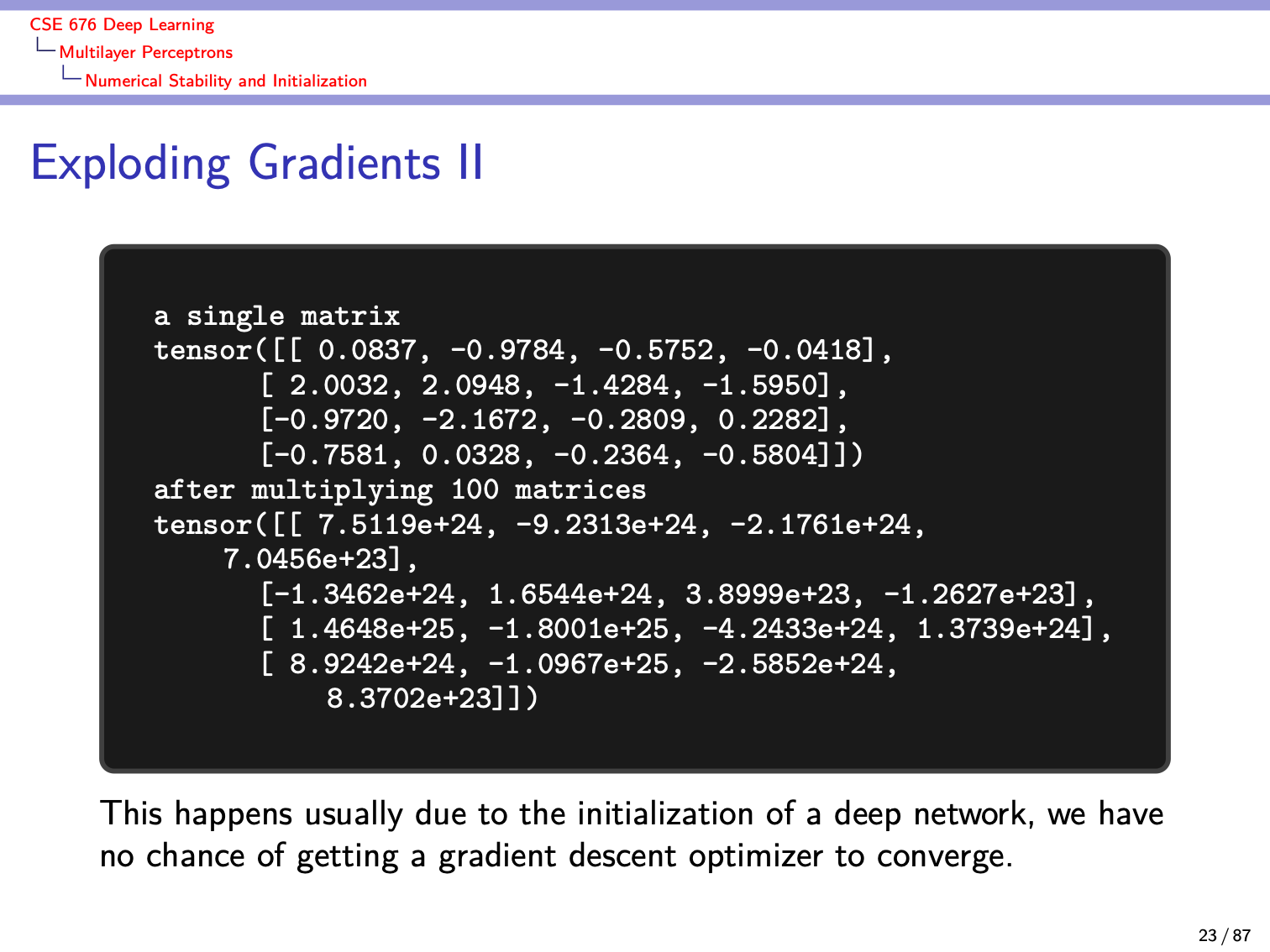

Slide 23

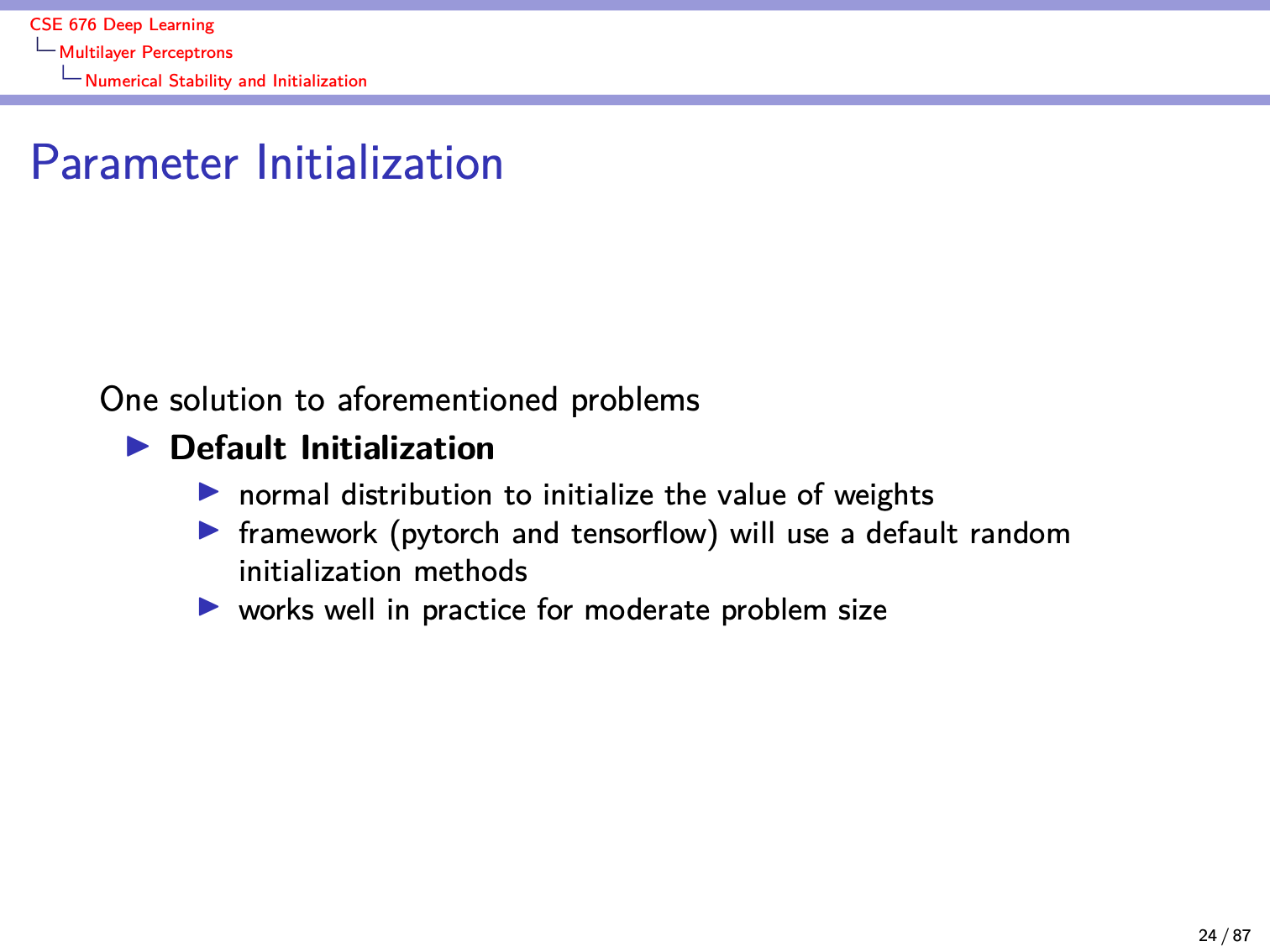

Slide 24

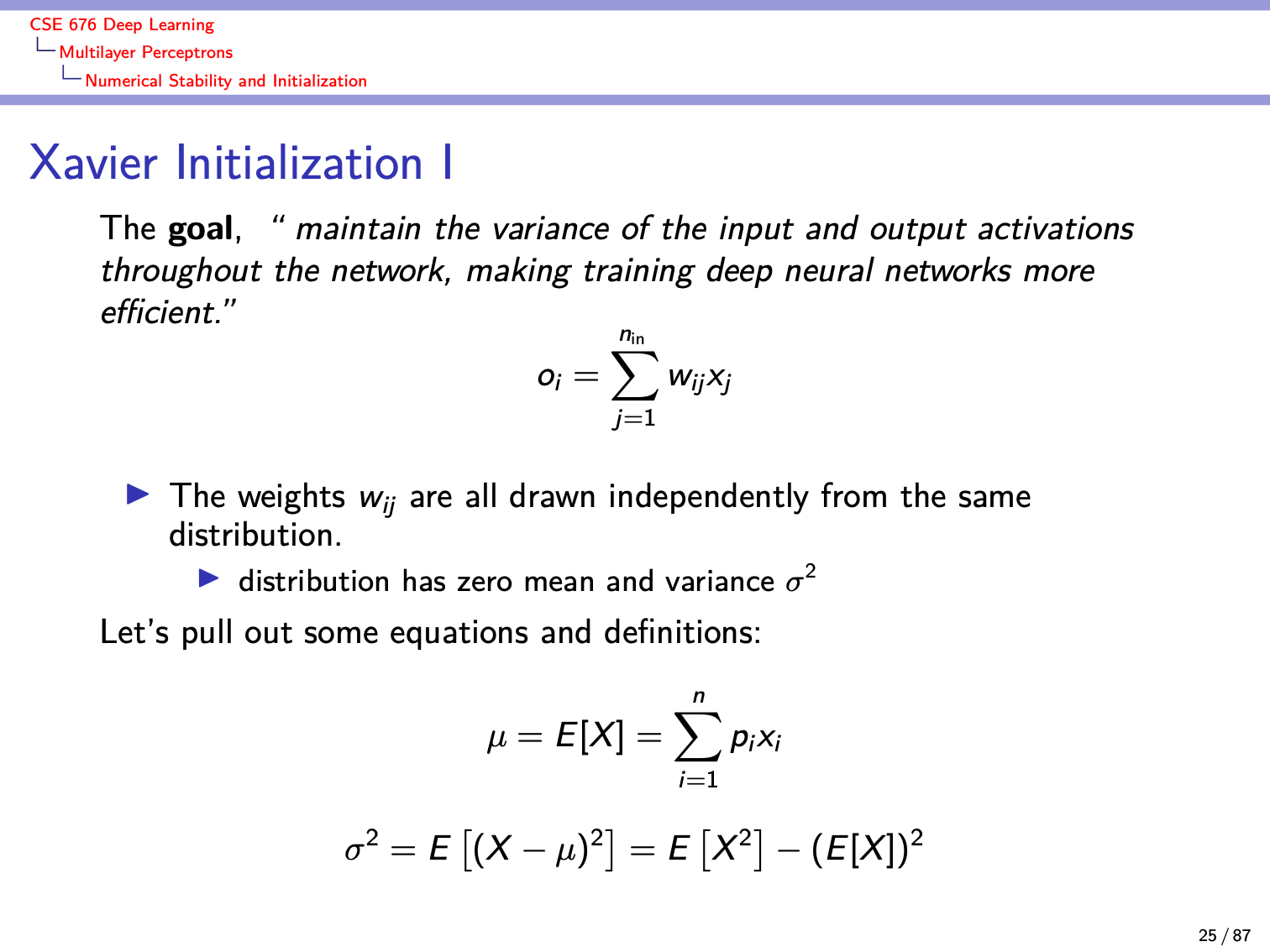

Slide 25

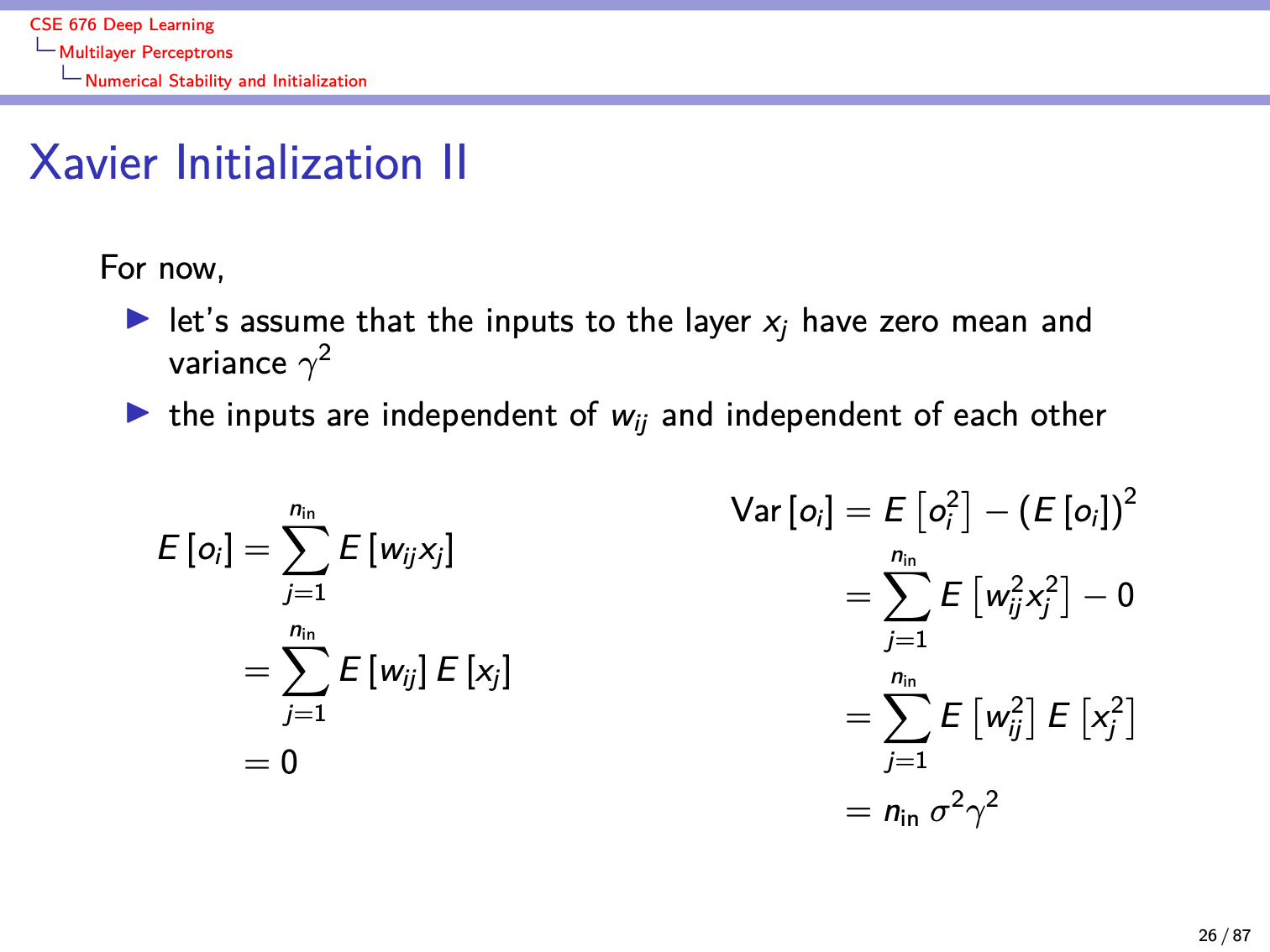

Slide 26

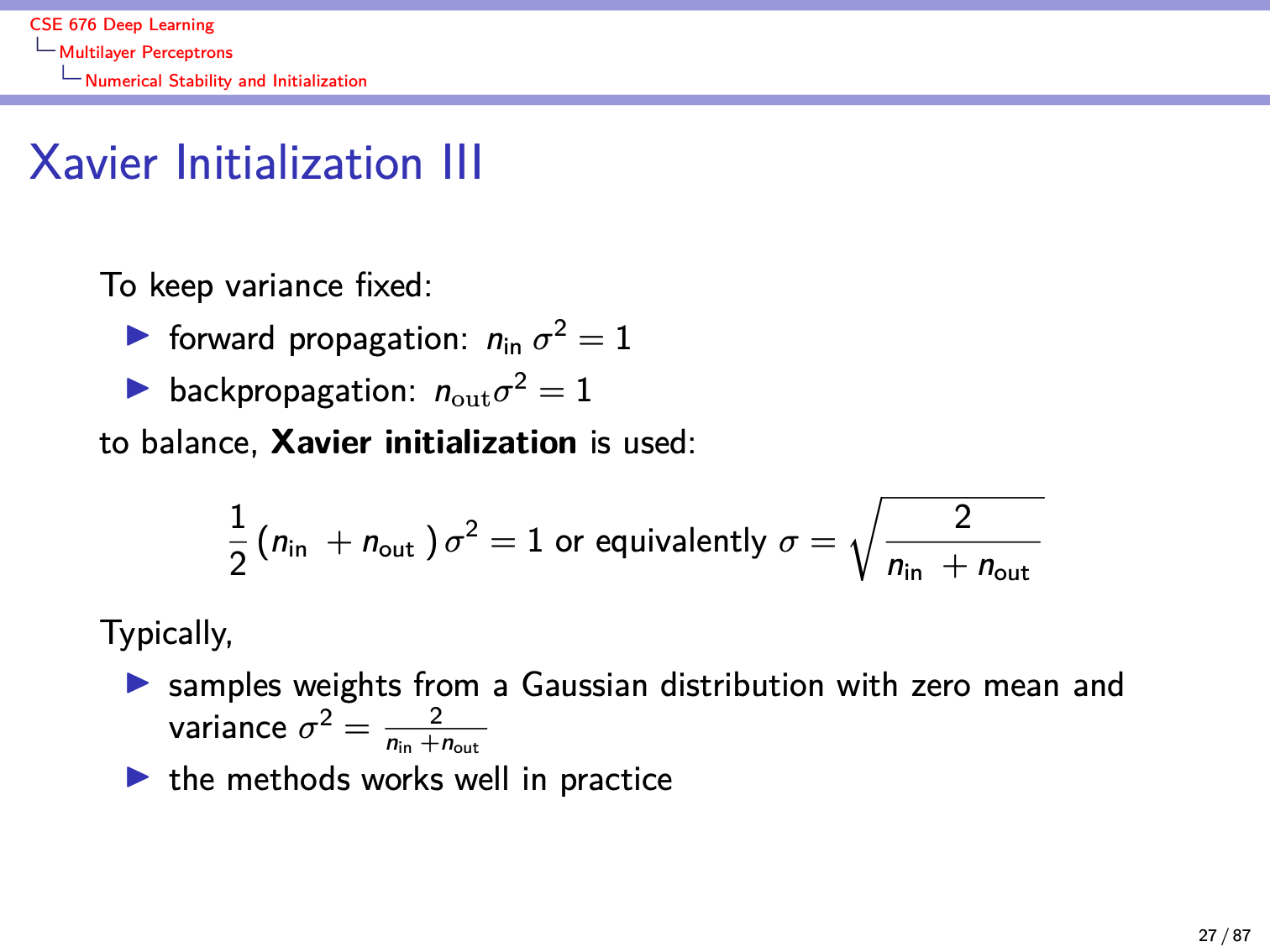

Slide 27

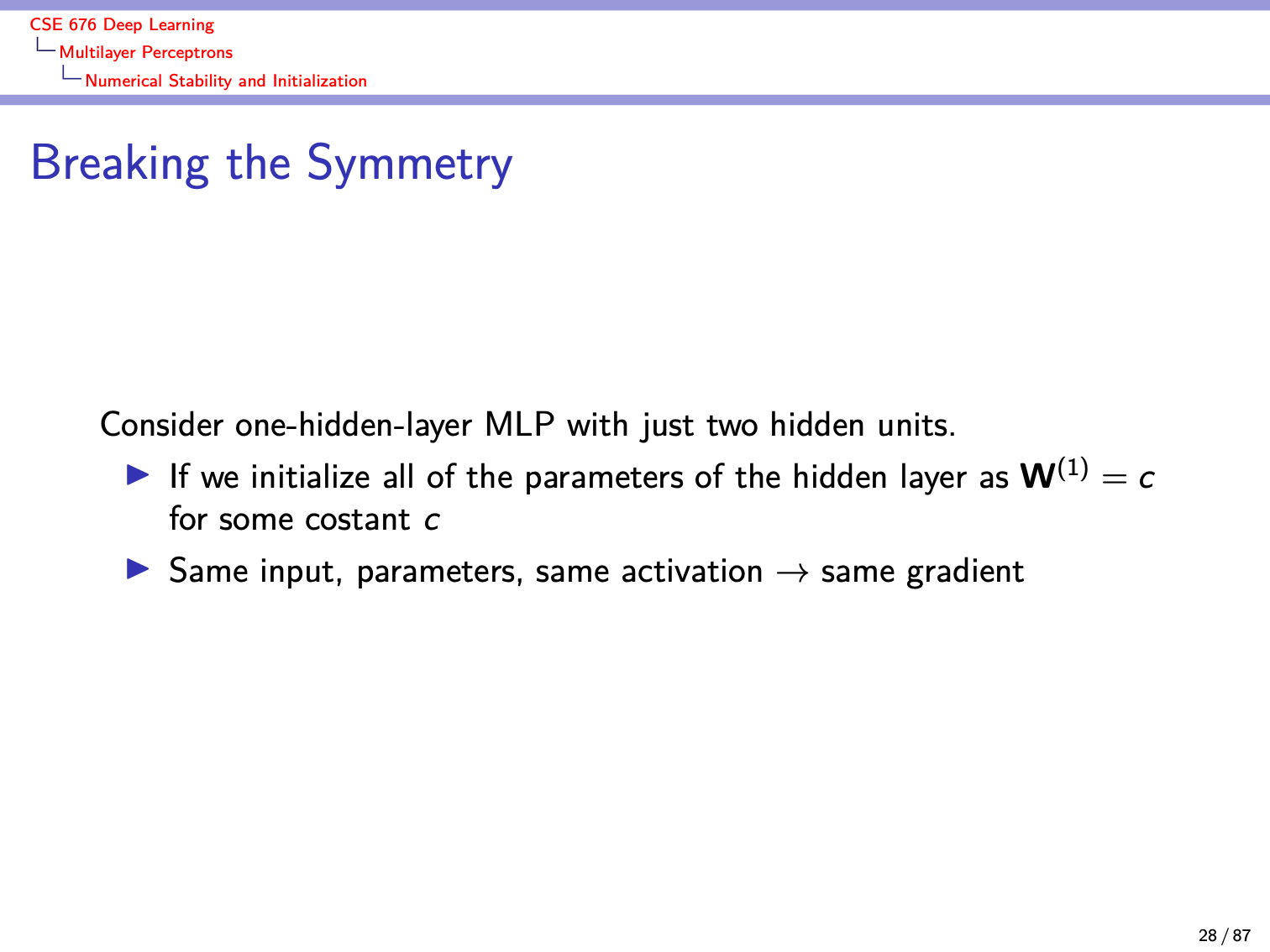

Slide 28

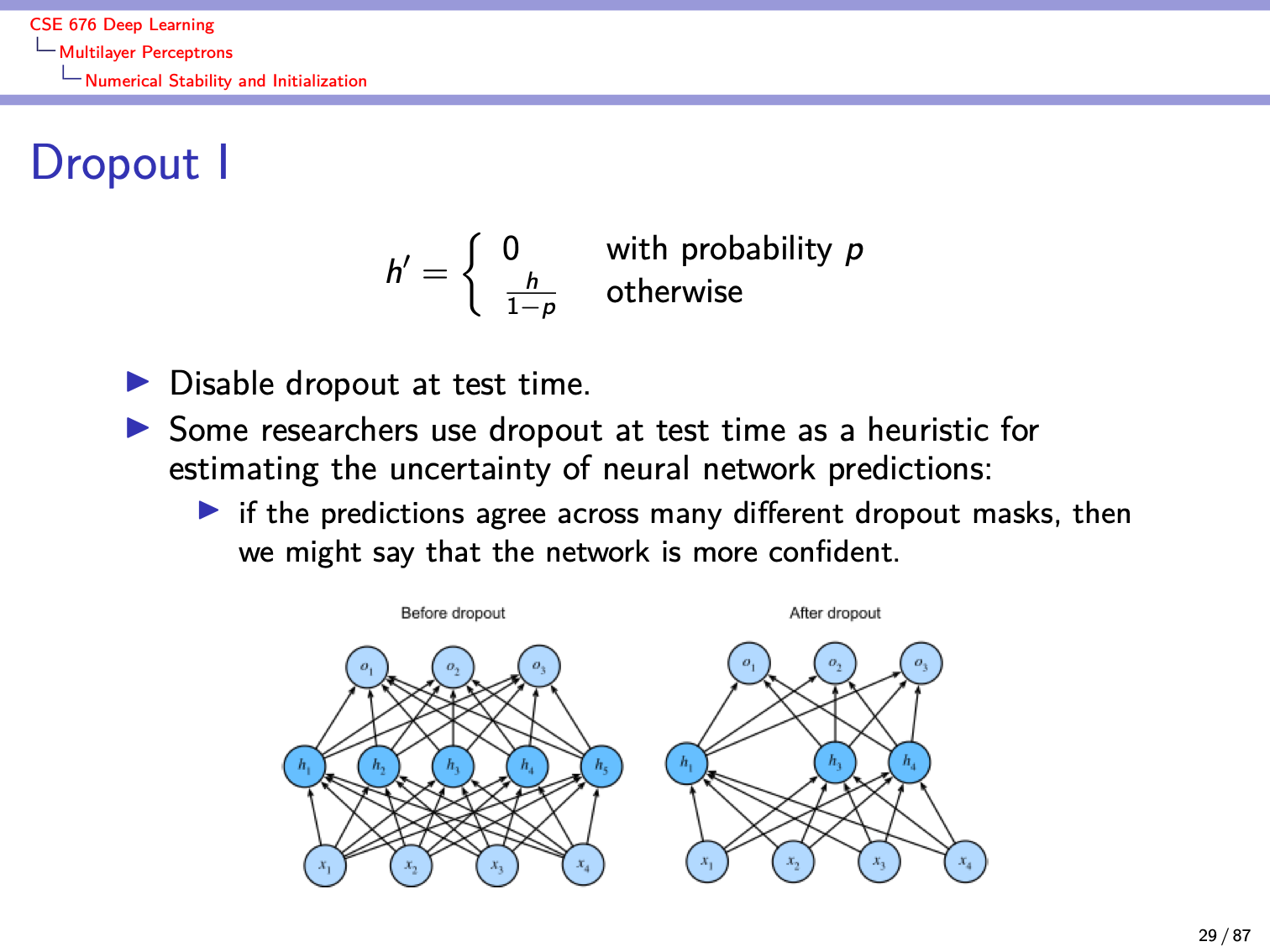

Slide 29

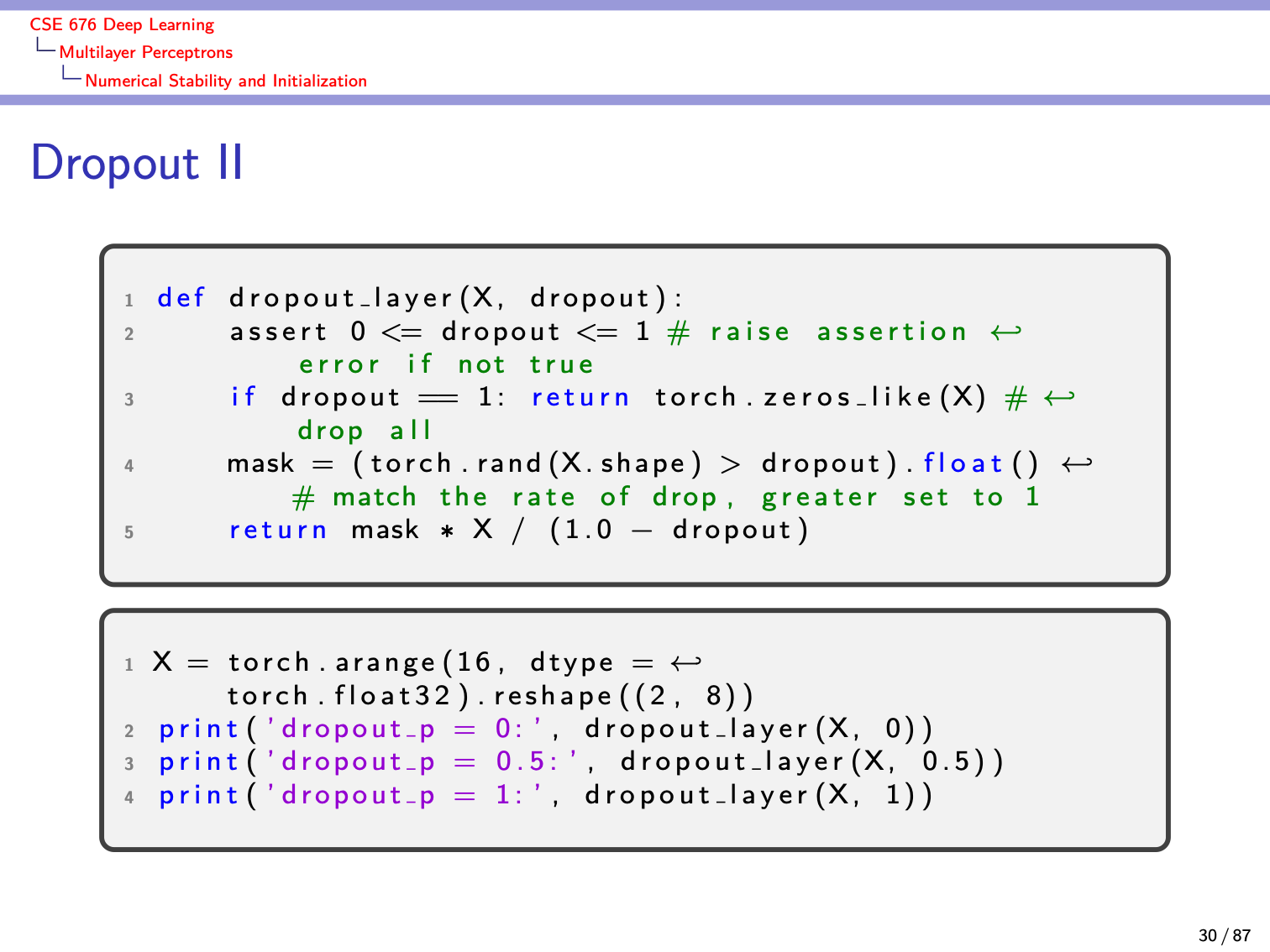

Slide 30

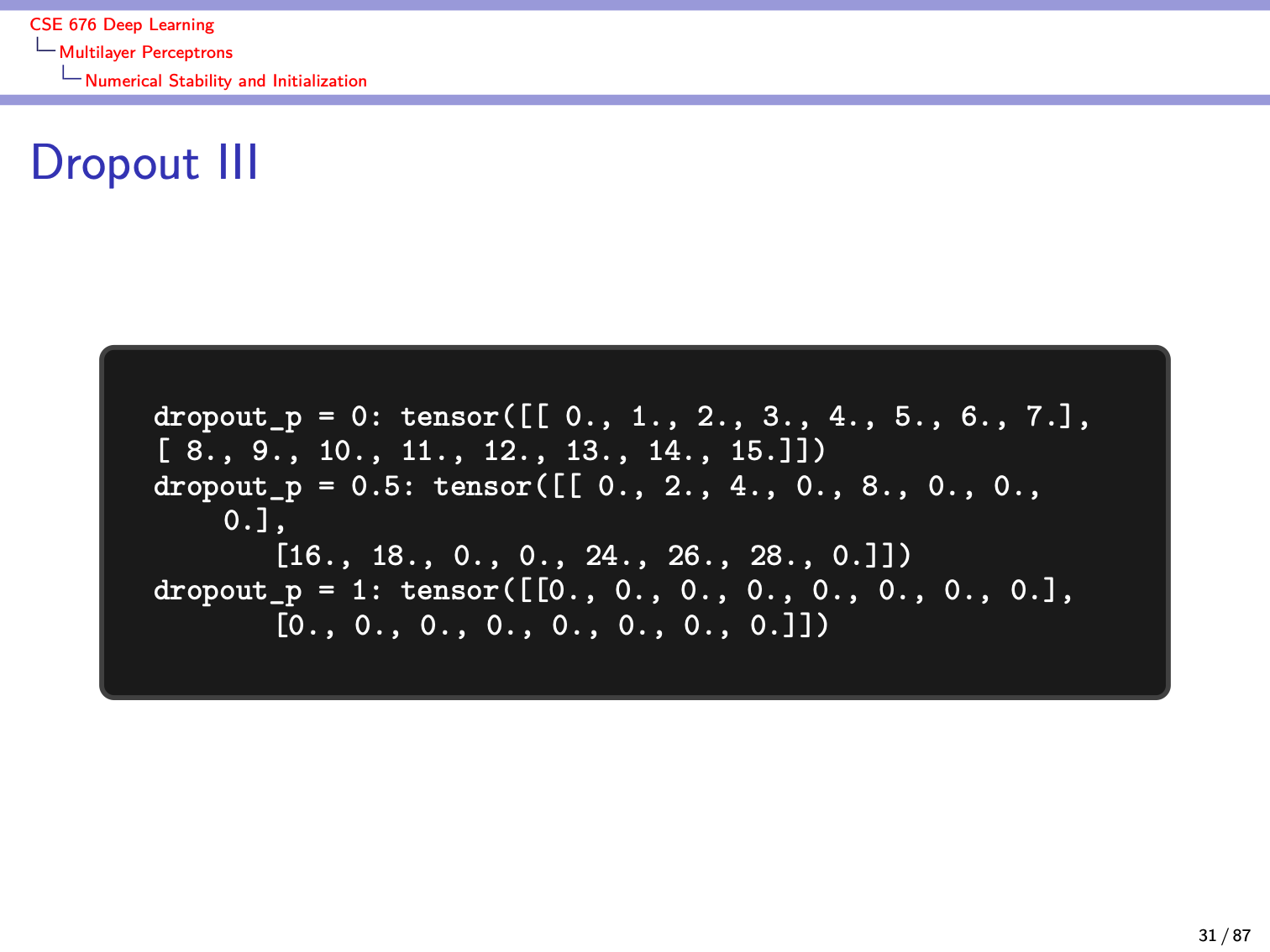

Slide 31

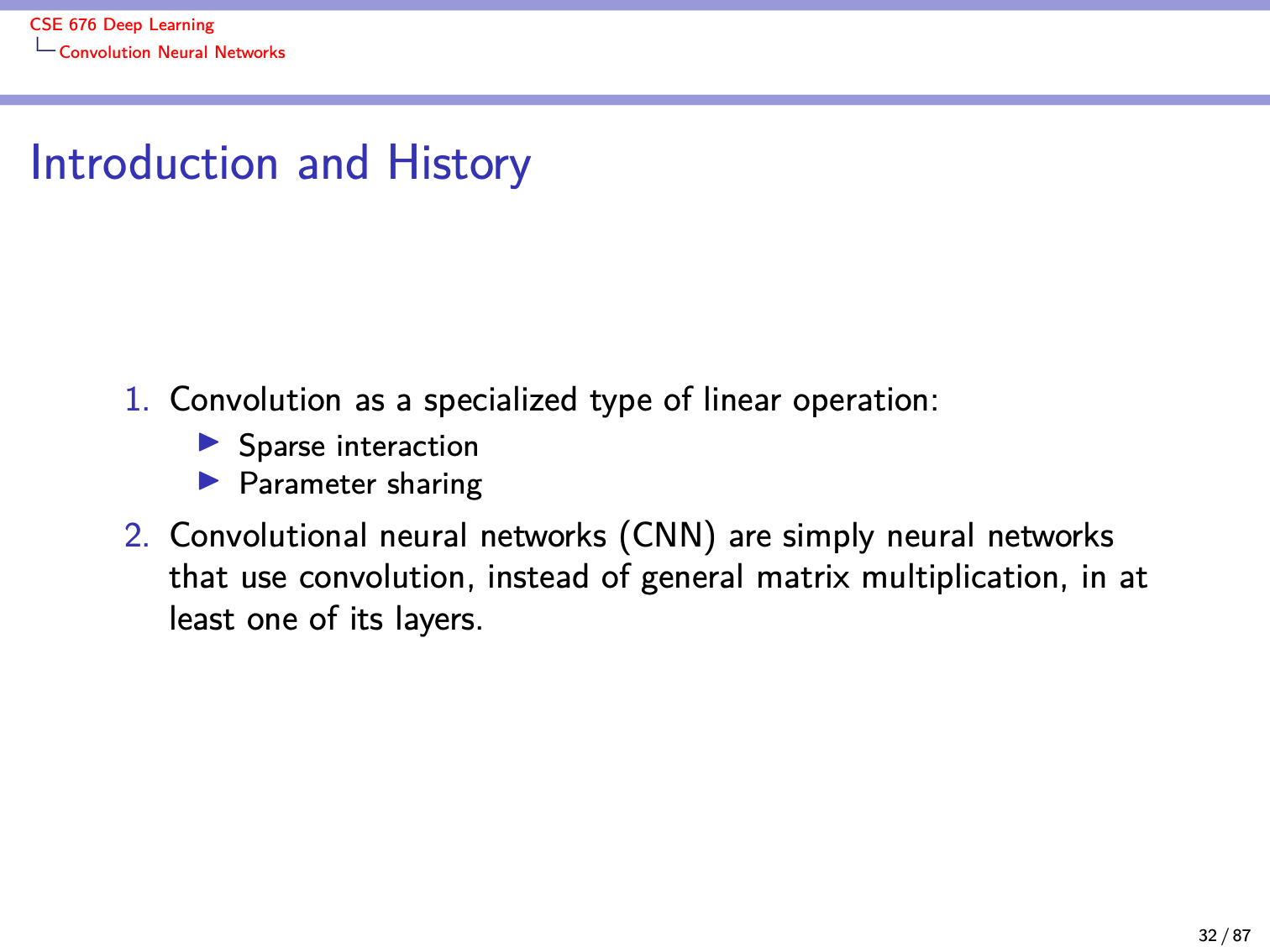

Slide 32

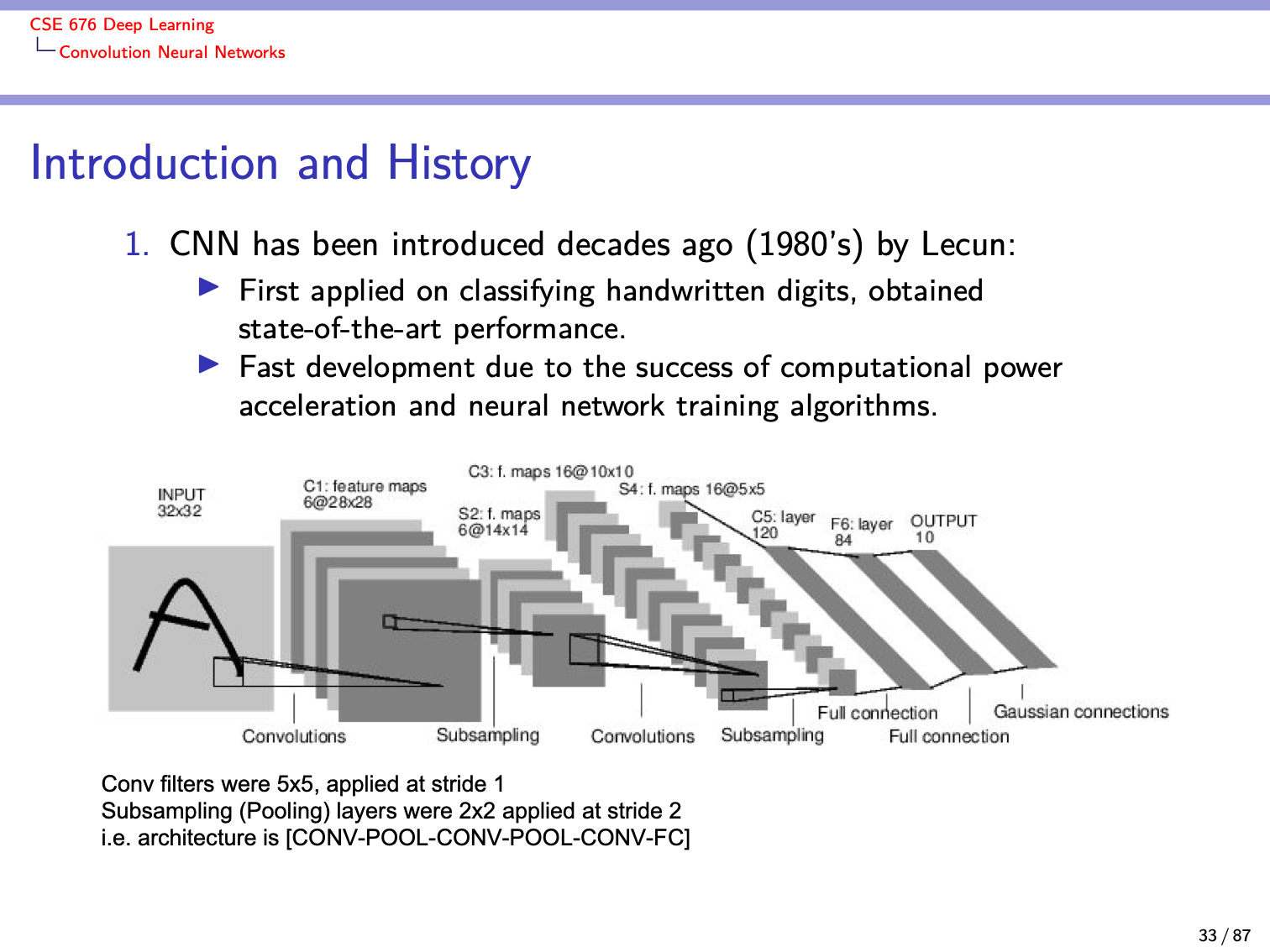

Slide 33

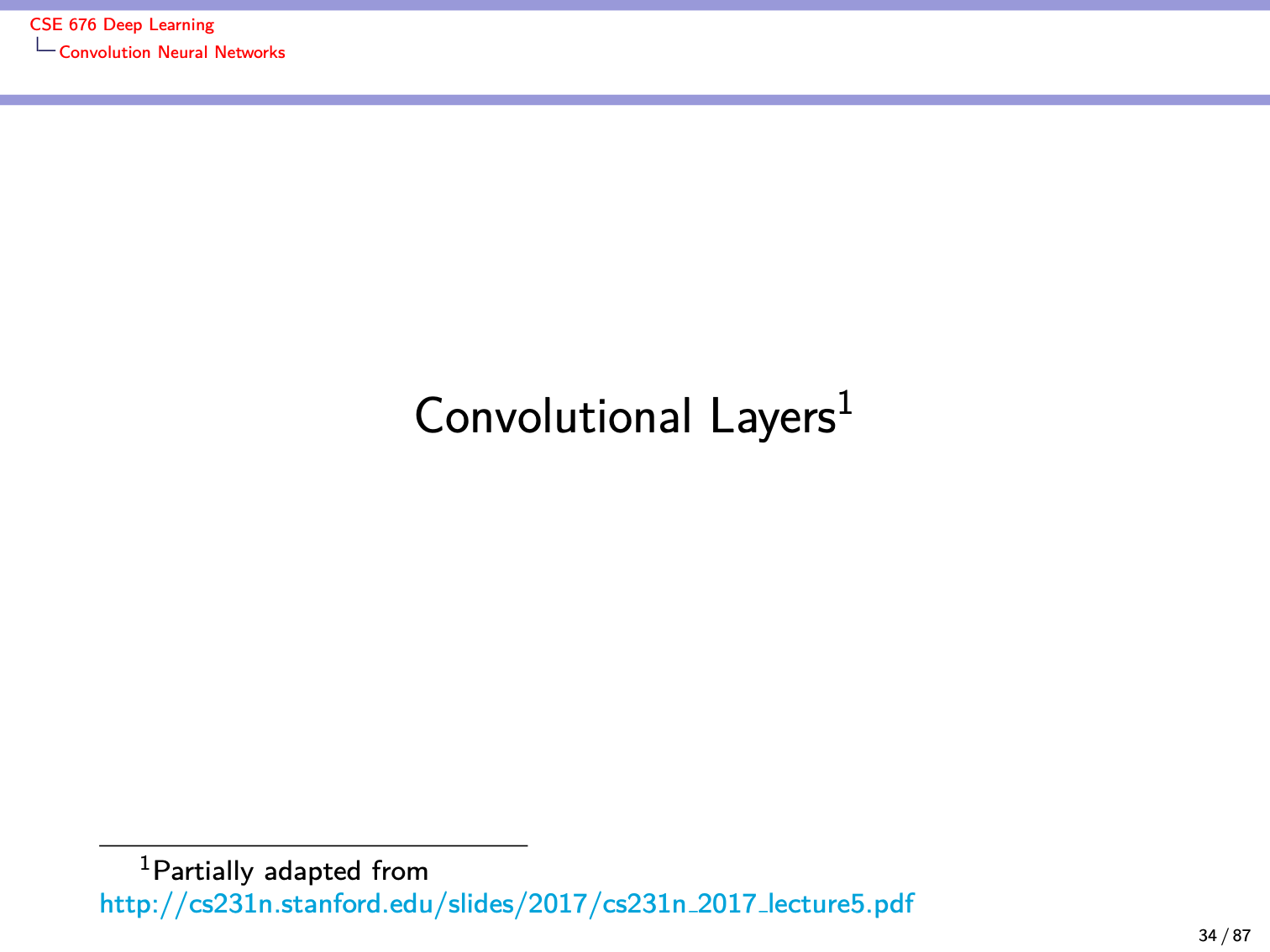

Slide 34

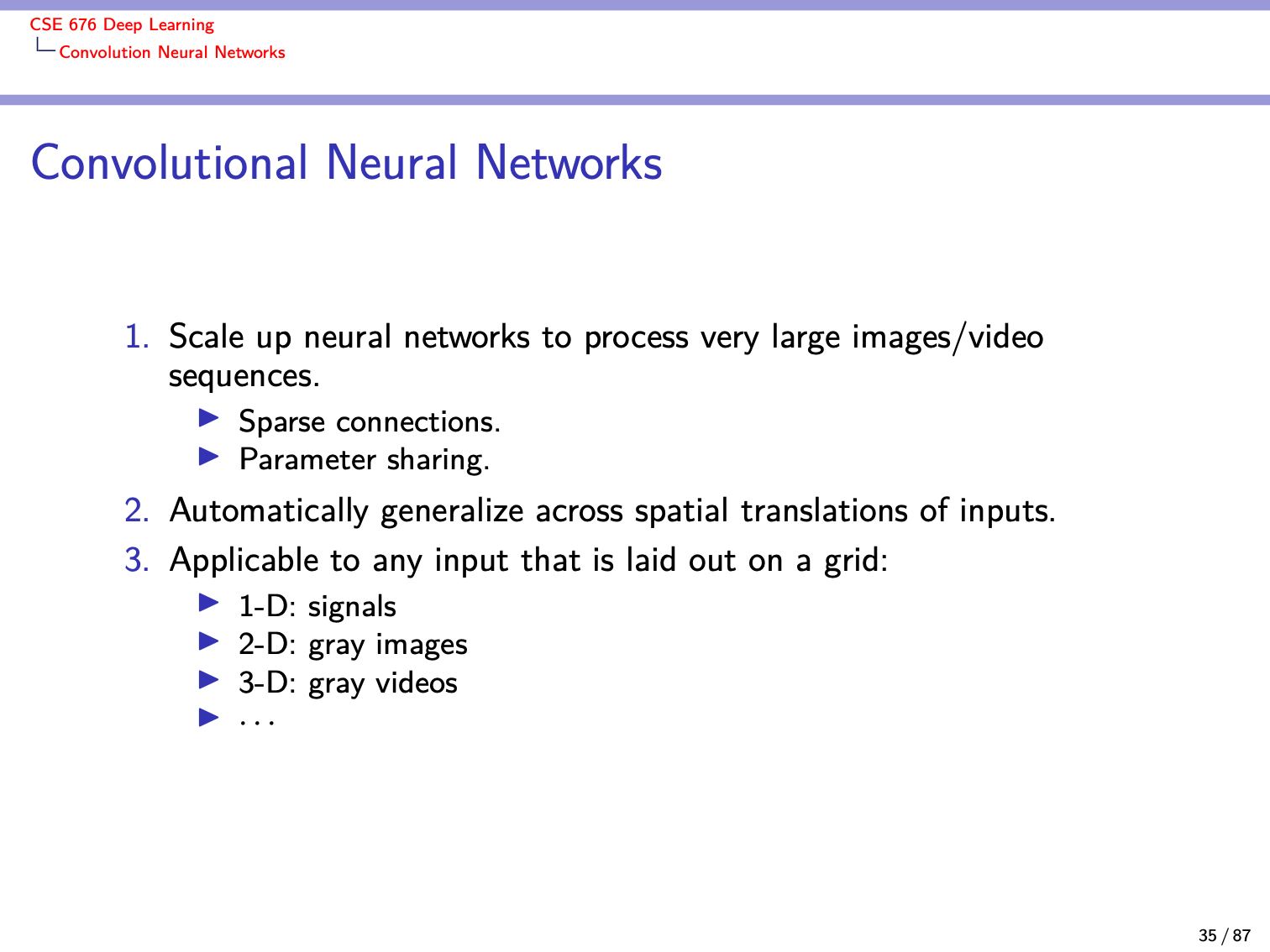

Slide 35

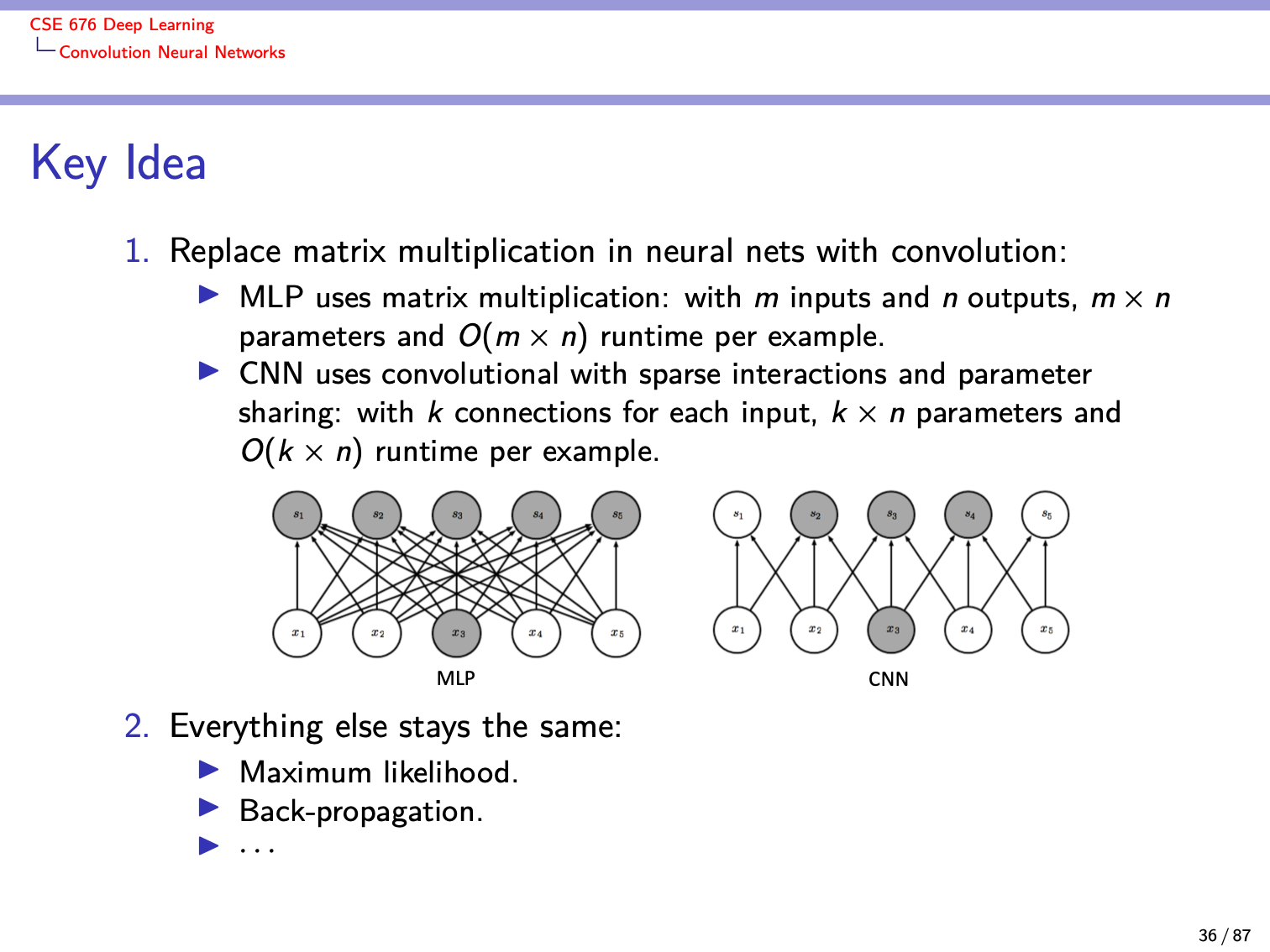

Slide 36

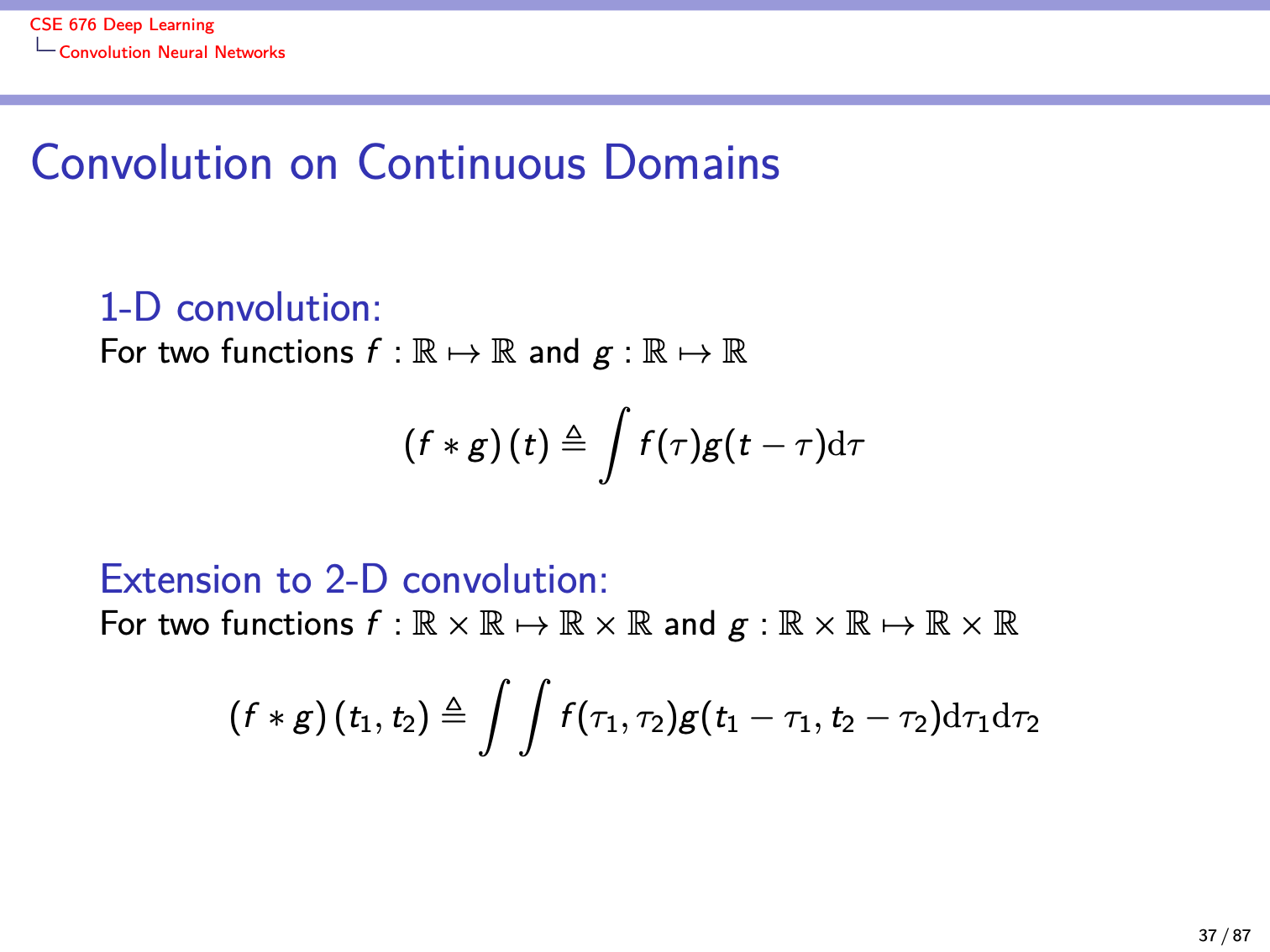

Slide 37

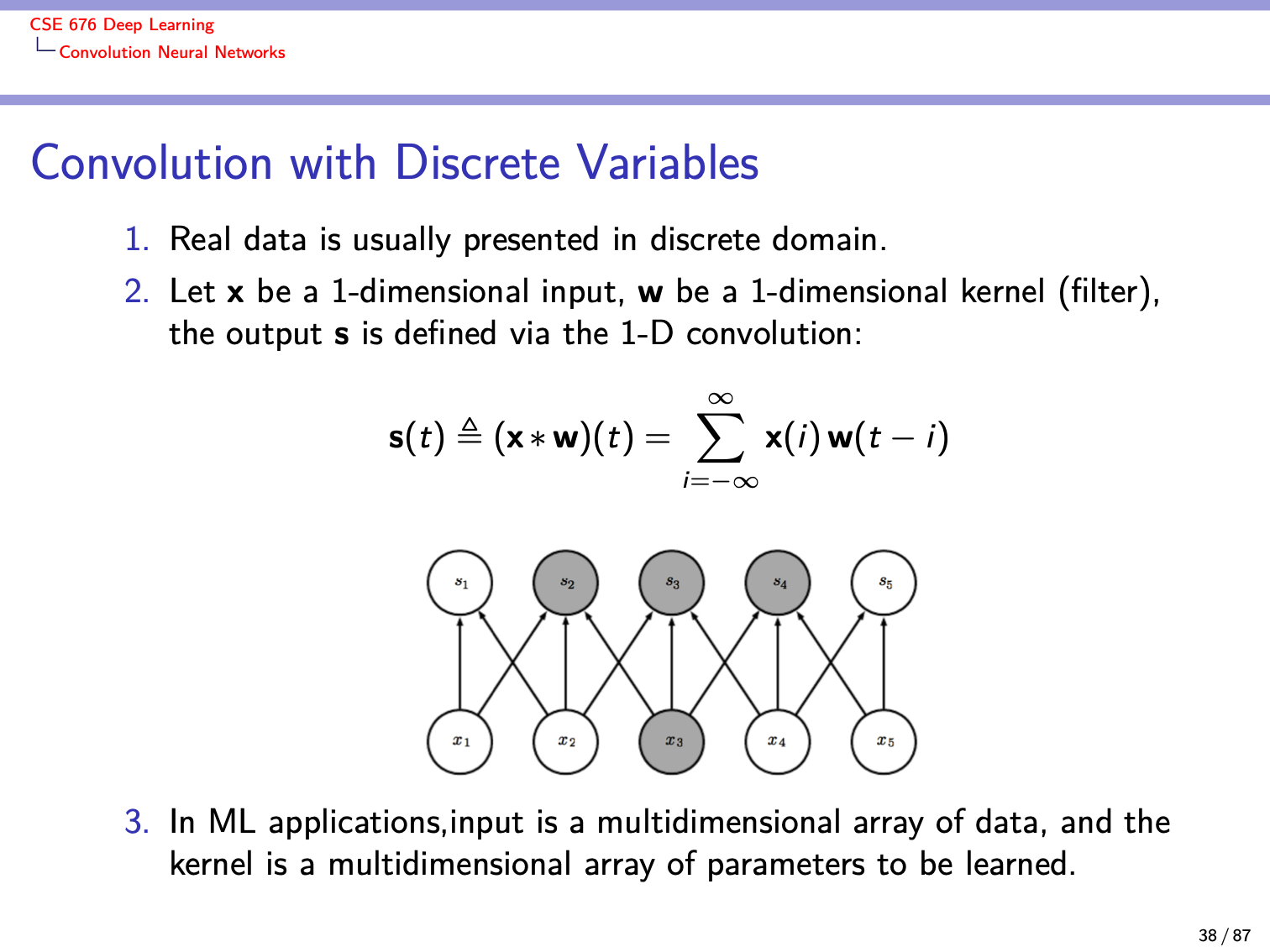

Slide 38

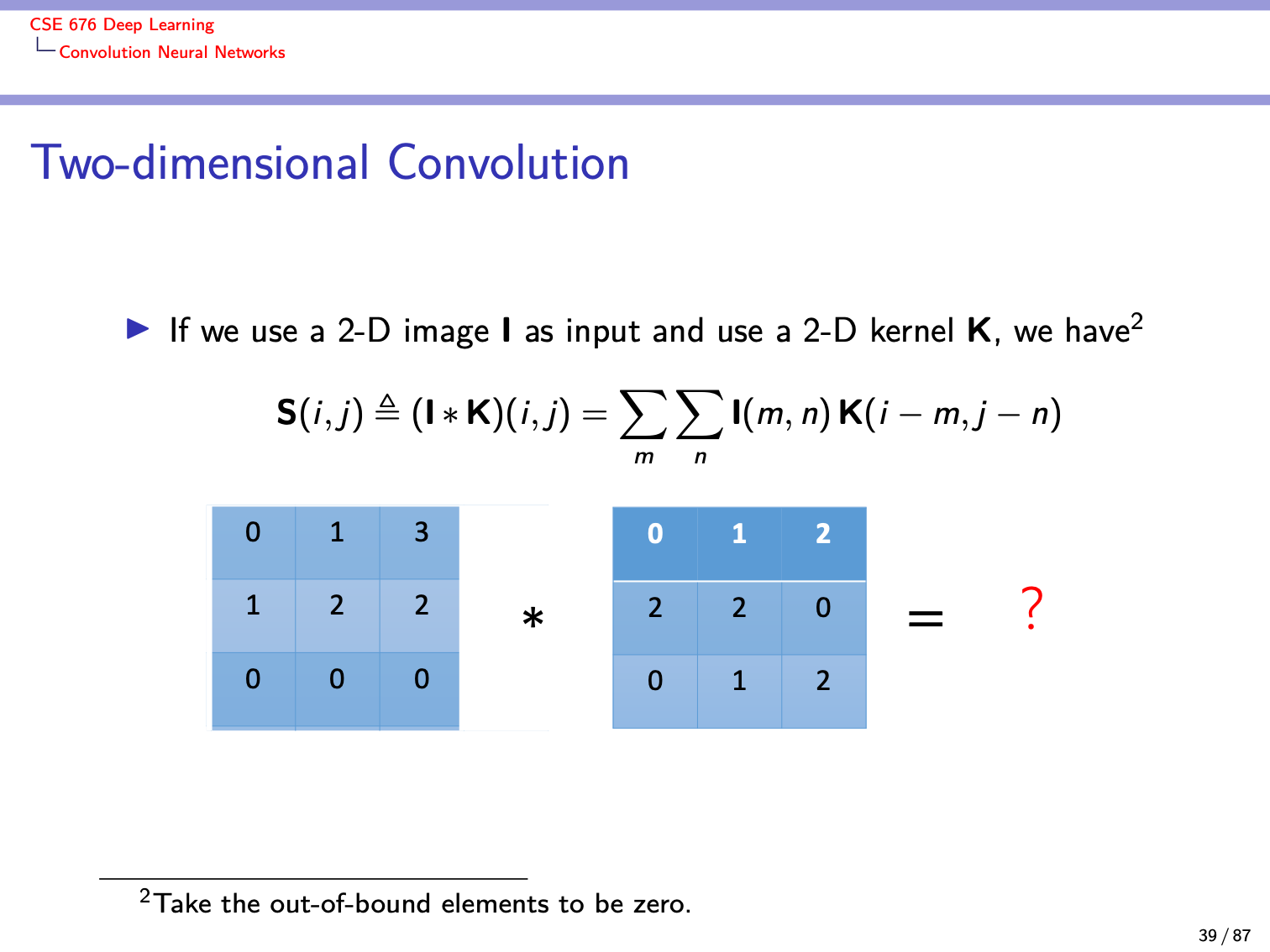

Slide 39

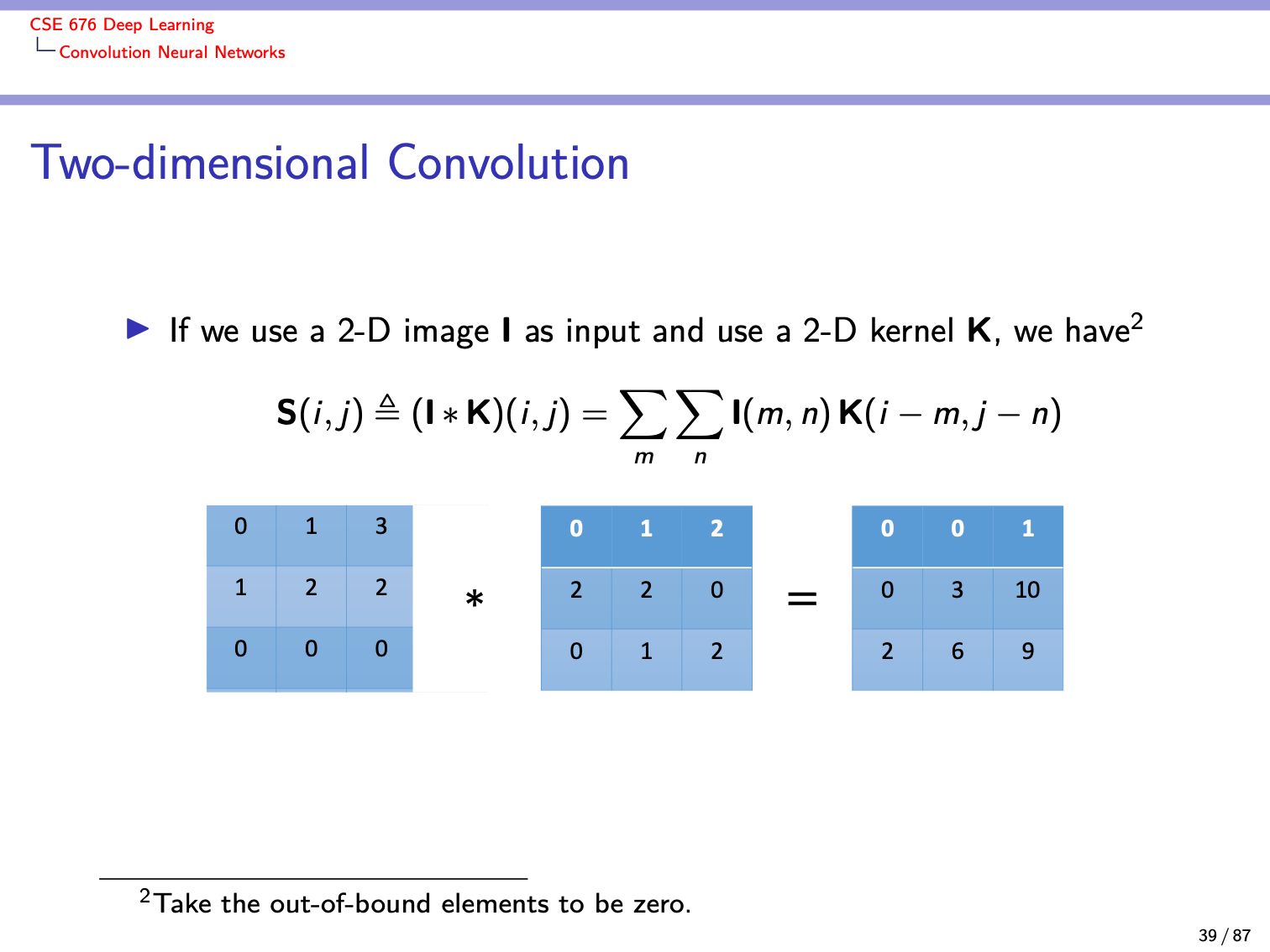

Slide 40

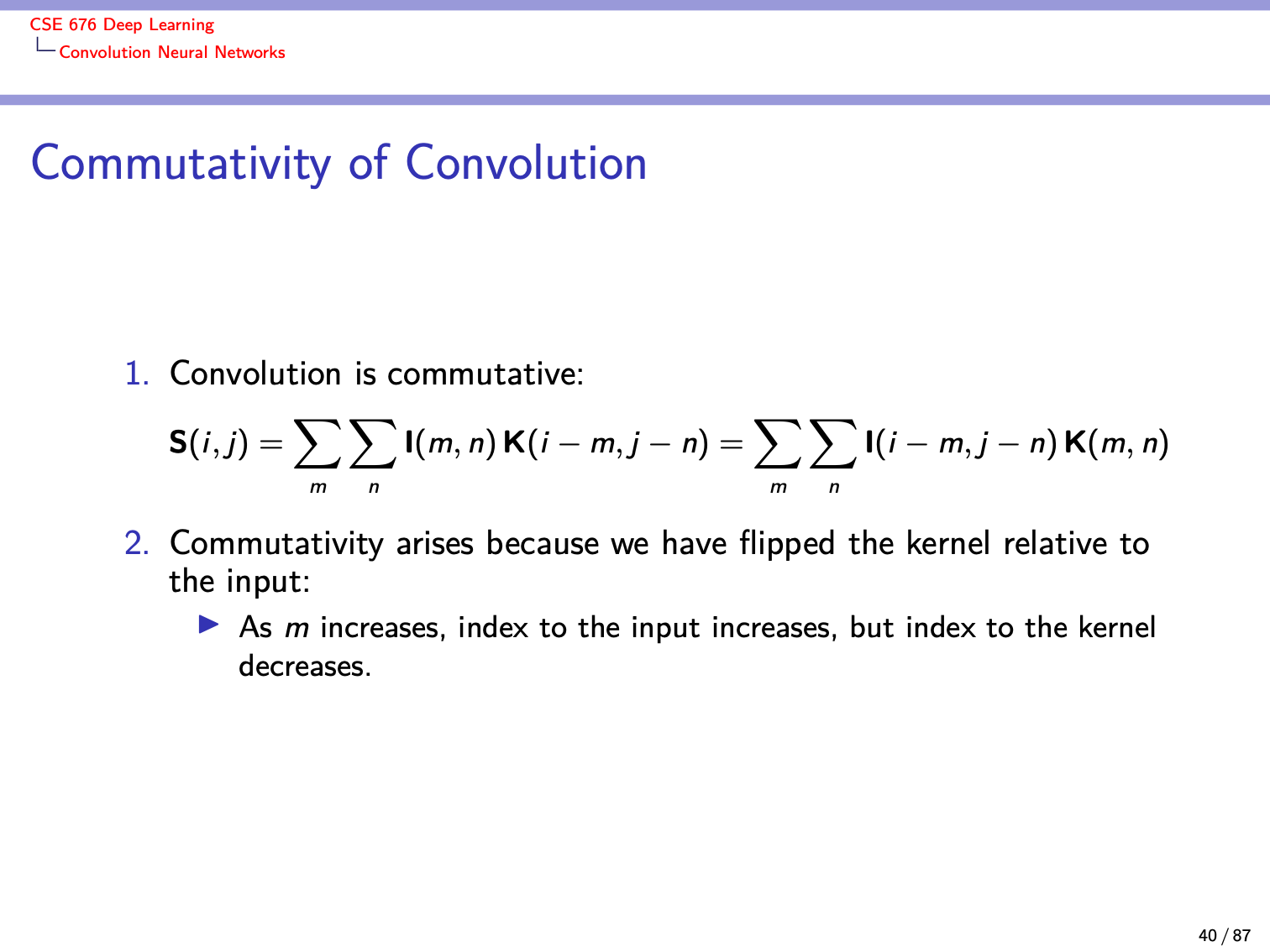

Slide 41

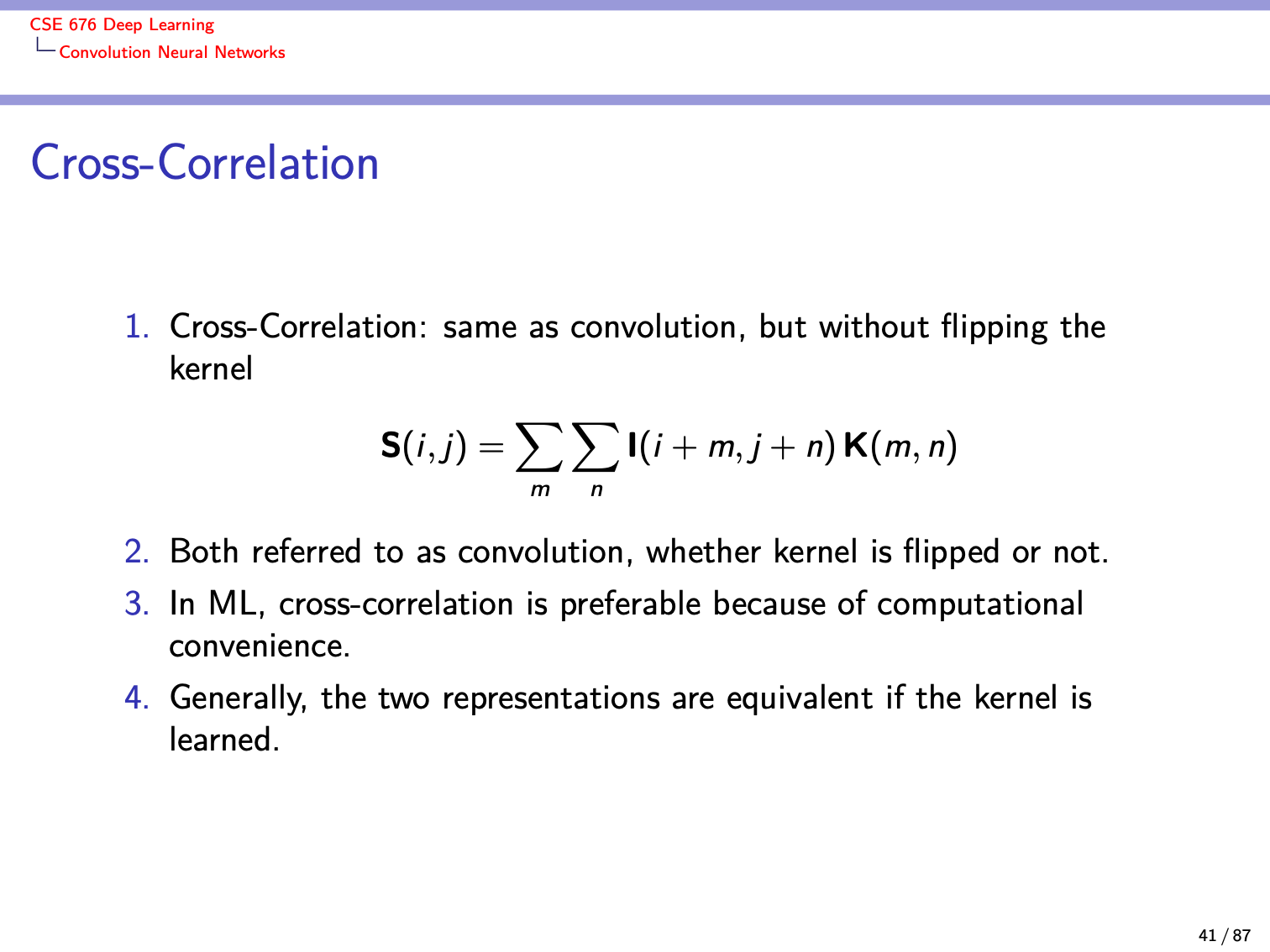

Slide 42

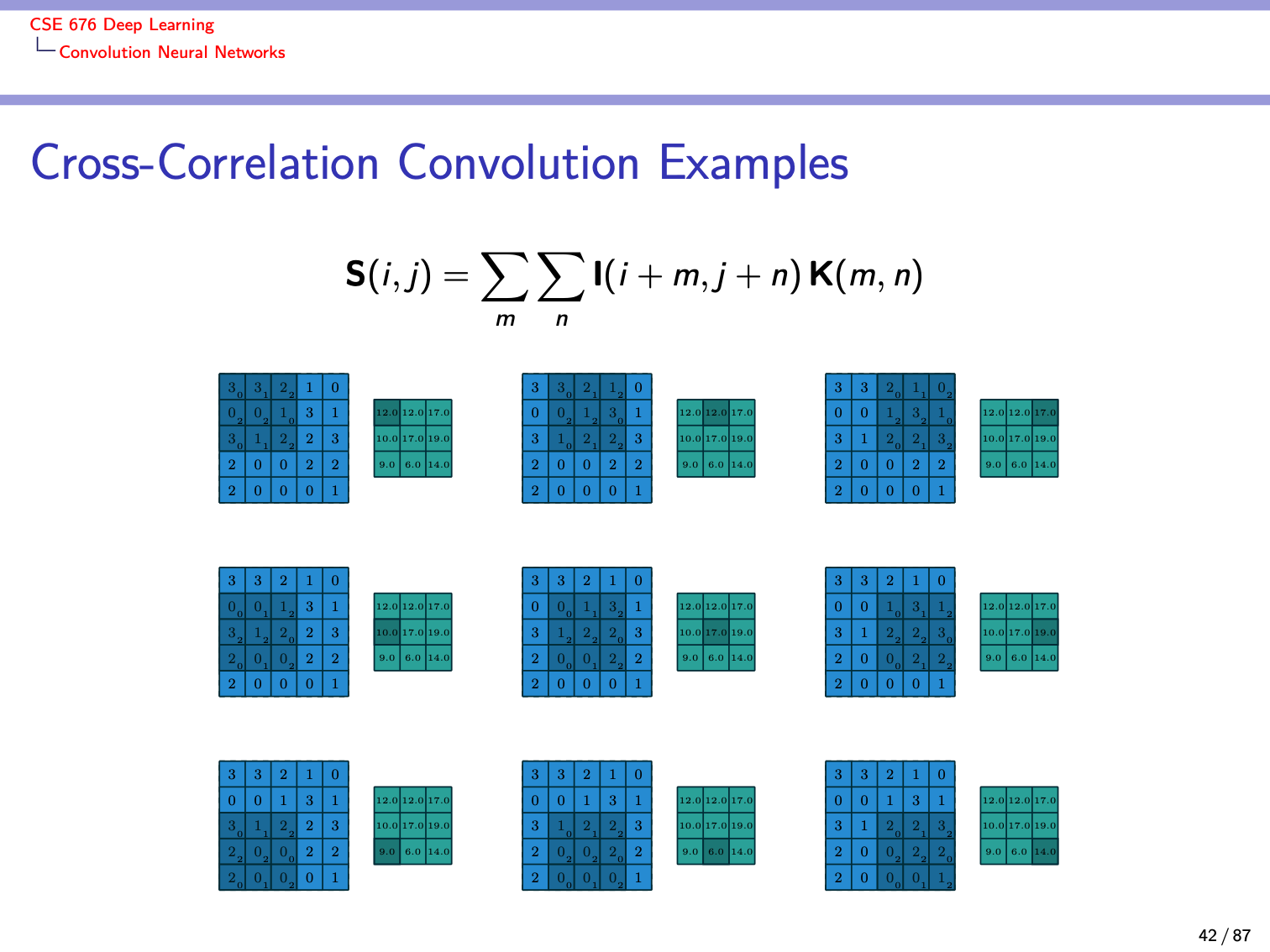

Slide 43

Slide 44

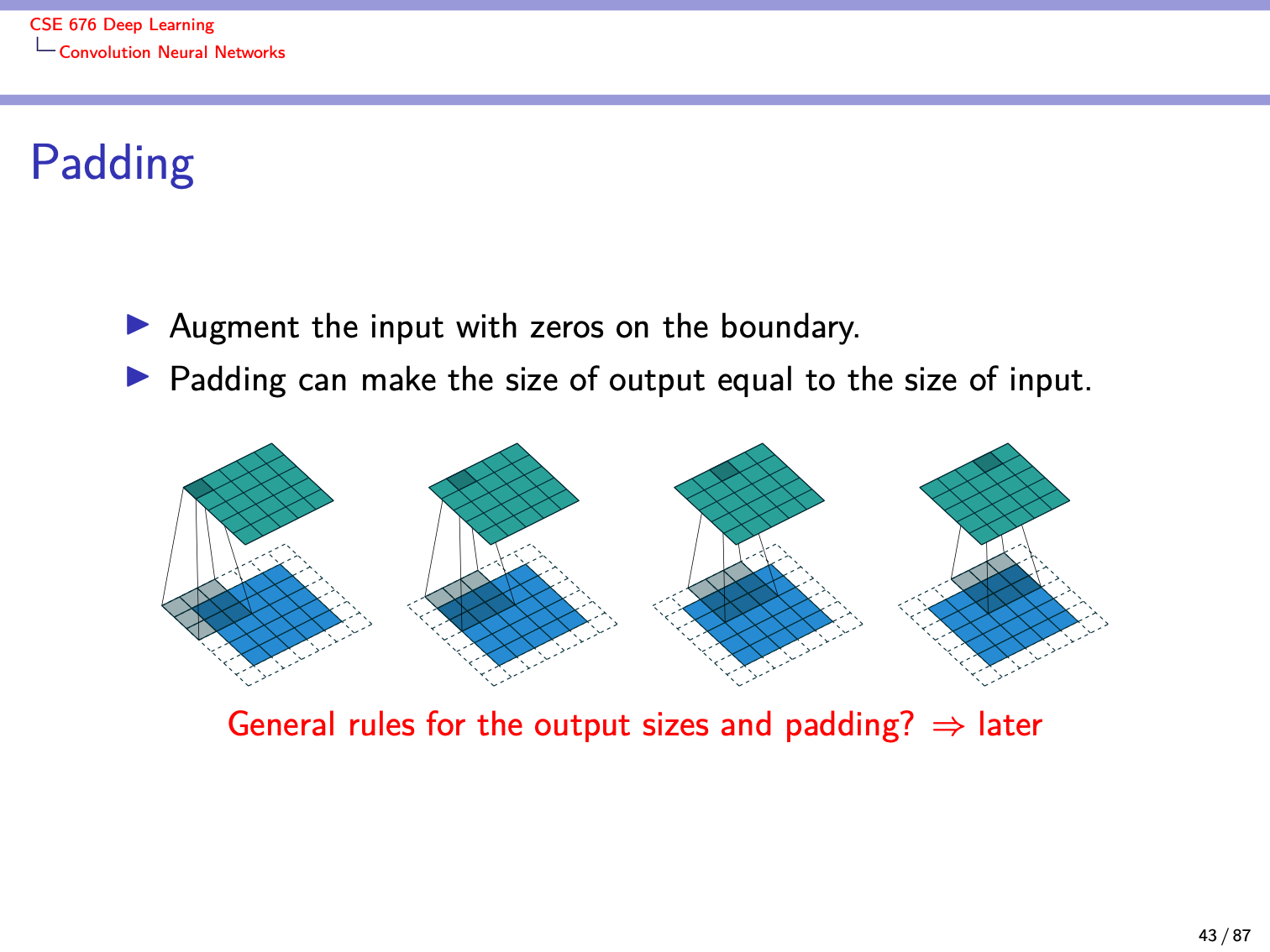

Slide 45

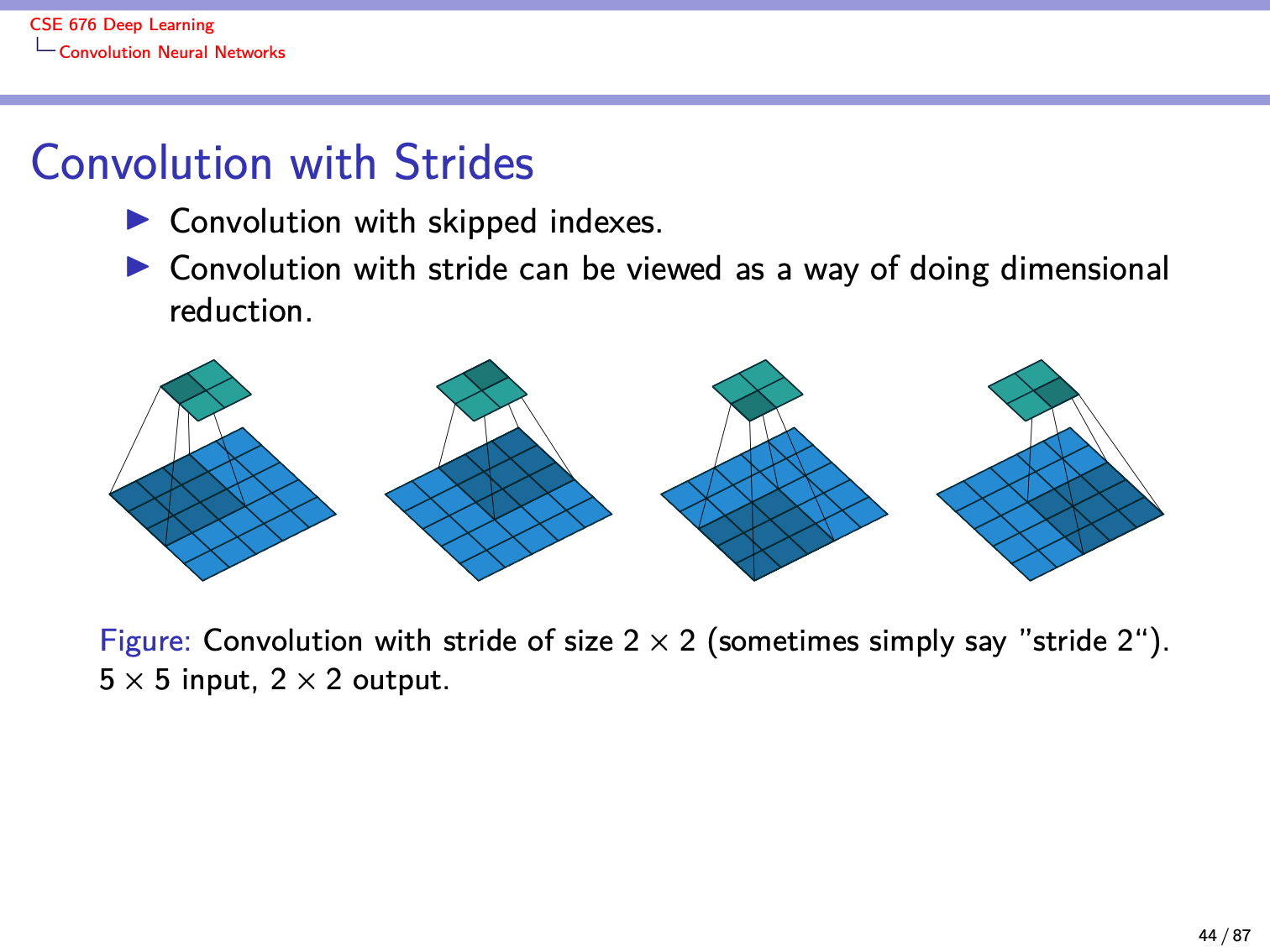

Slide 46

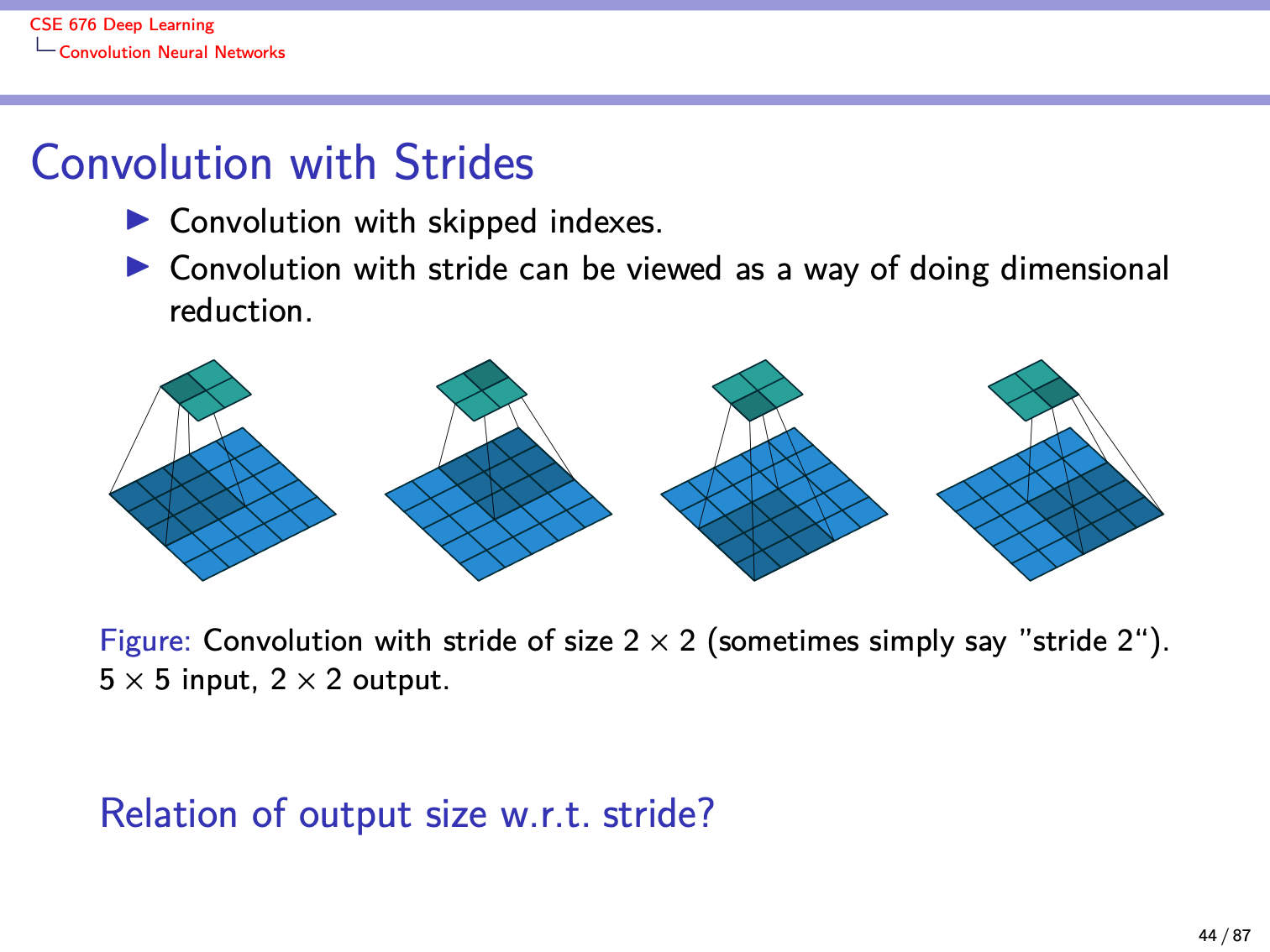

Slide 47

Slide 48

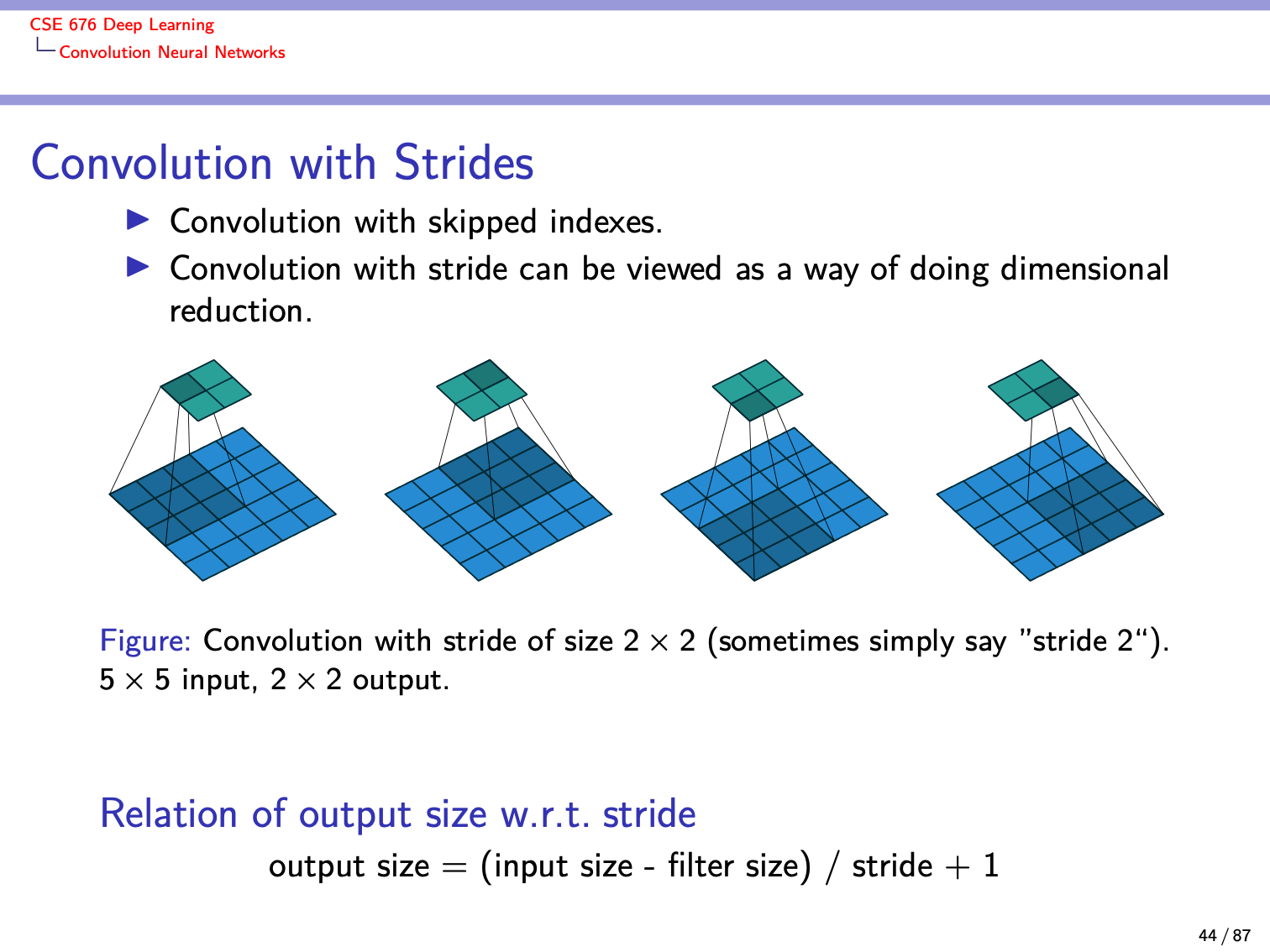

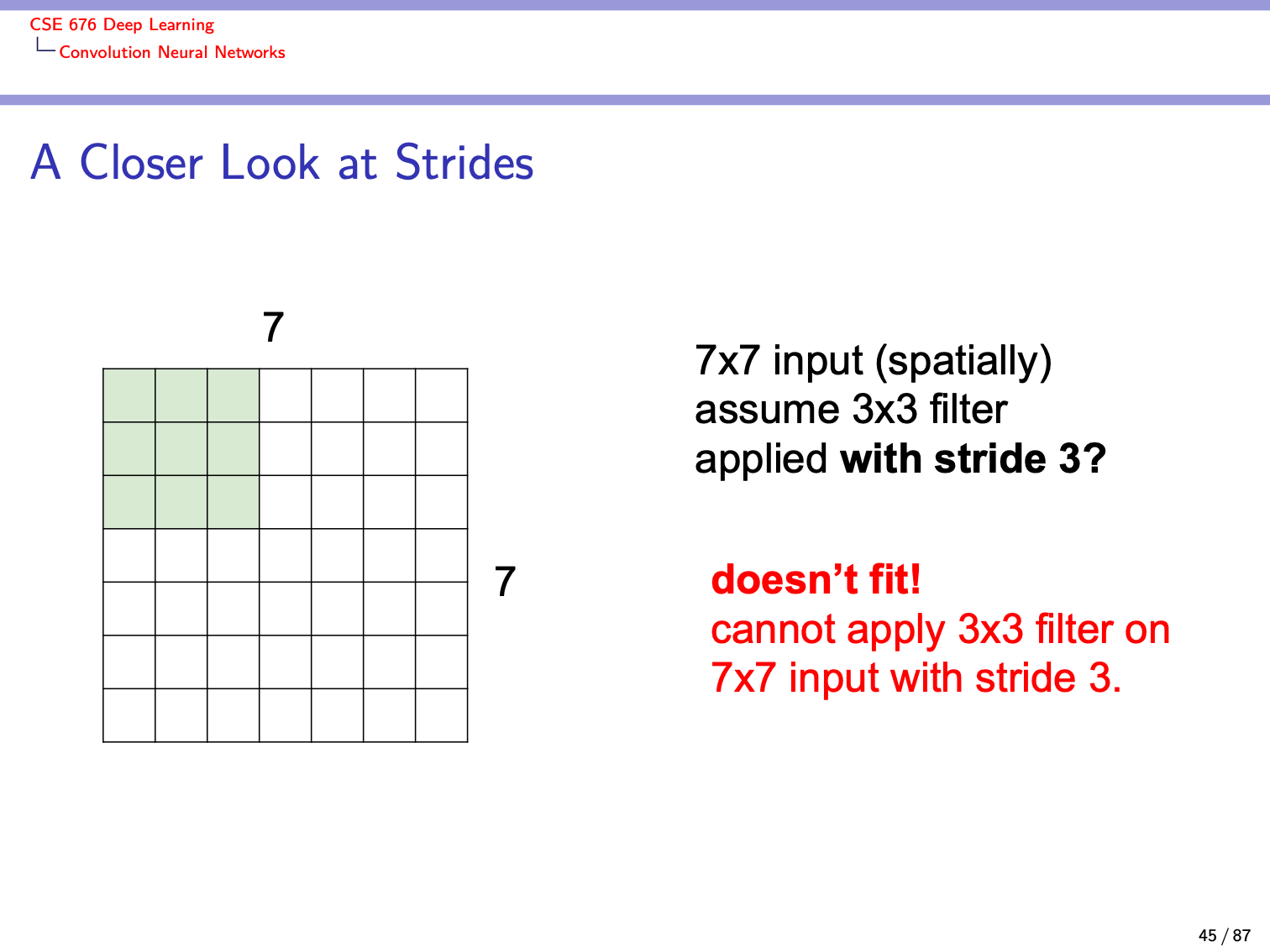

Slide 49

Slide 50

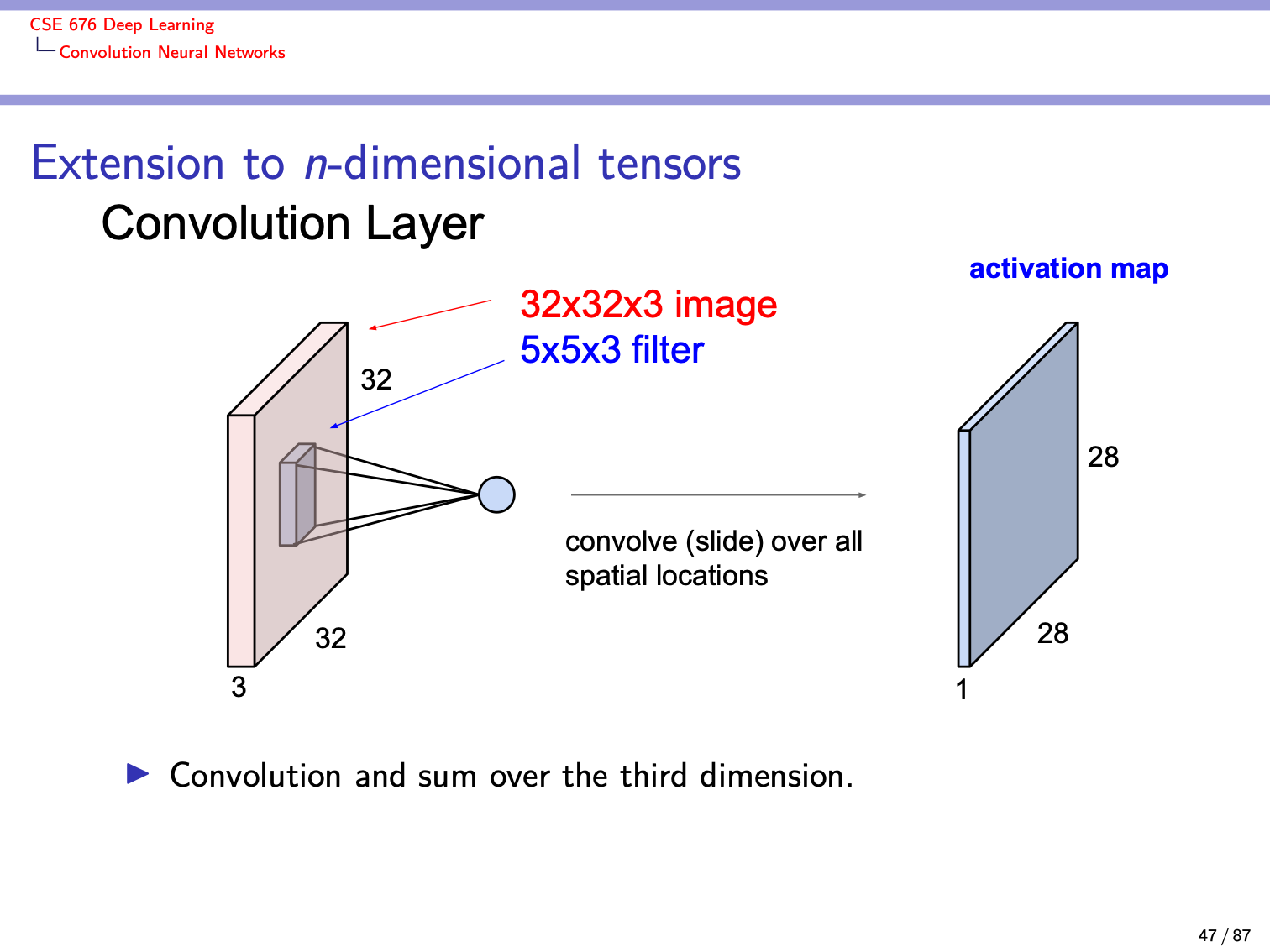

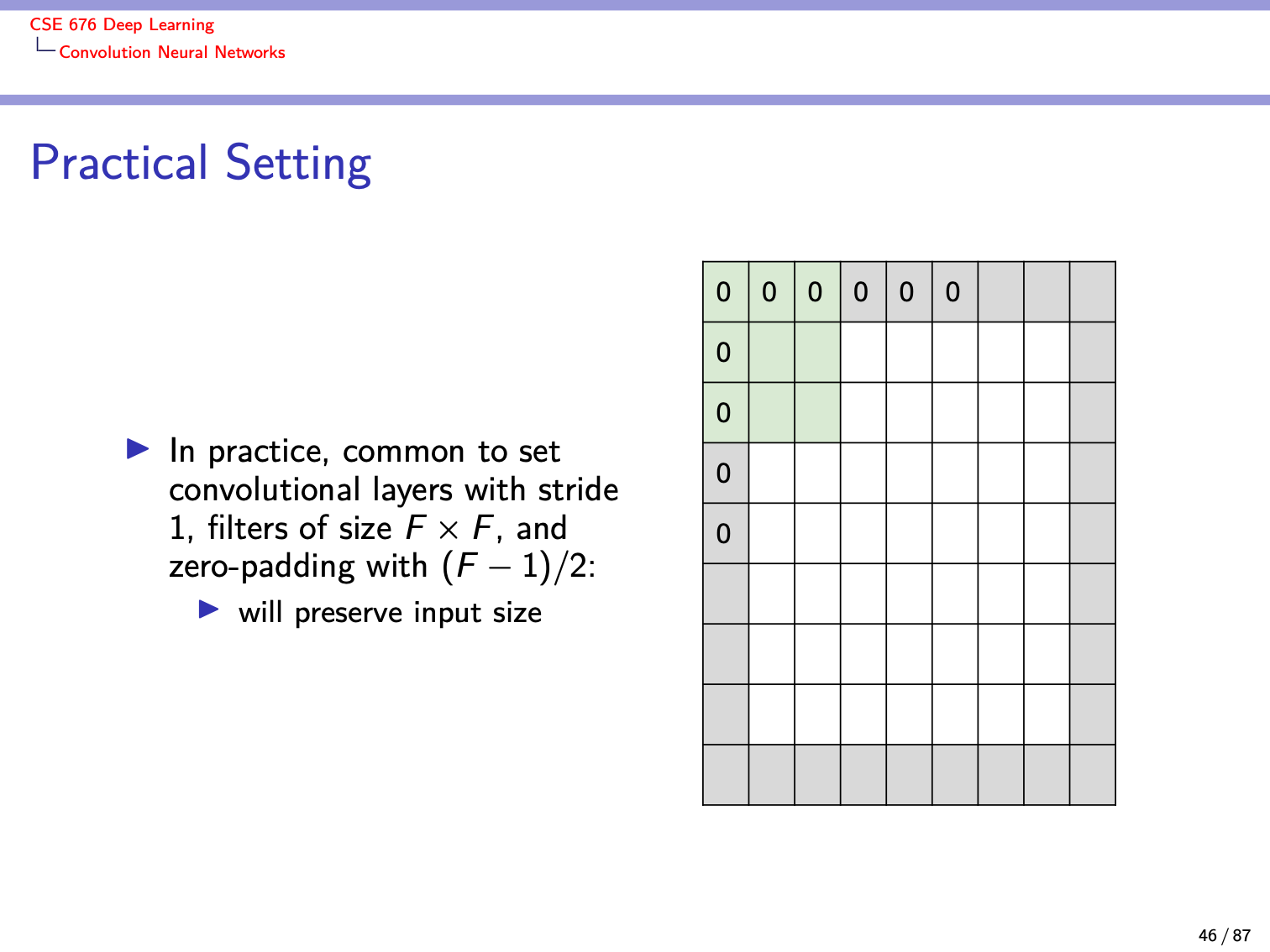

Slide 51

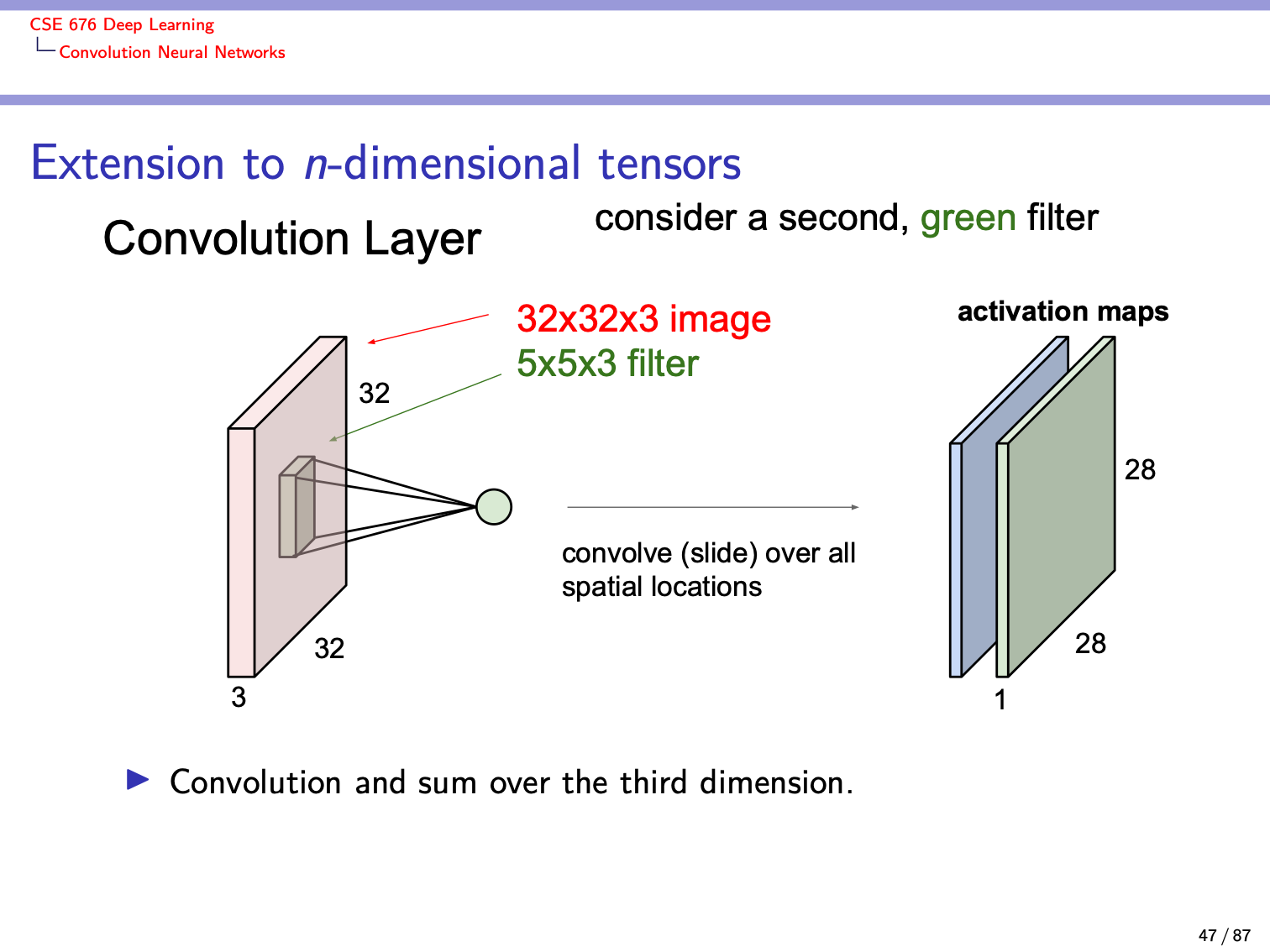

Slide 52

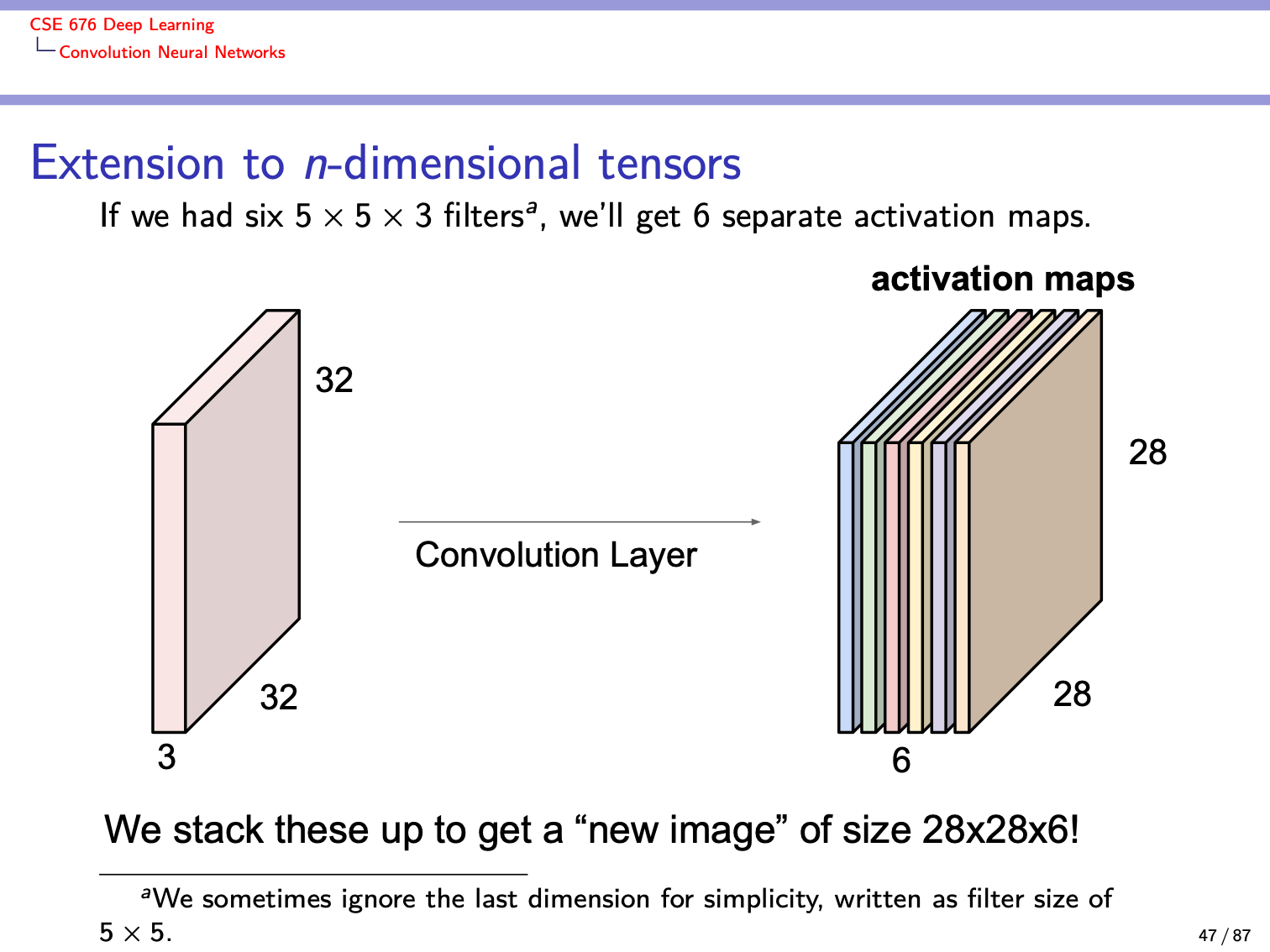

Slide 53

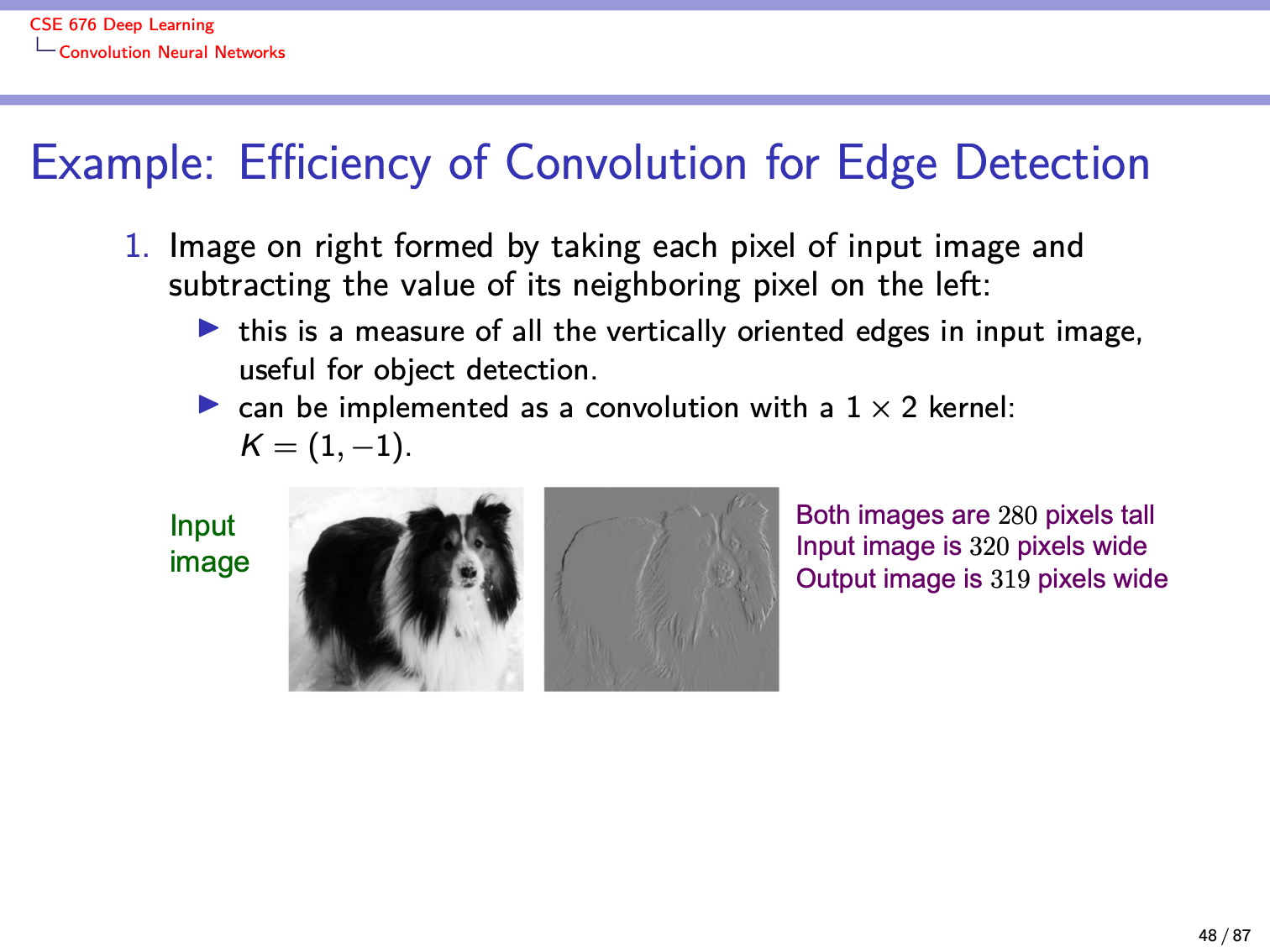

Slide 54

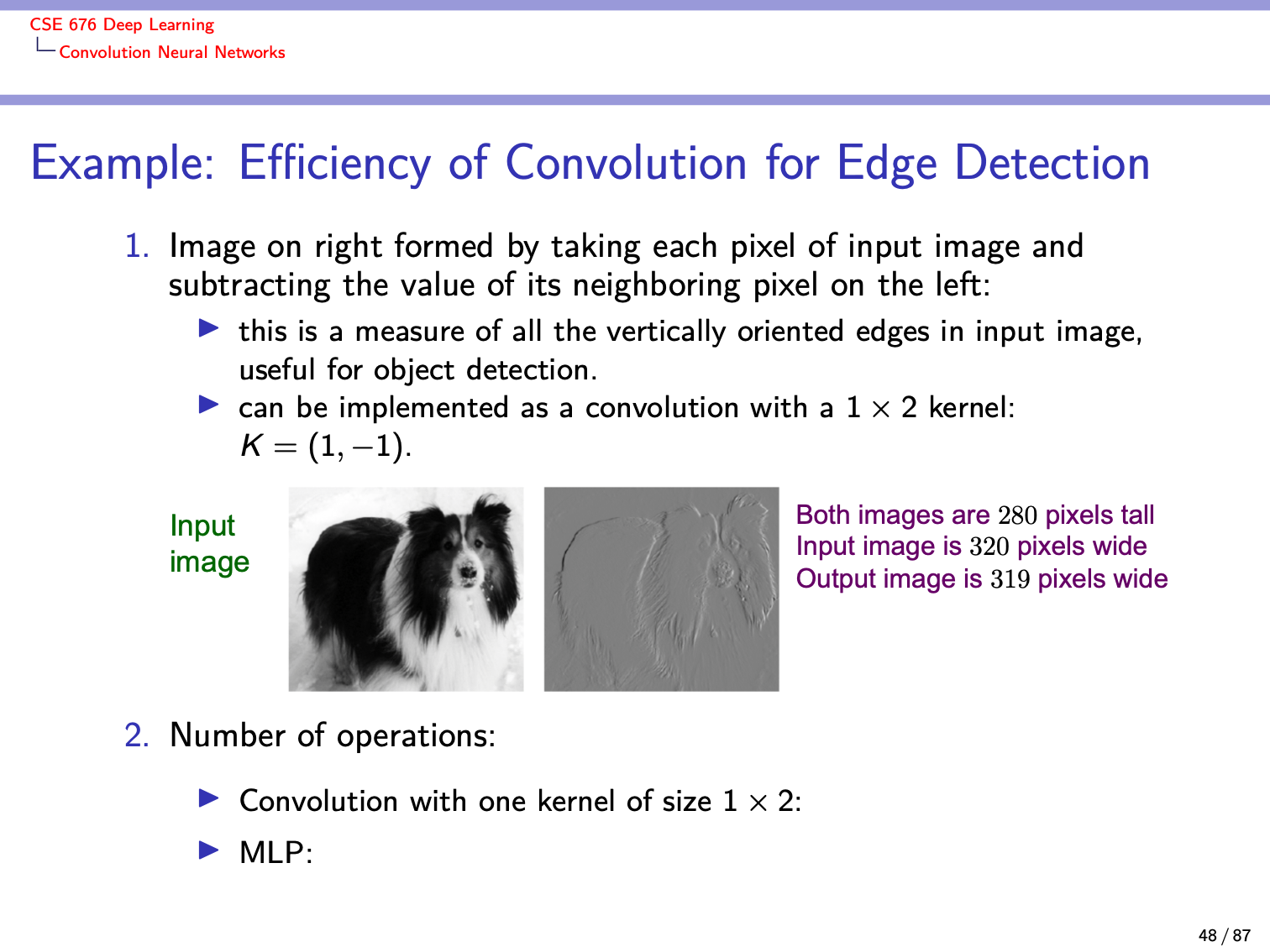

Slide 55

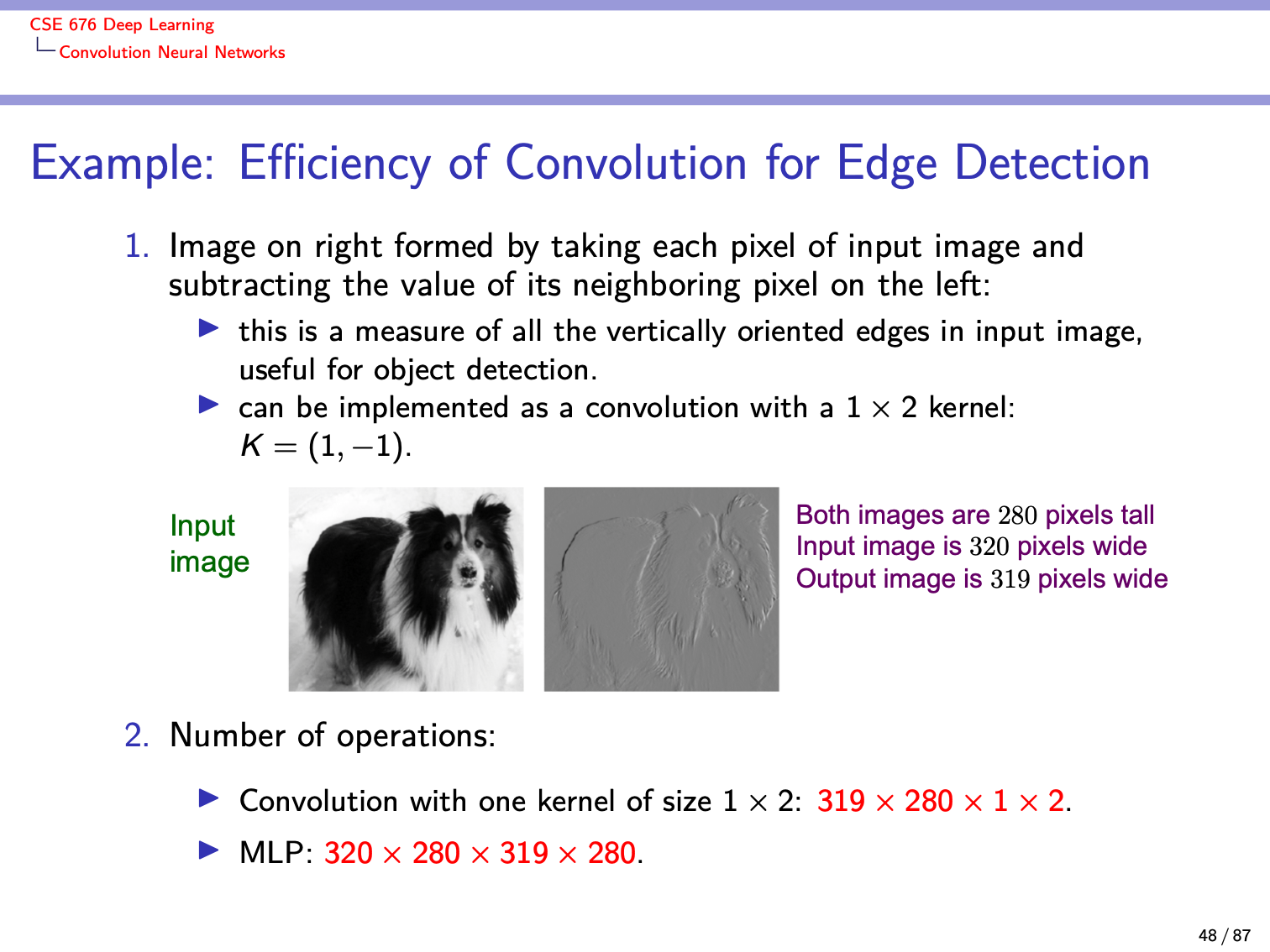

Slide 56

Slide 57

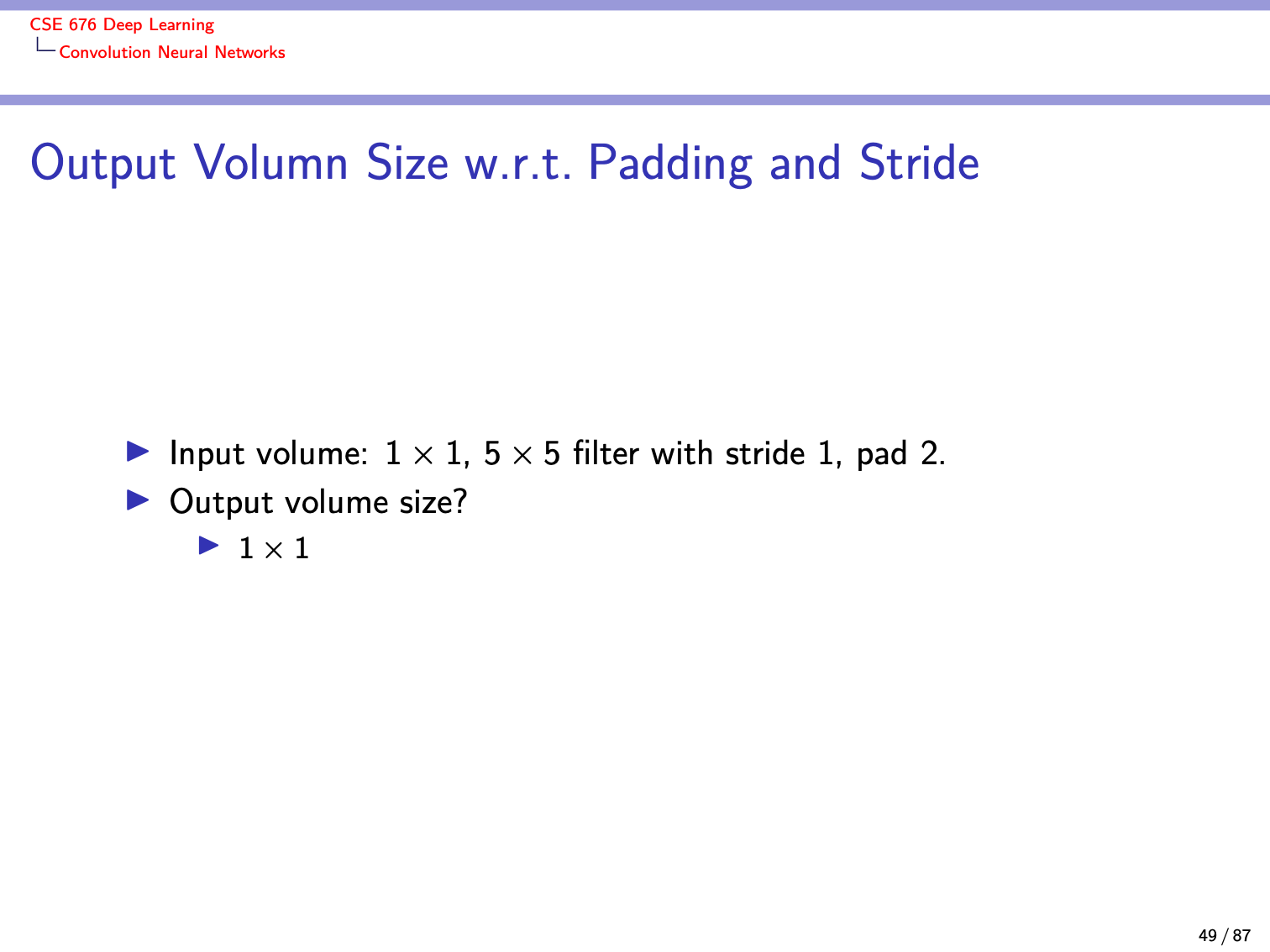

Slide 58

Slide 59

Slide 60

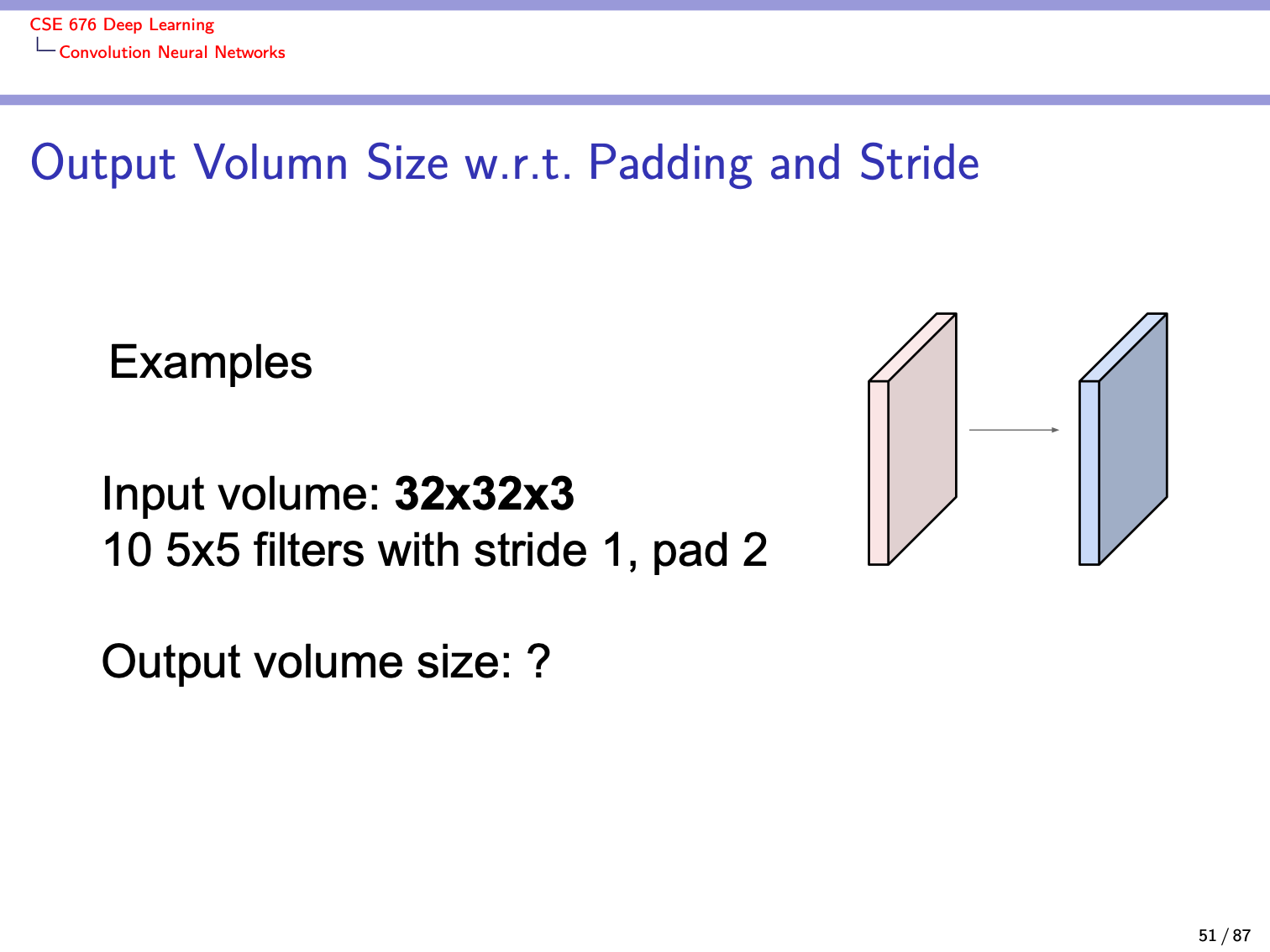

Slide 61

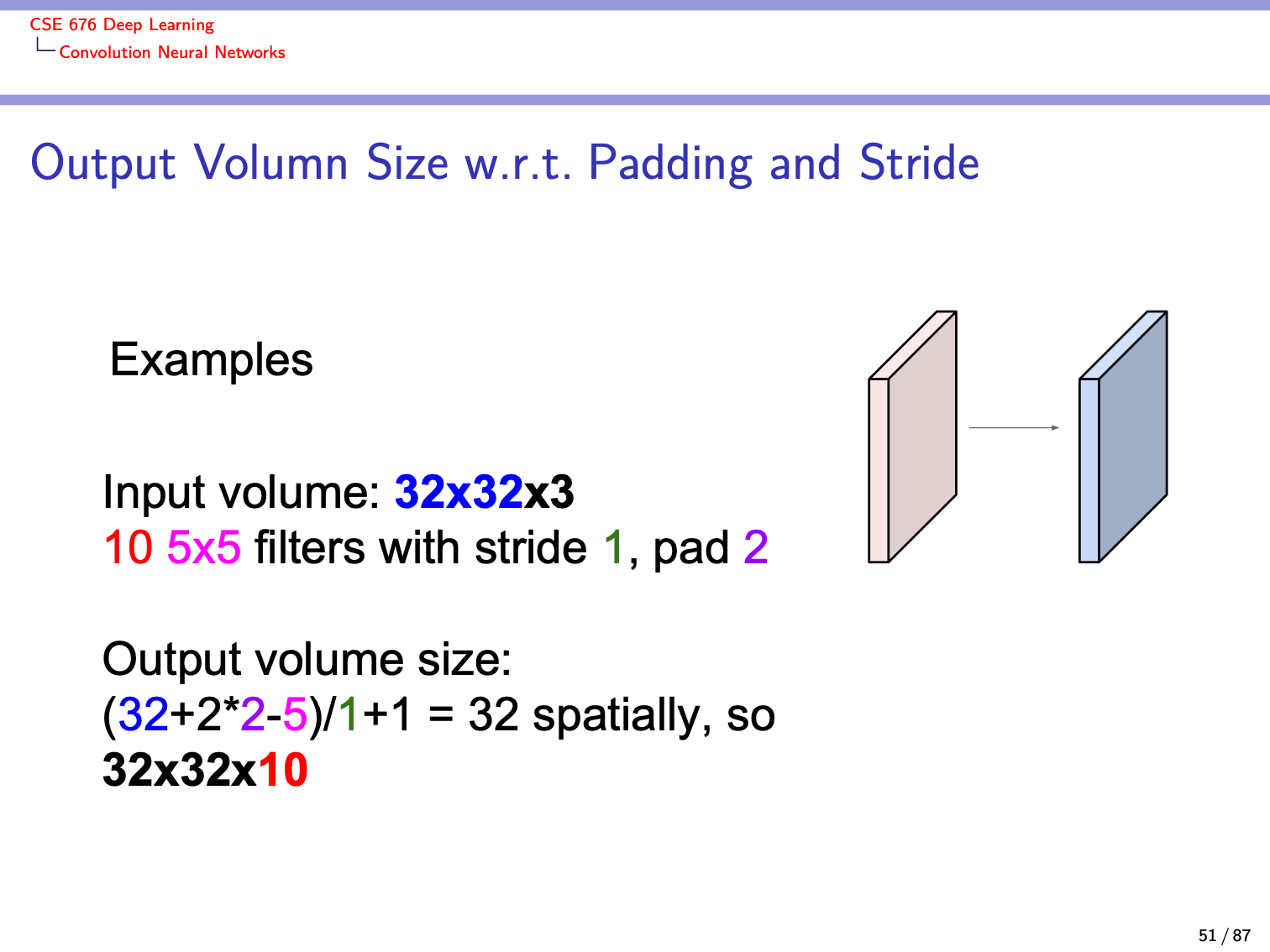

Slide 62

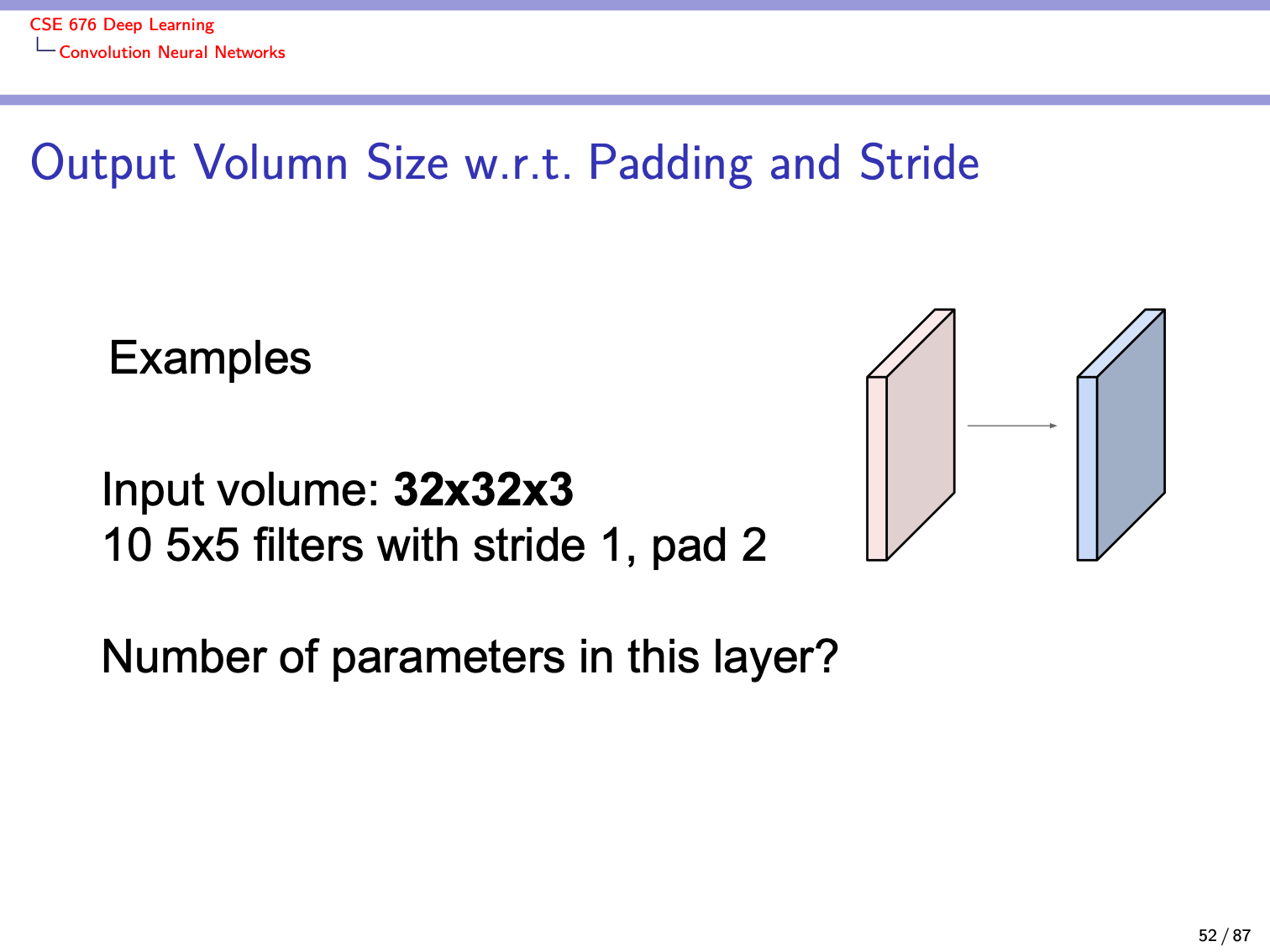

Slide 63

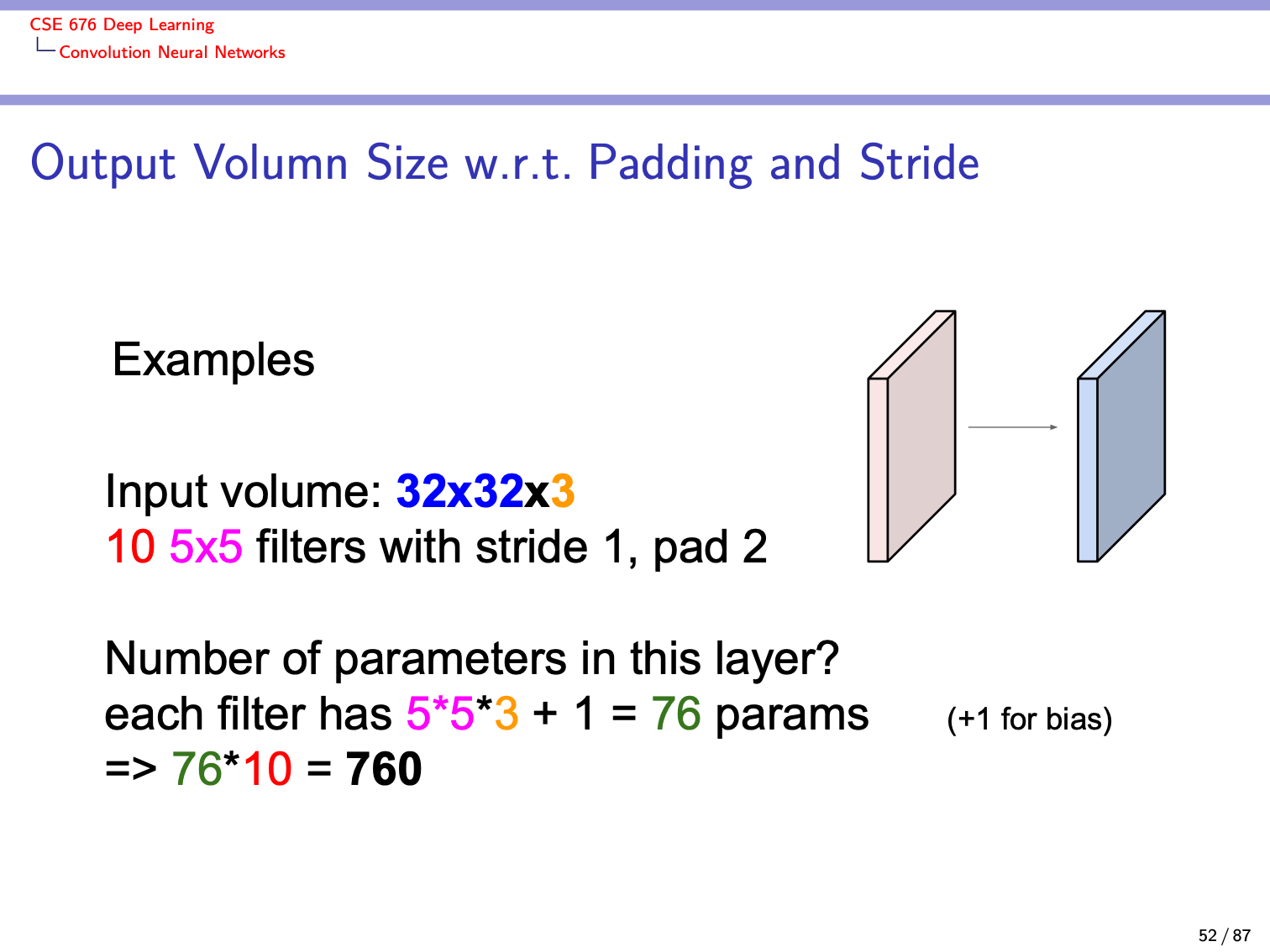

Slide 64

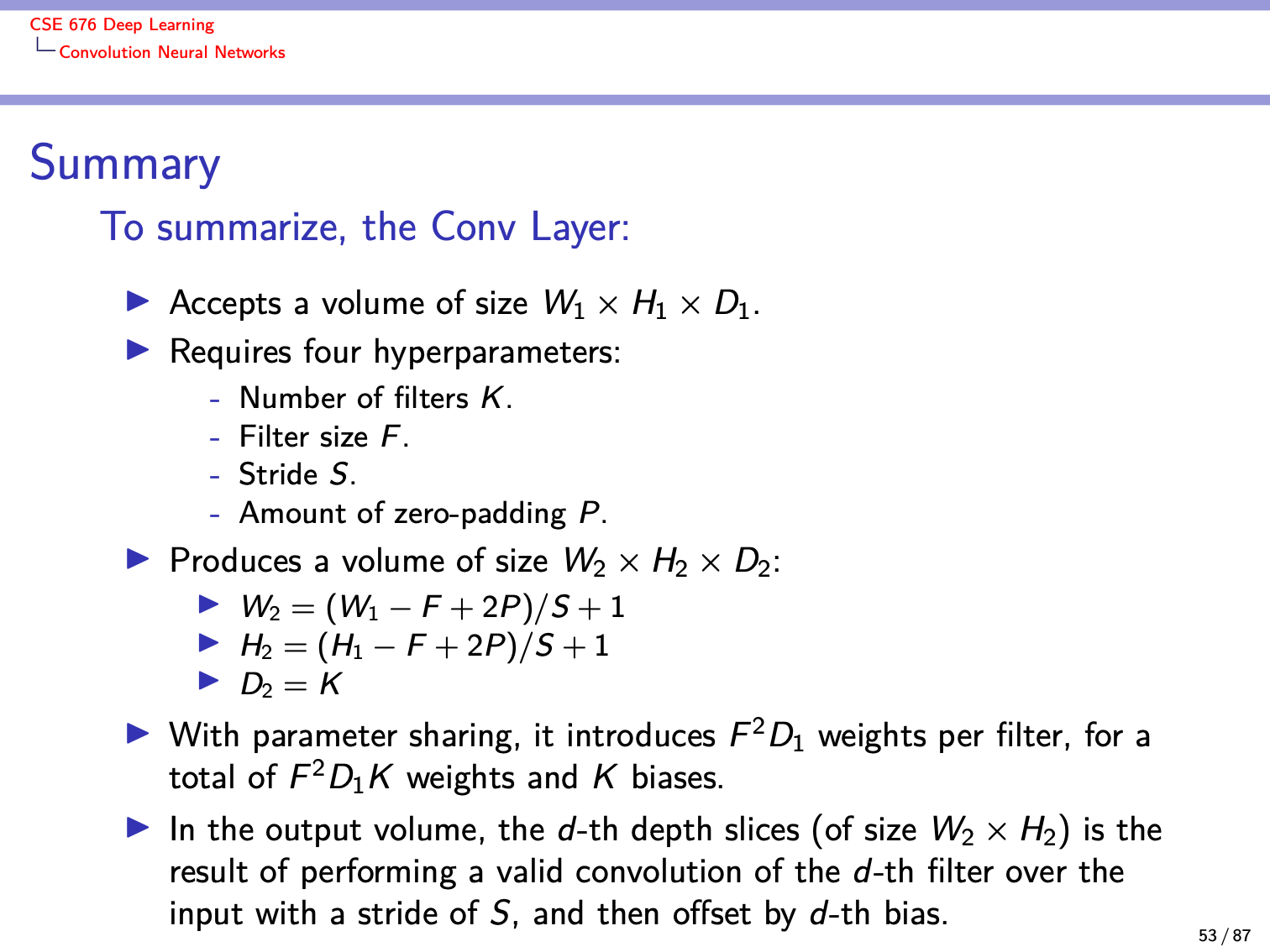

Slide 65

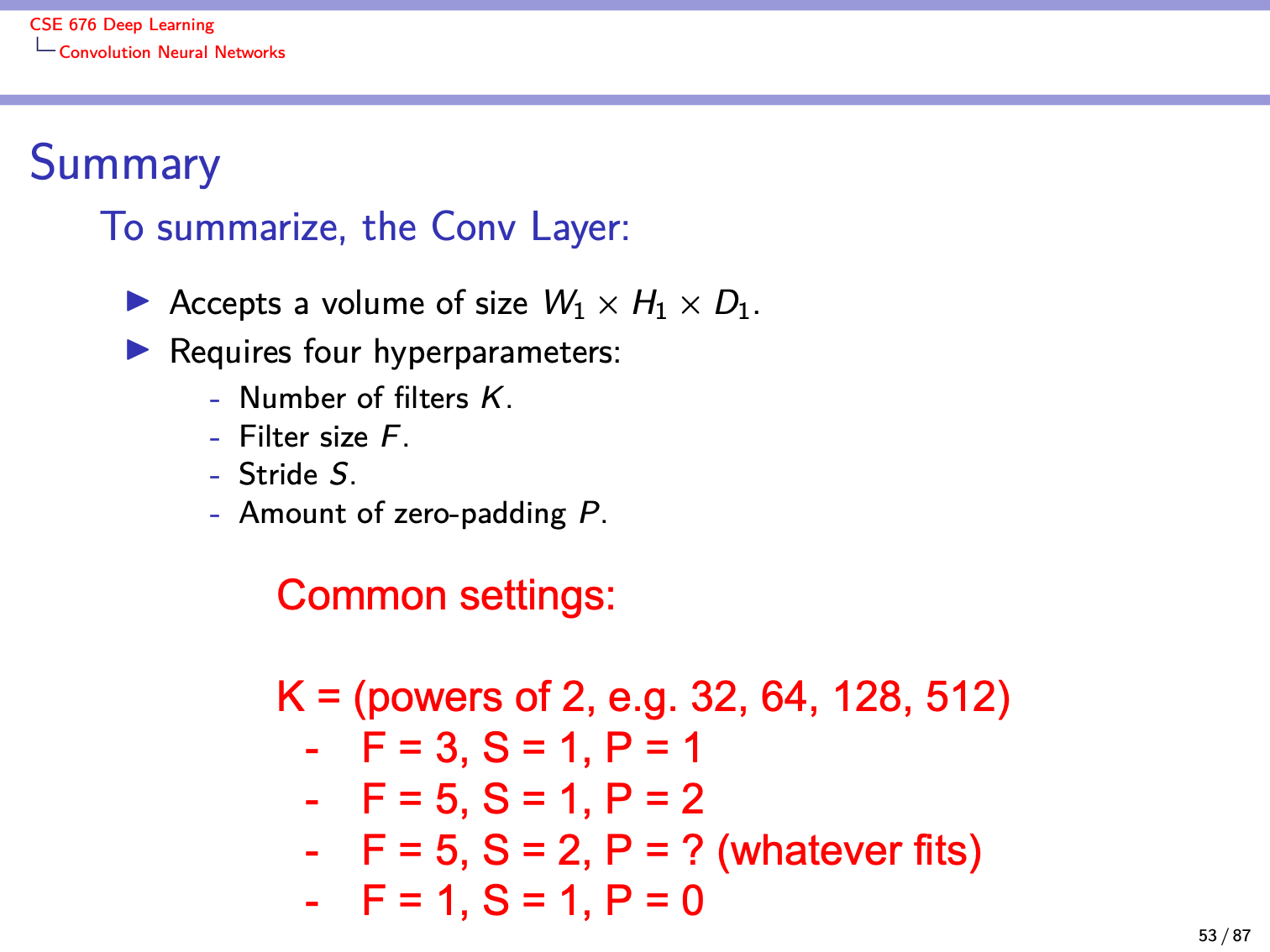

Slide 66

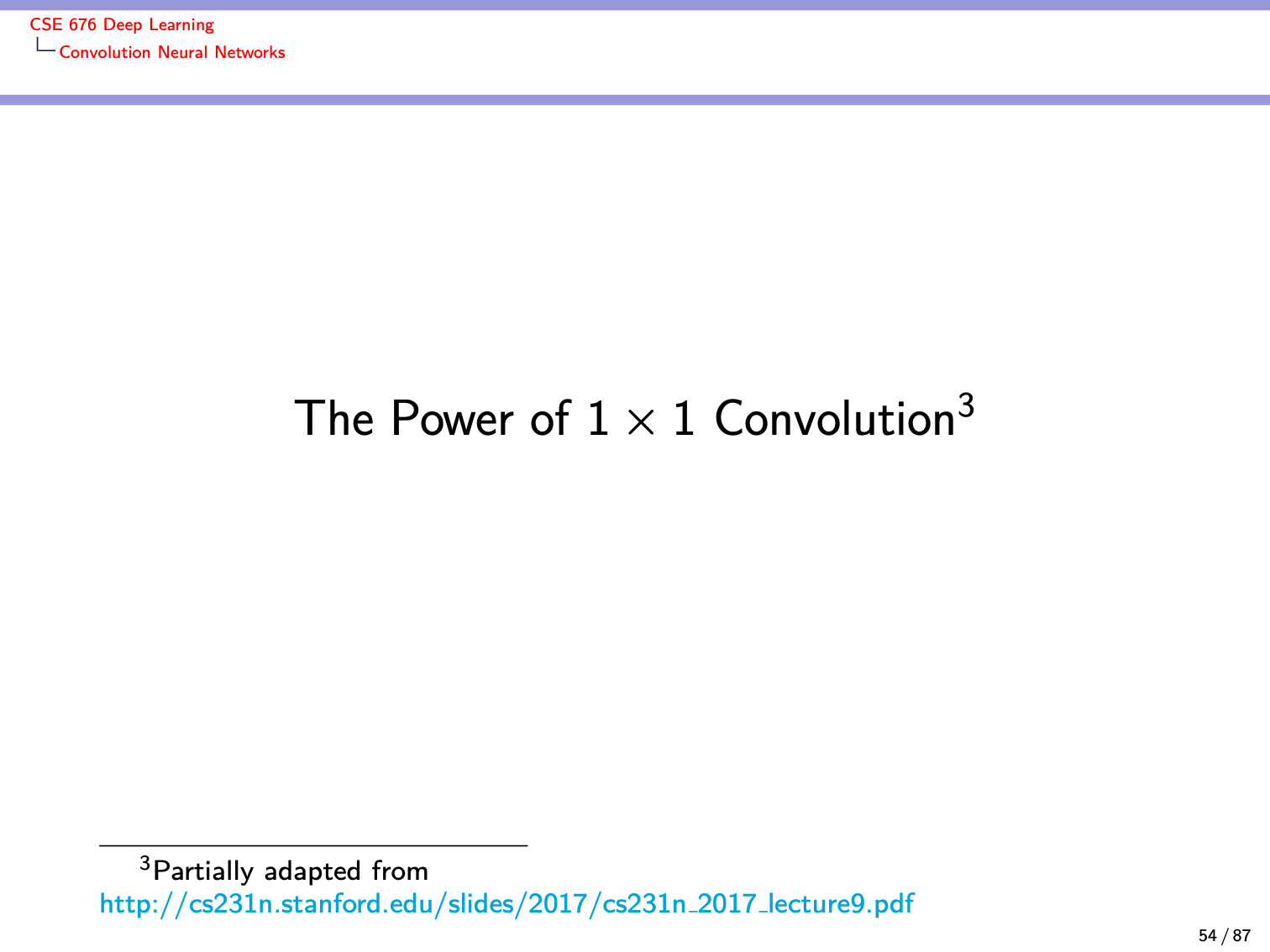

Slide 67

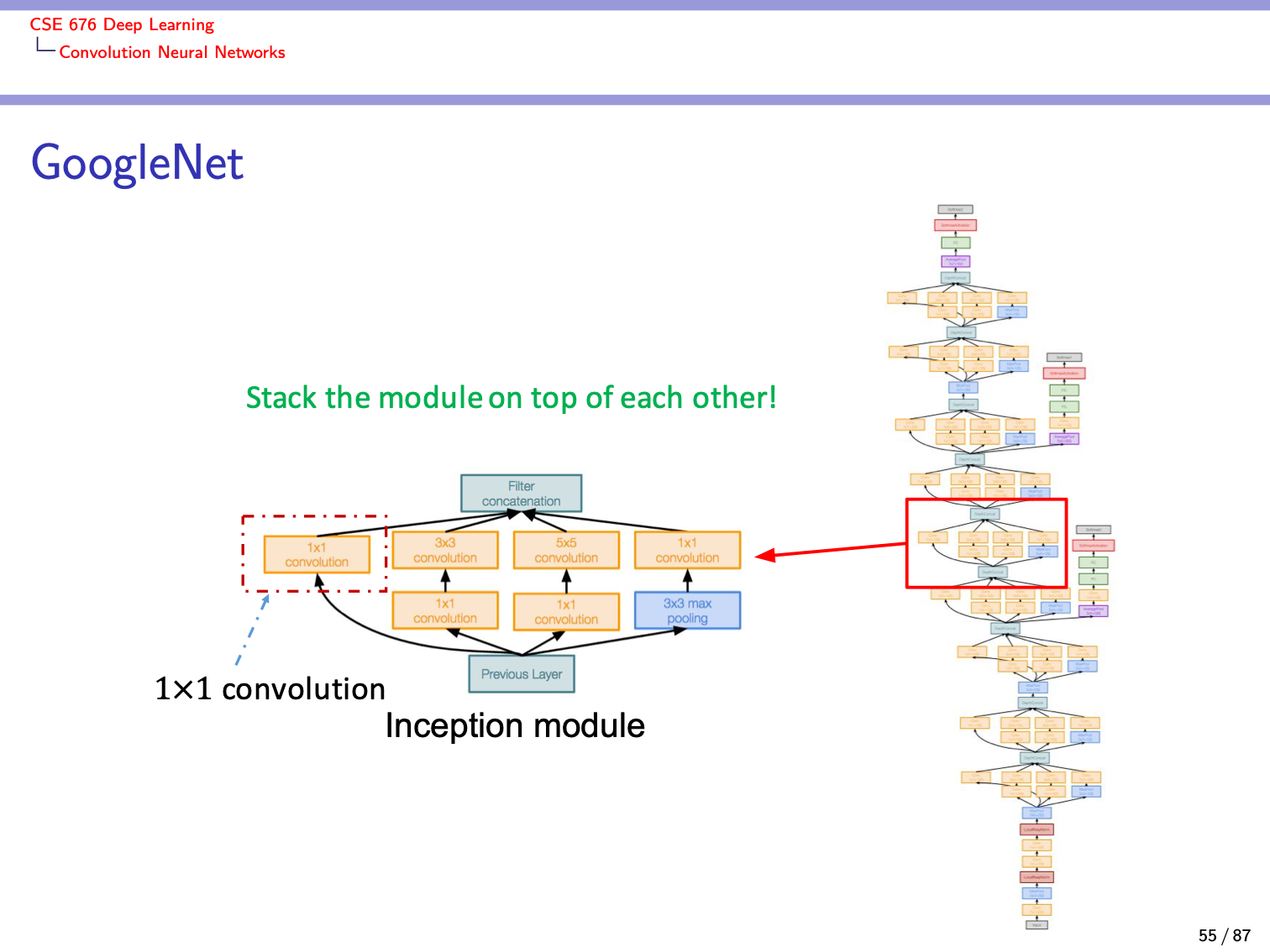

Slide 68

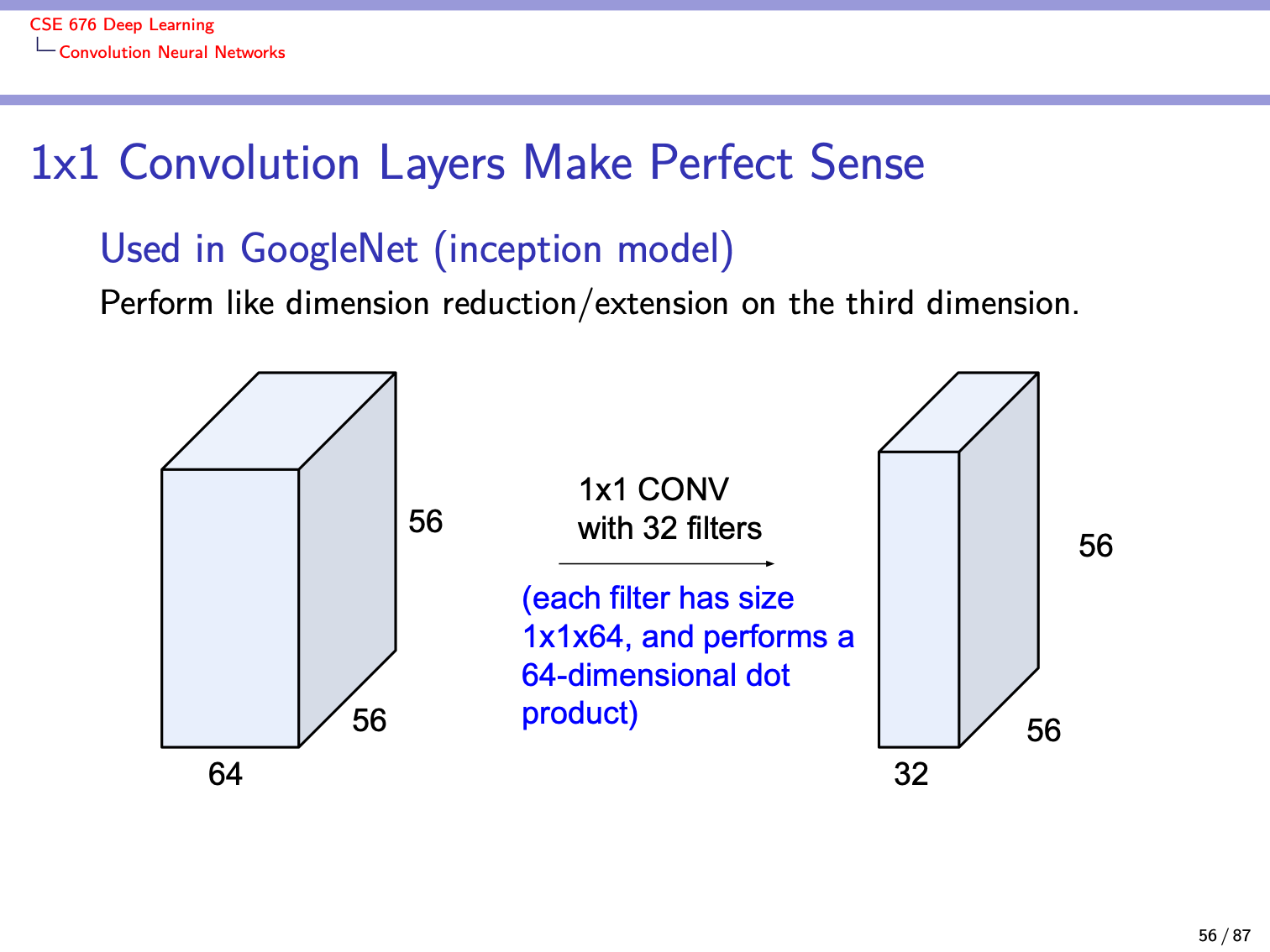

Slide 69

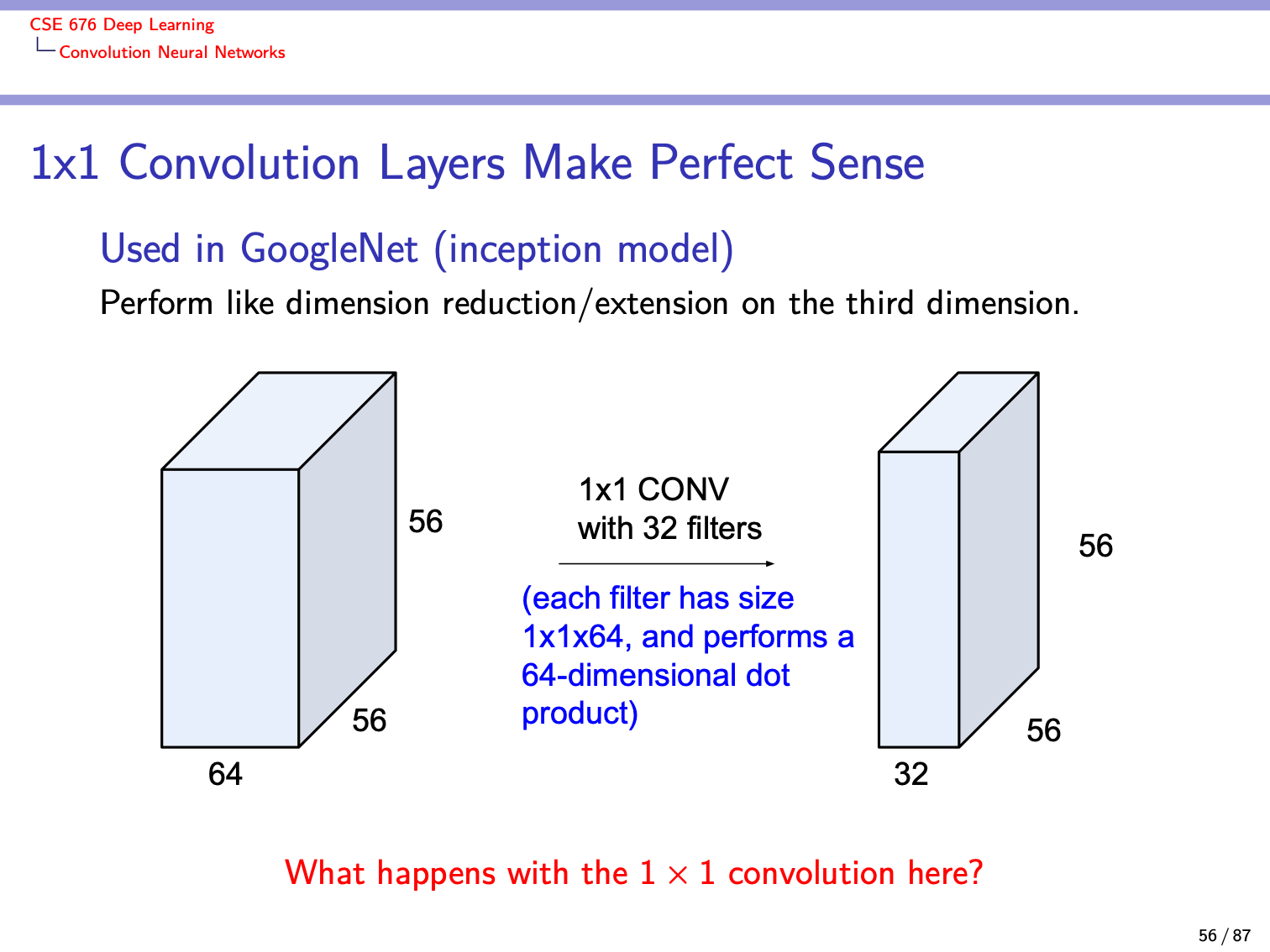

Slide 70

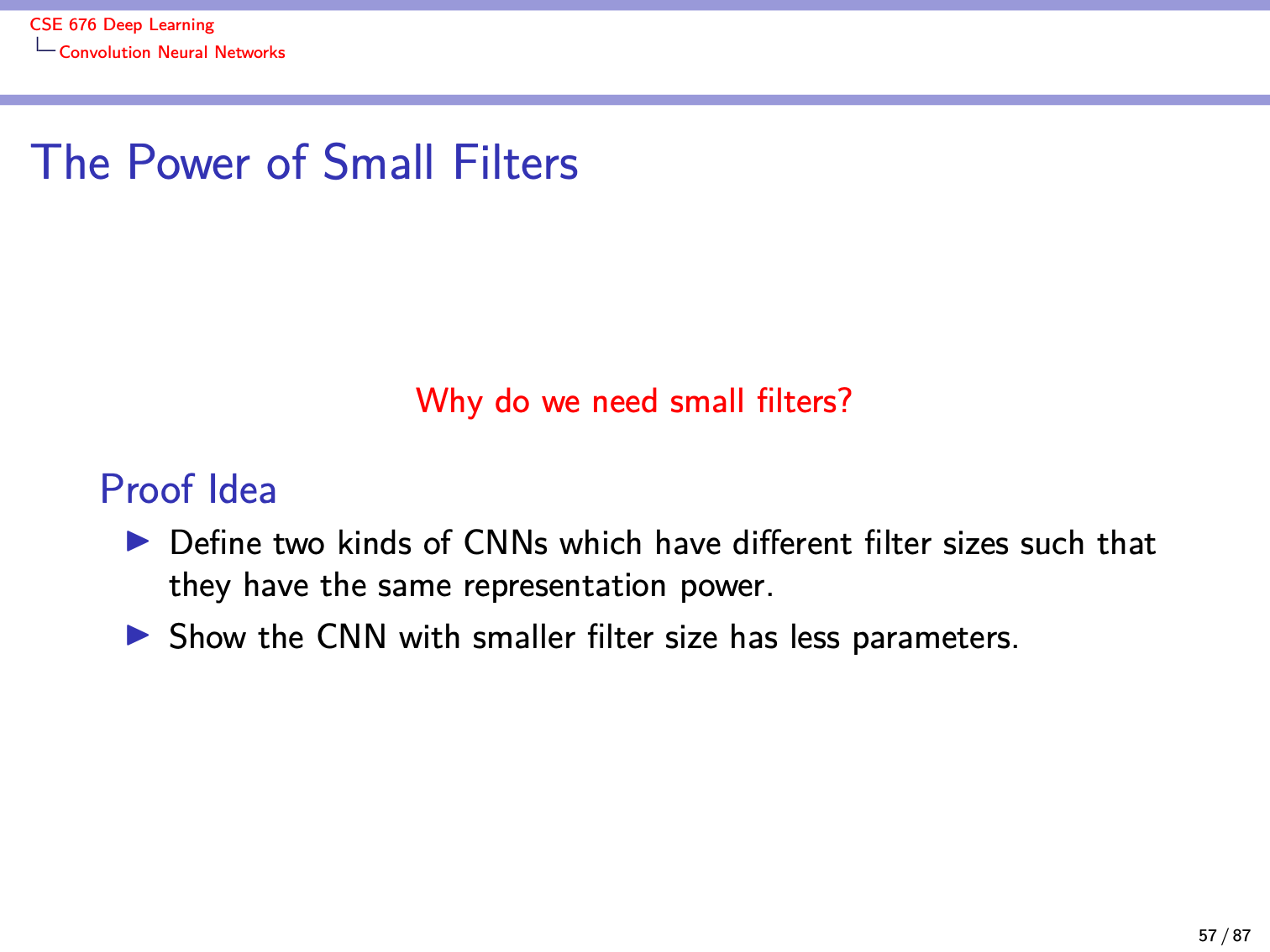

Slide 71

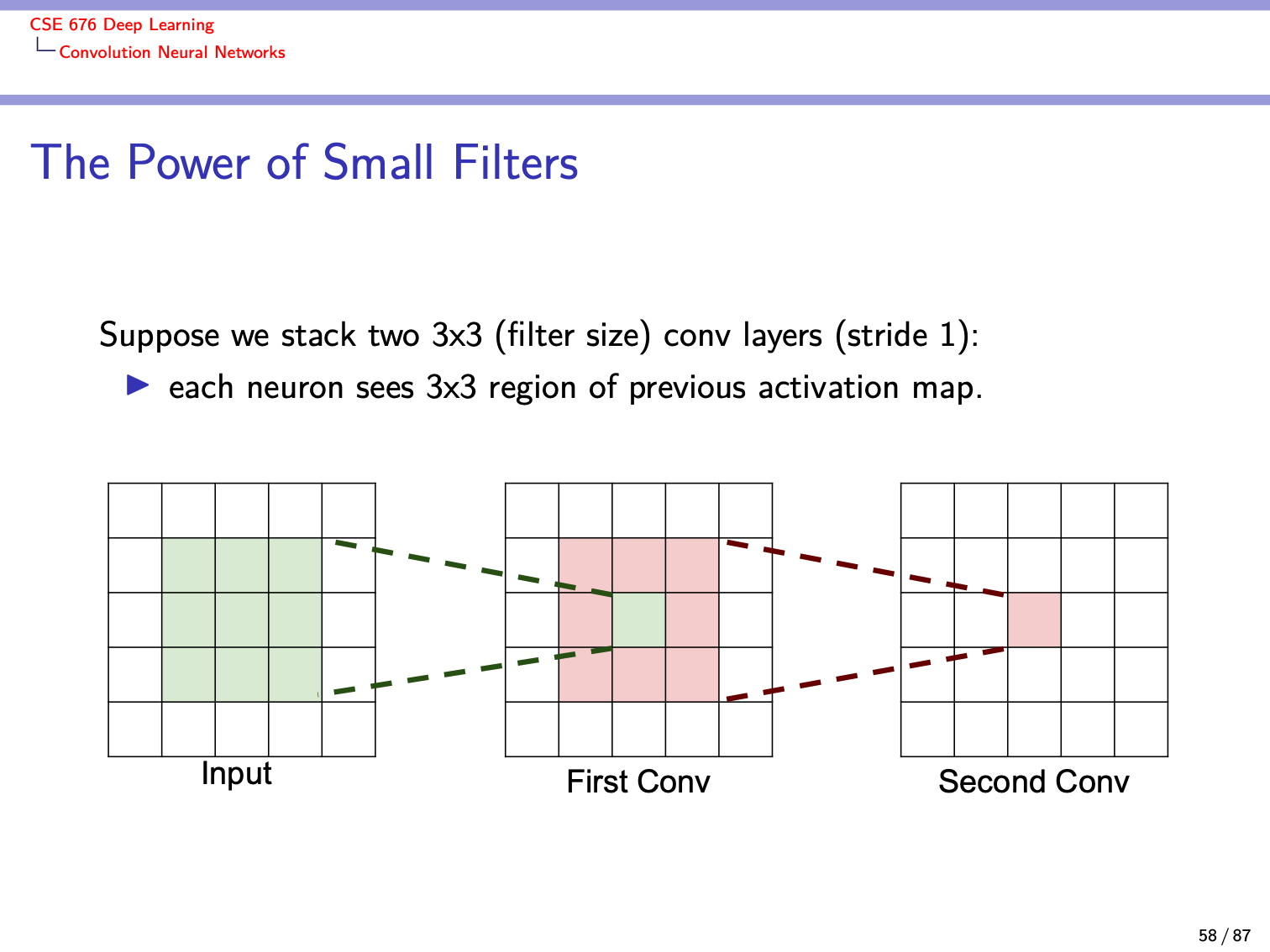

Slide 72

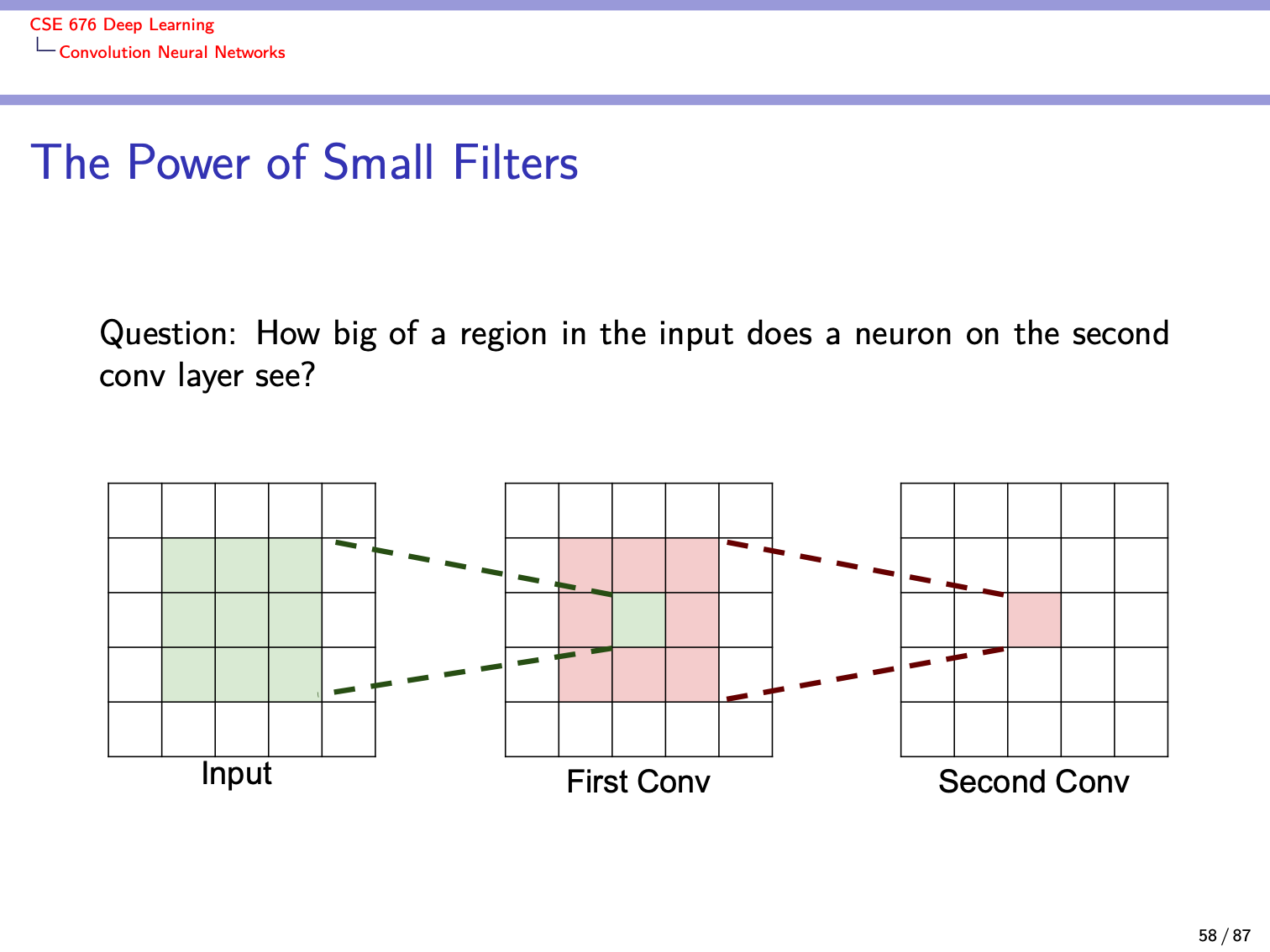

Slide 73

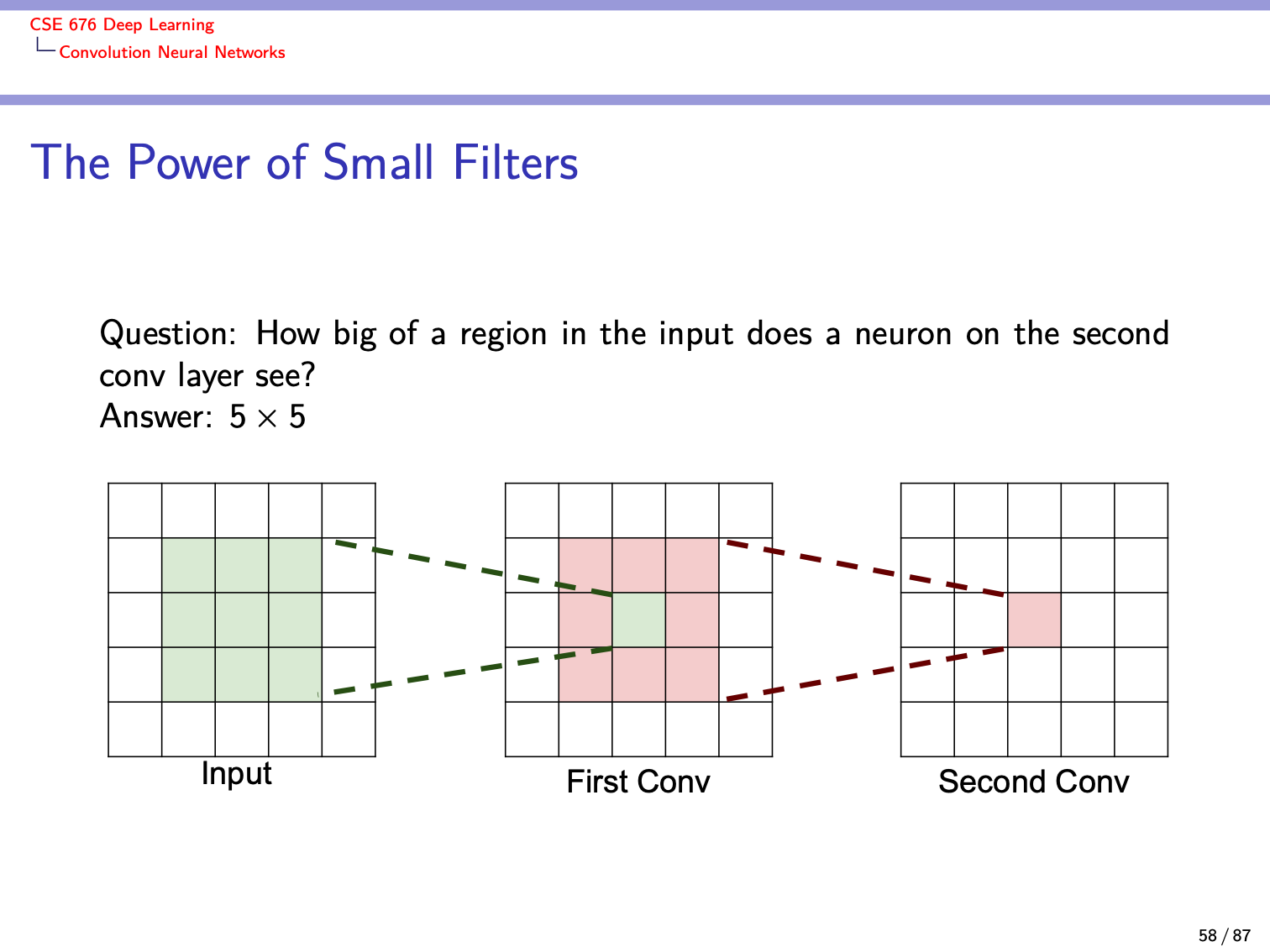

Slide 74

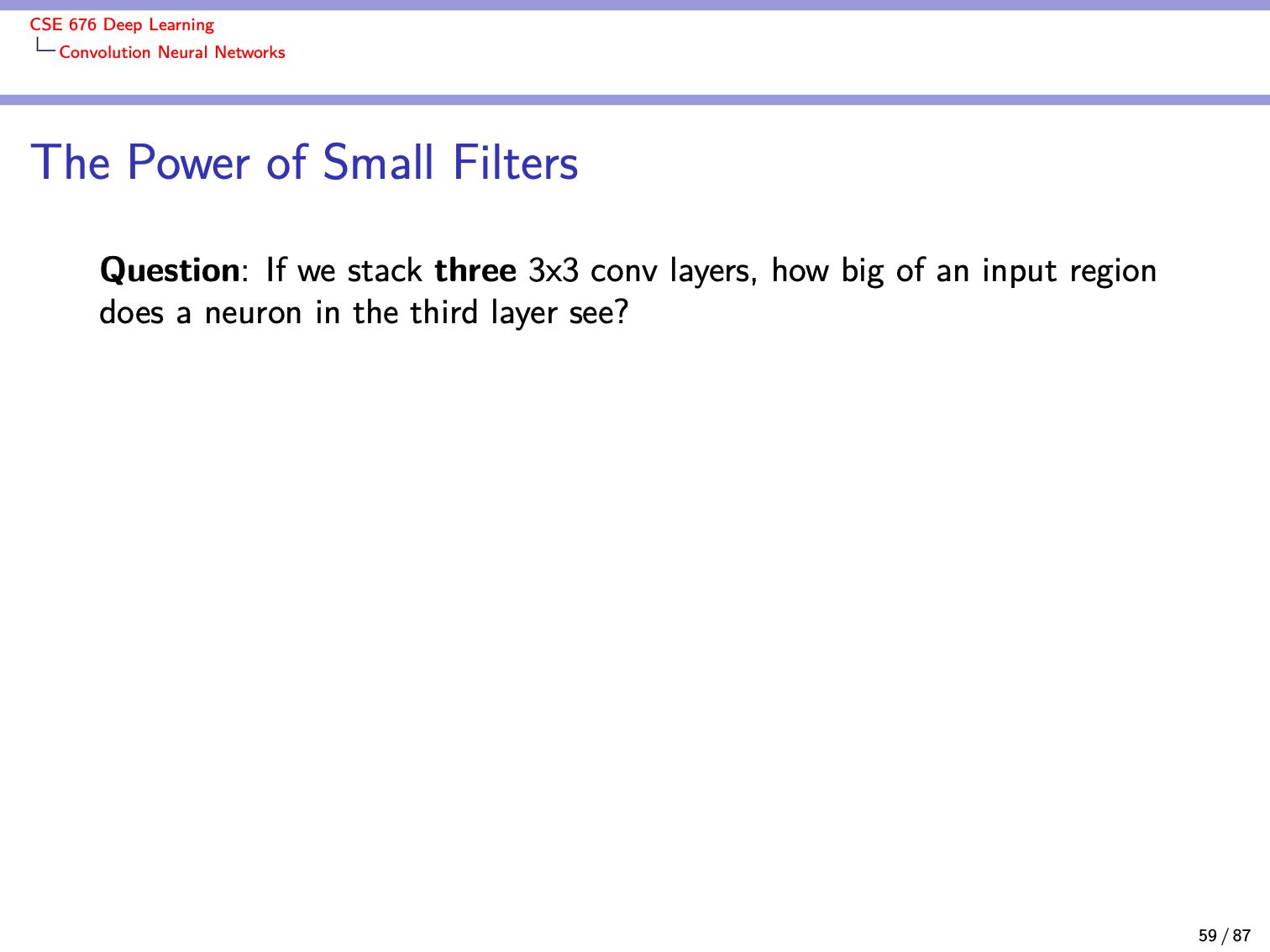

Slide 75

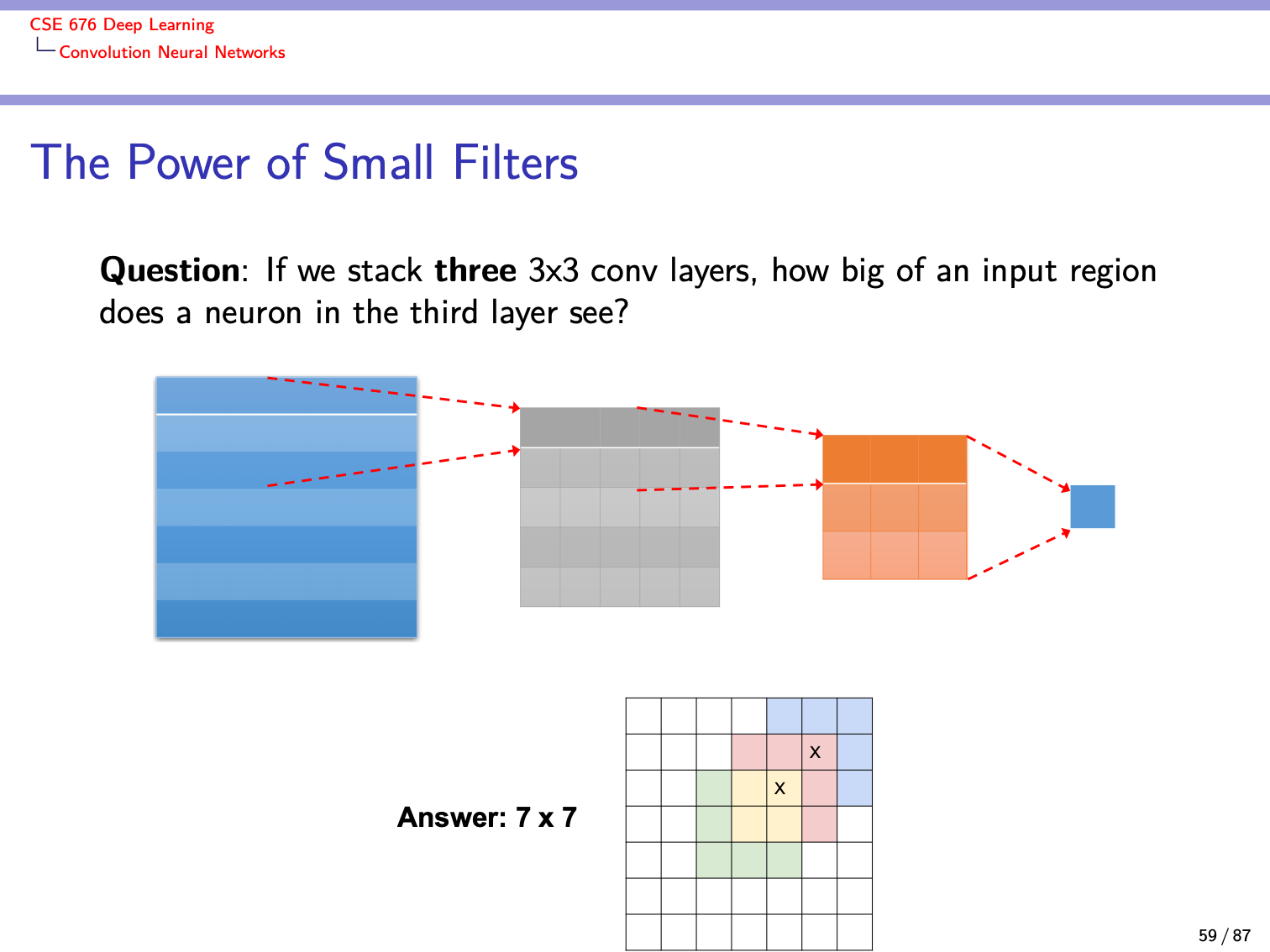

Slide 76

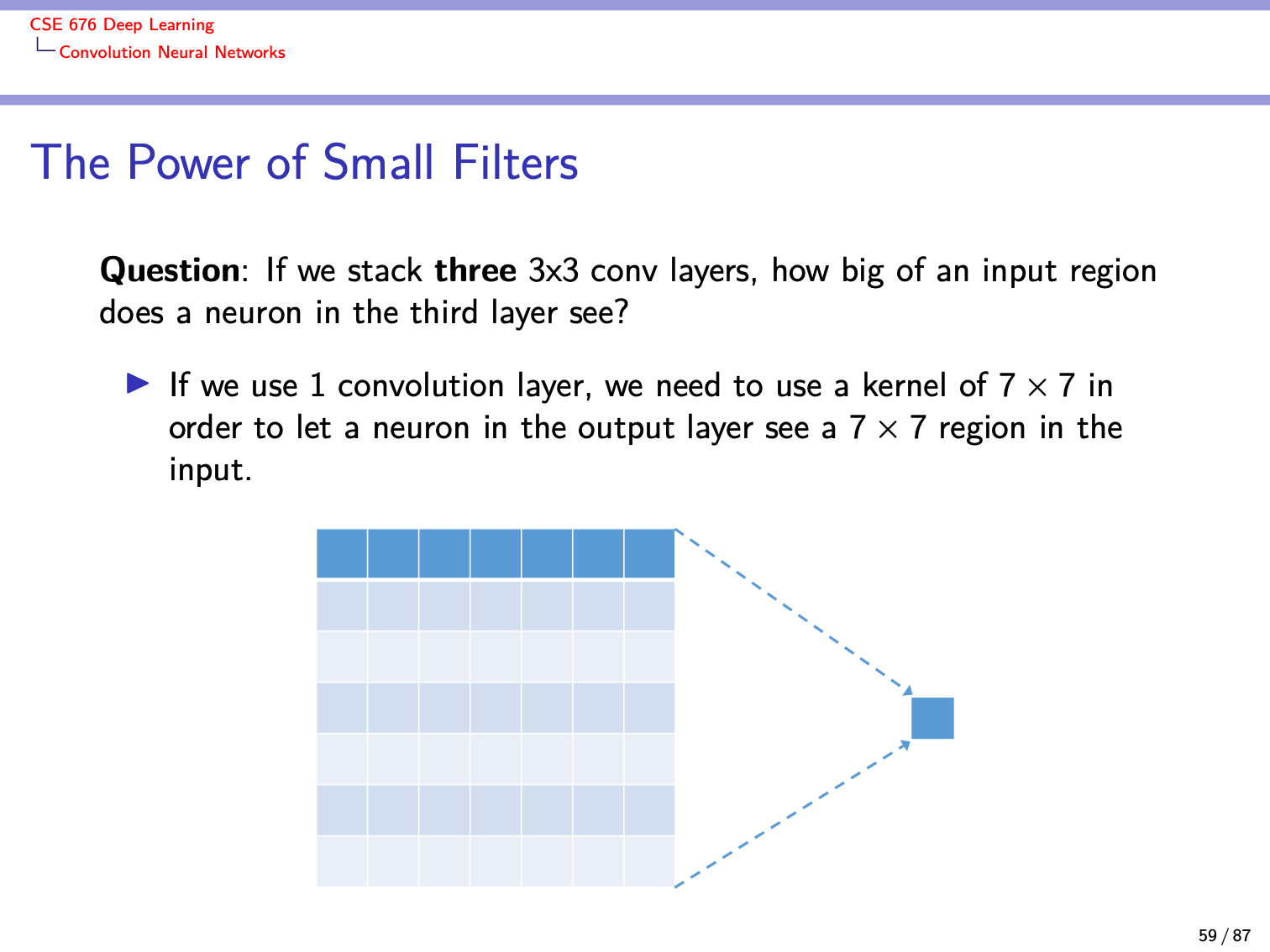

Slide 77

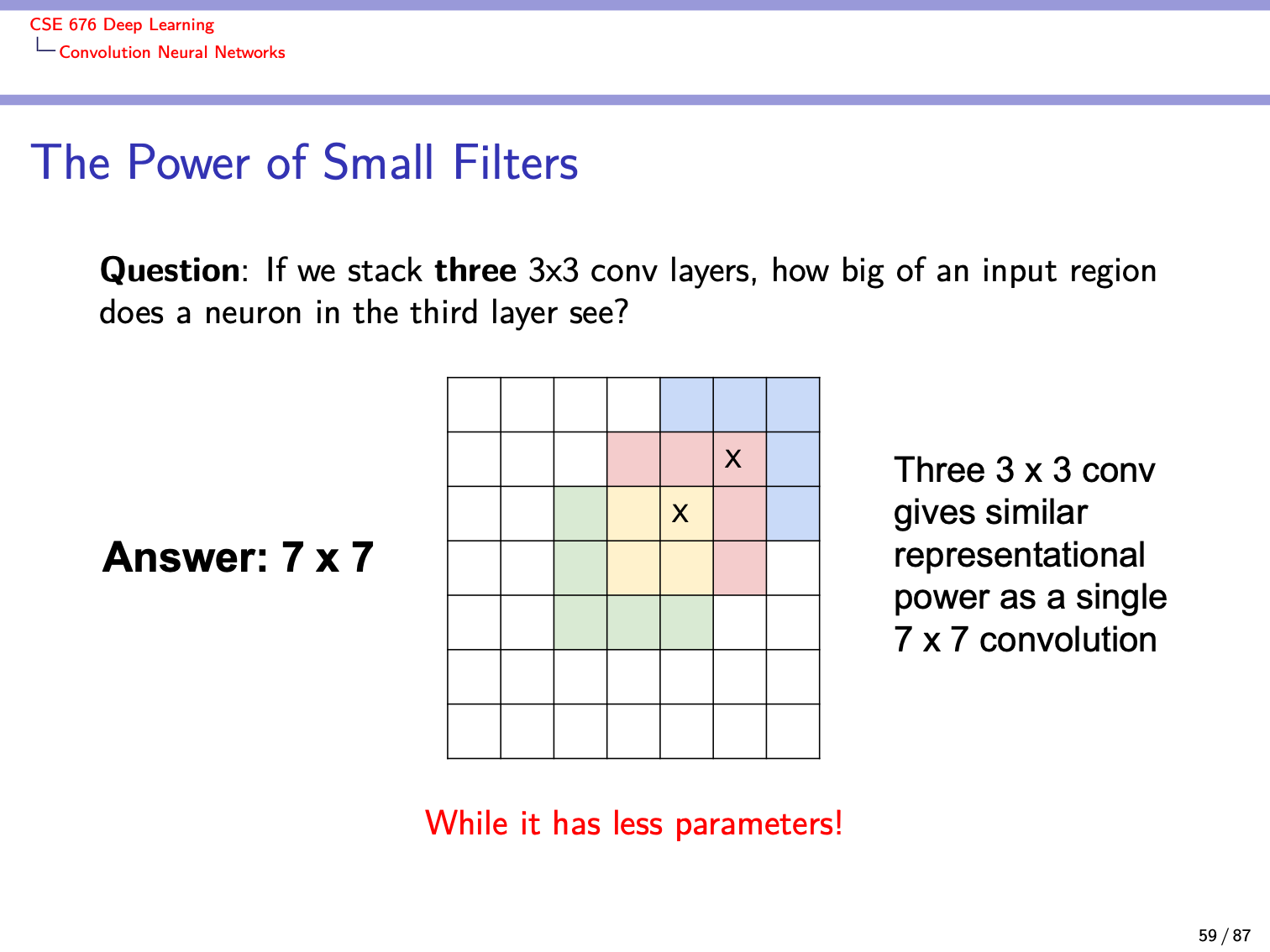

Slide 78

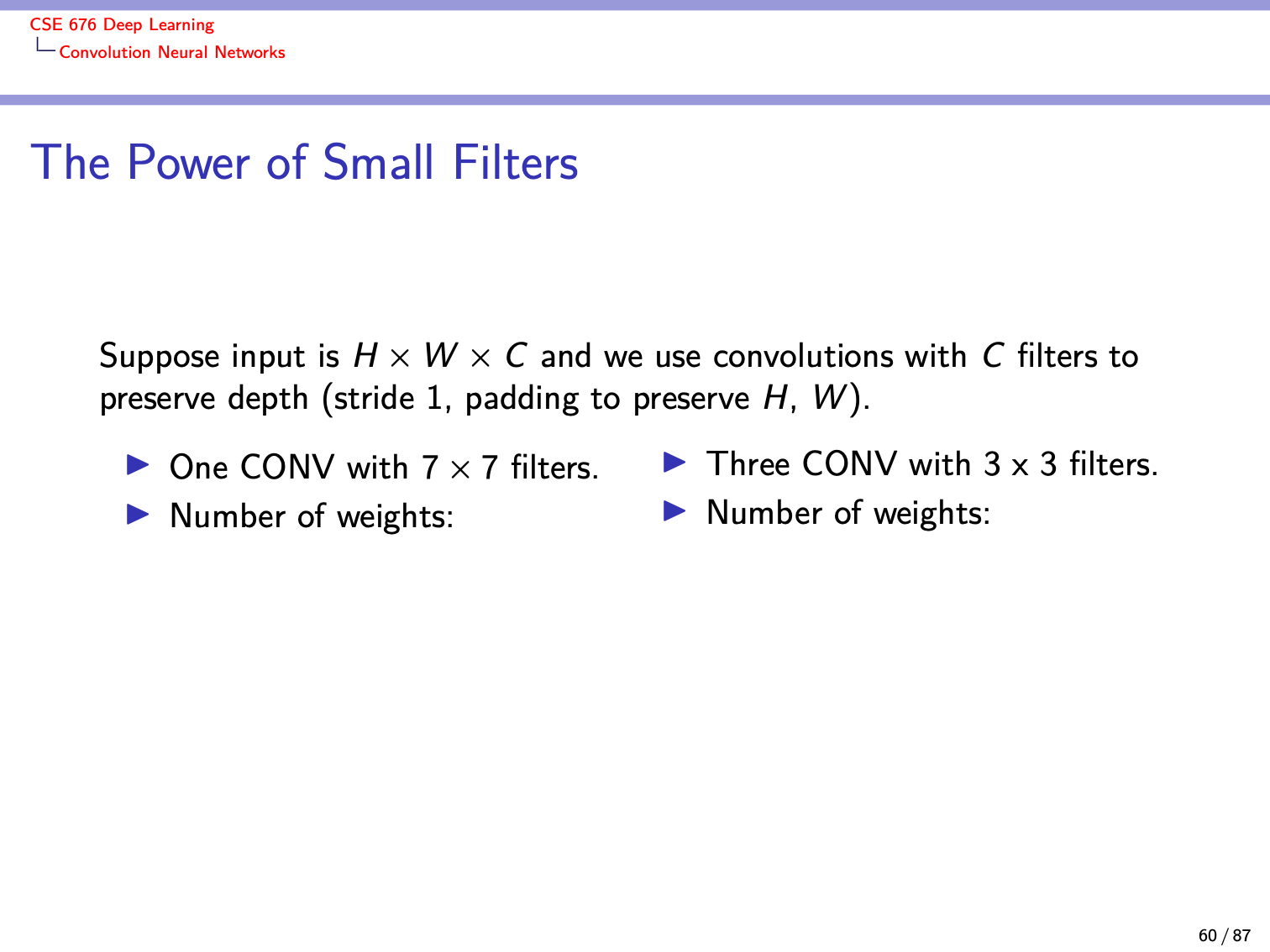

Slide 79

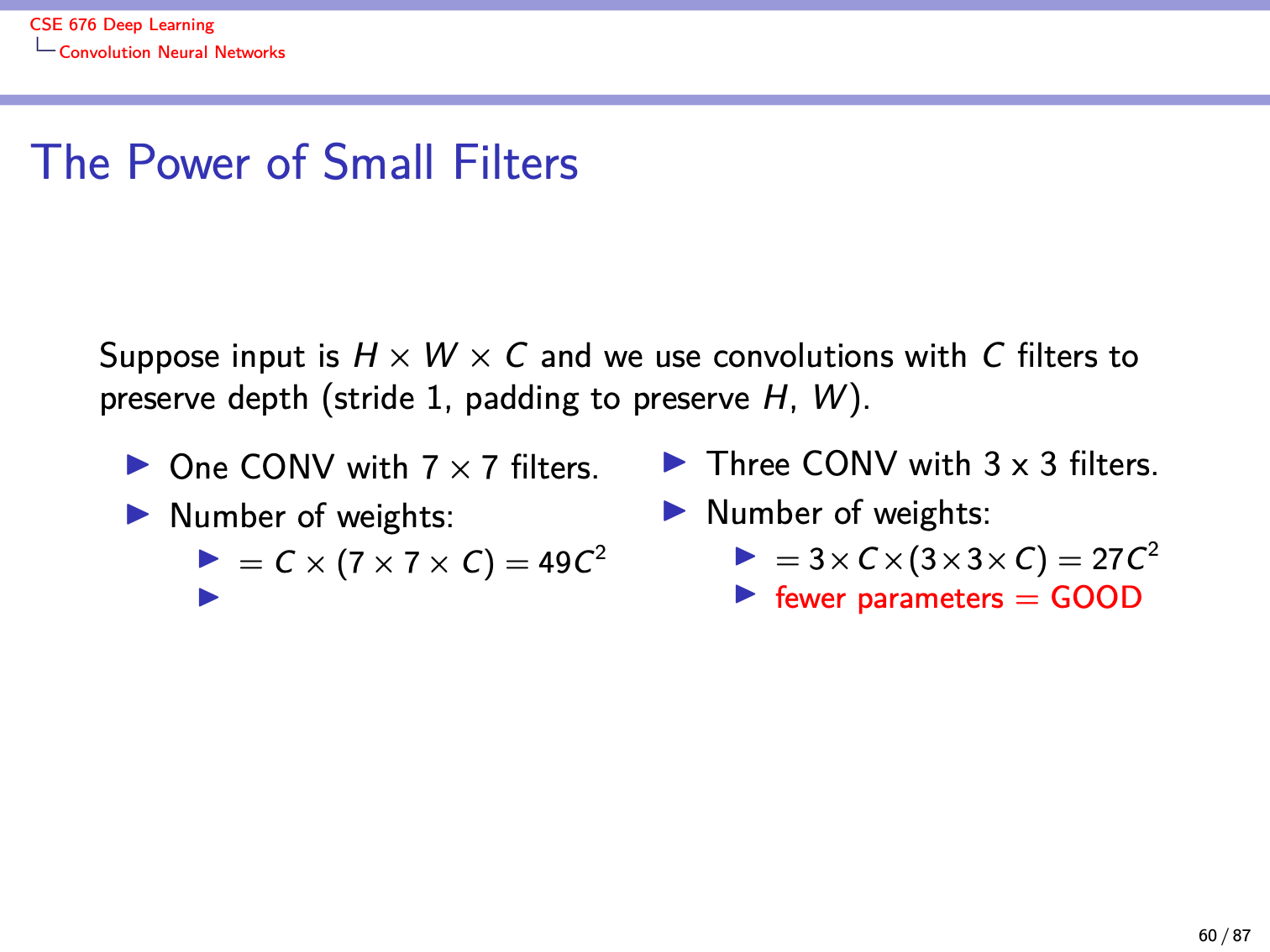

Slide 80

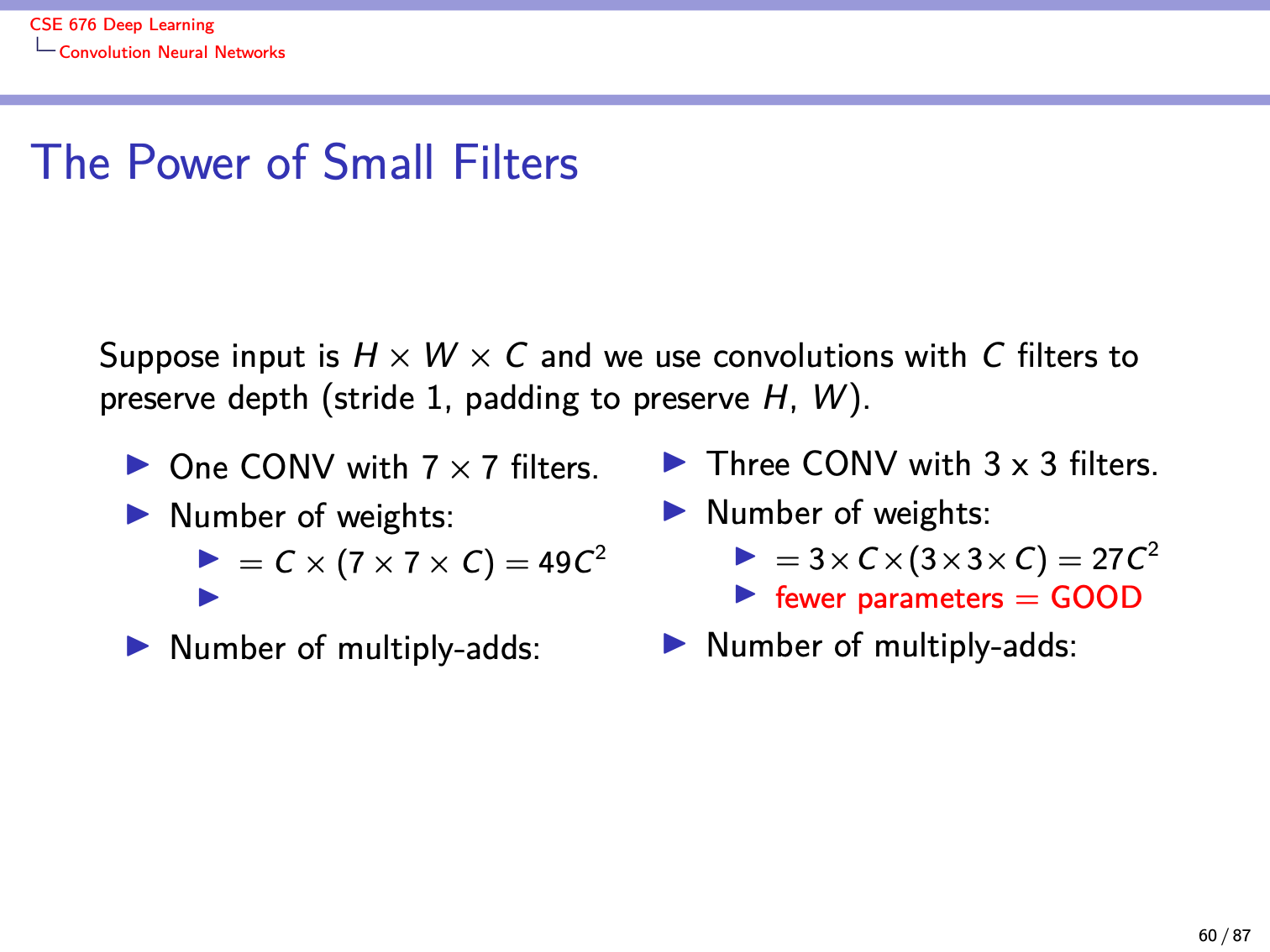

Slide 81

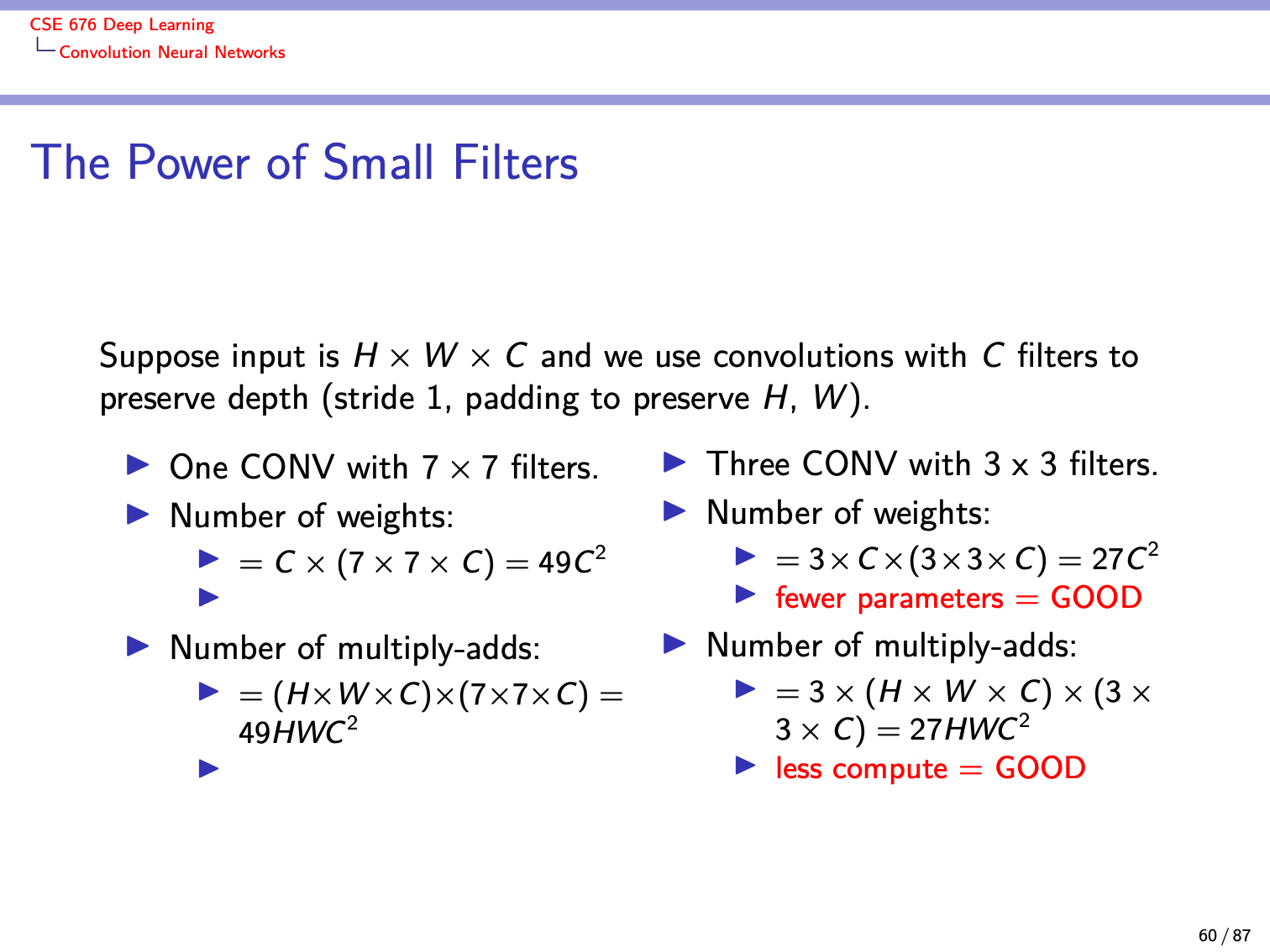

Slide 82

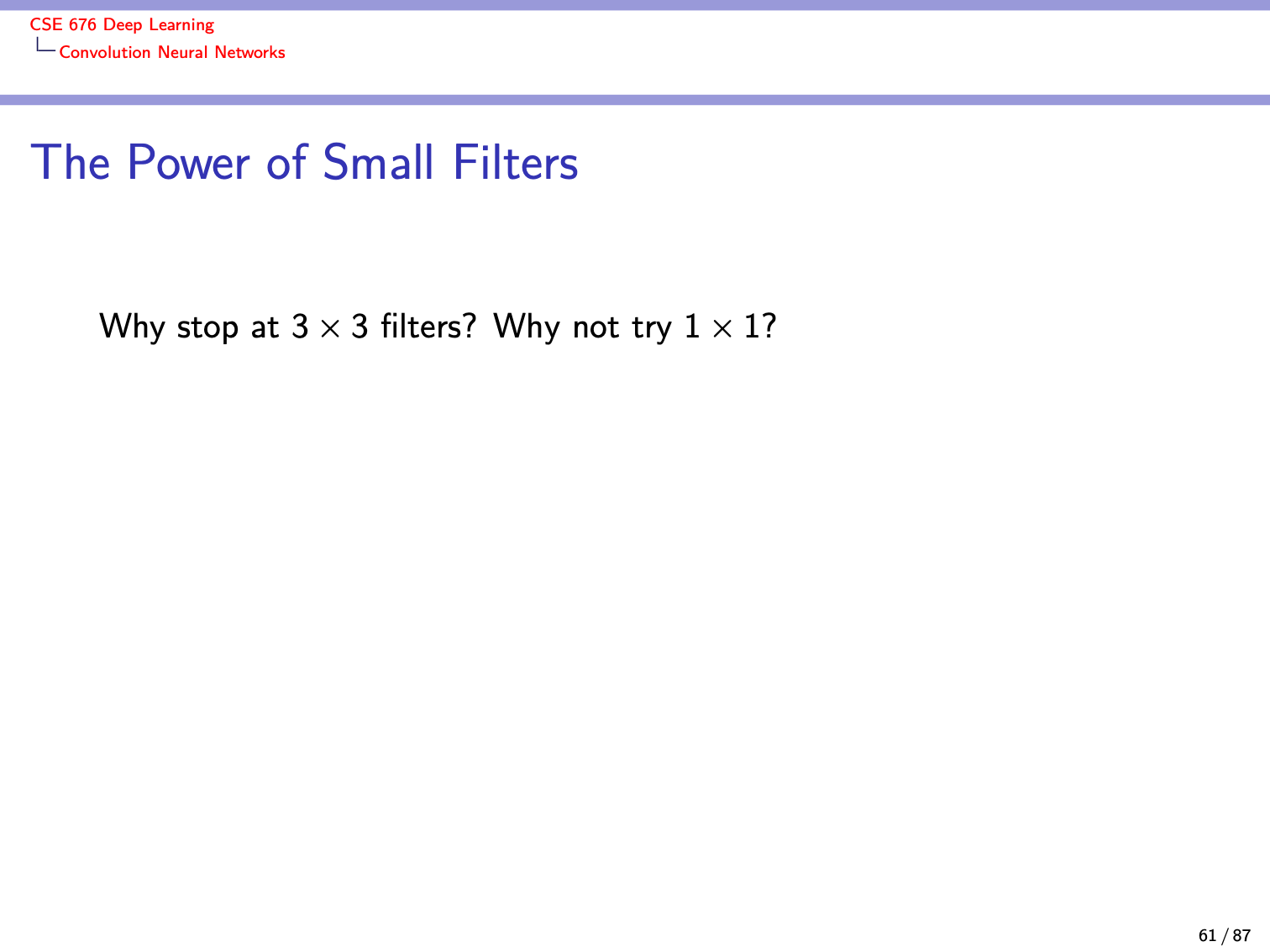

Slide 83

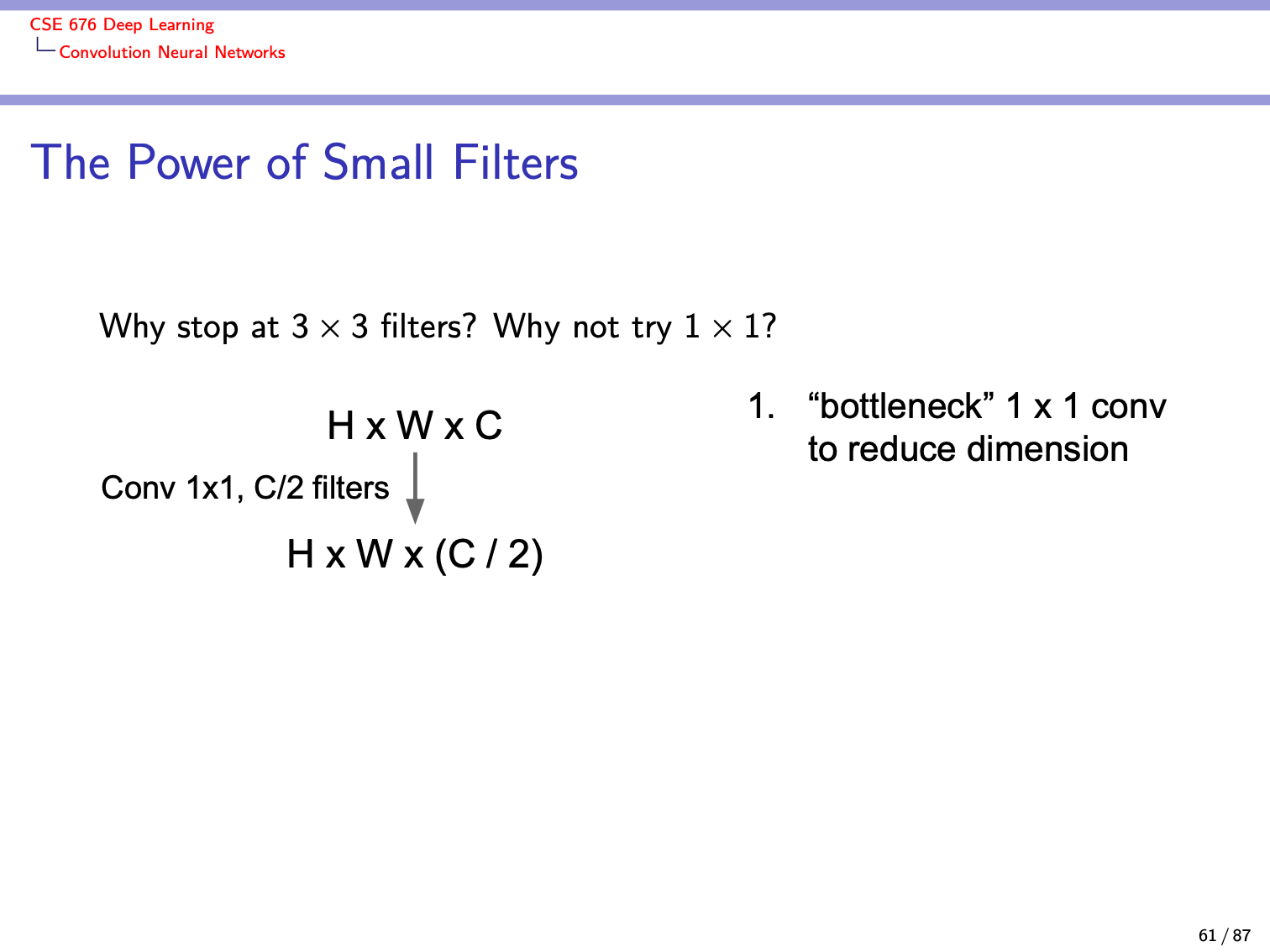

Slide 84

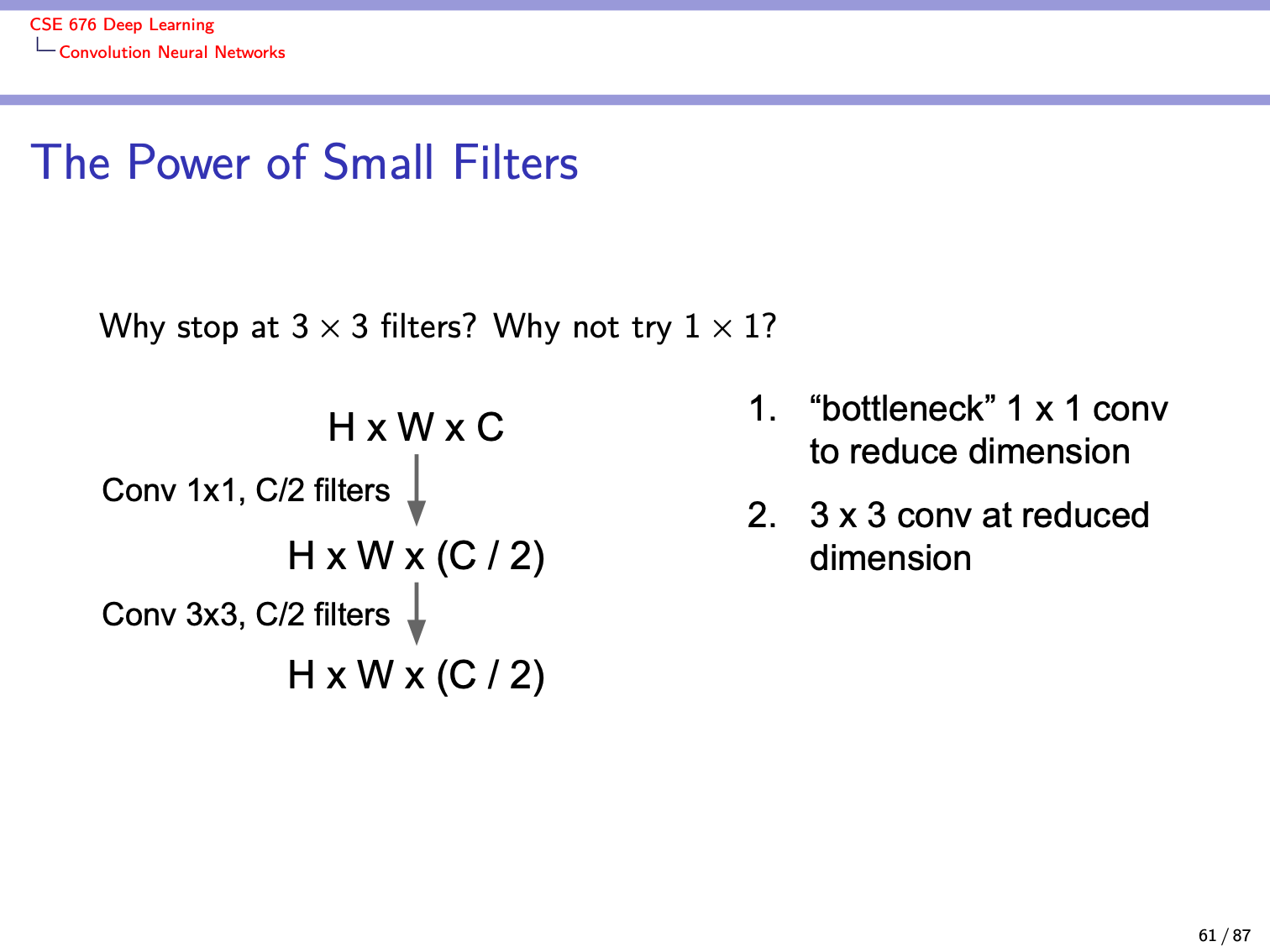

Slide 85

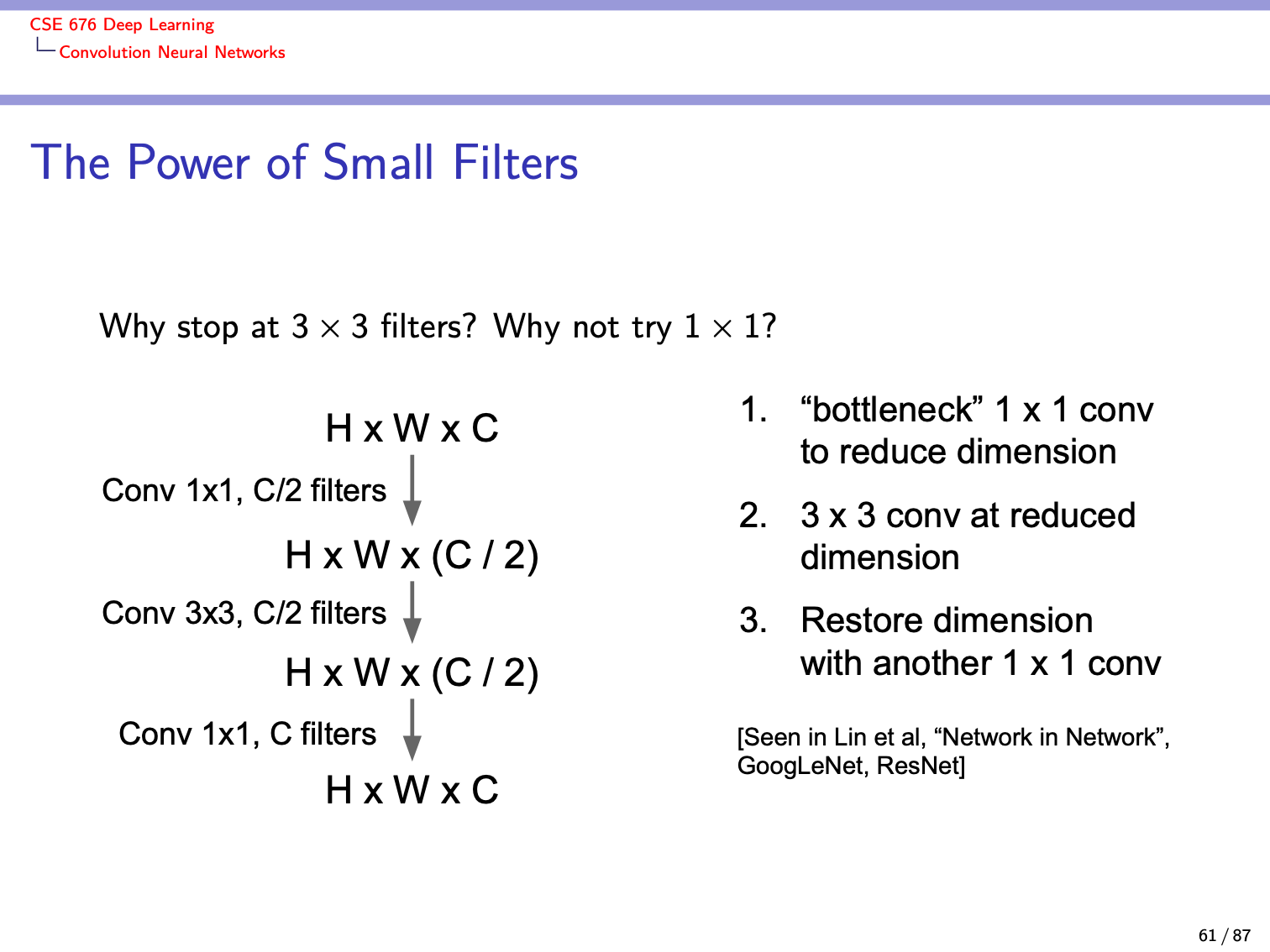

Slide 86

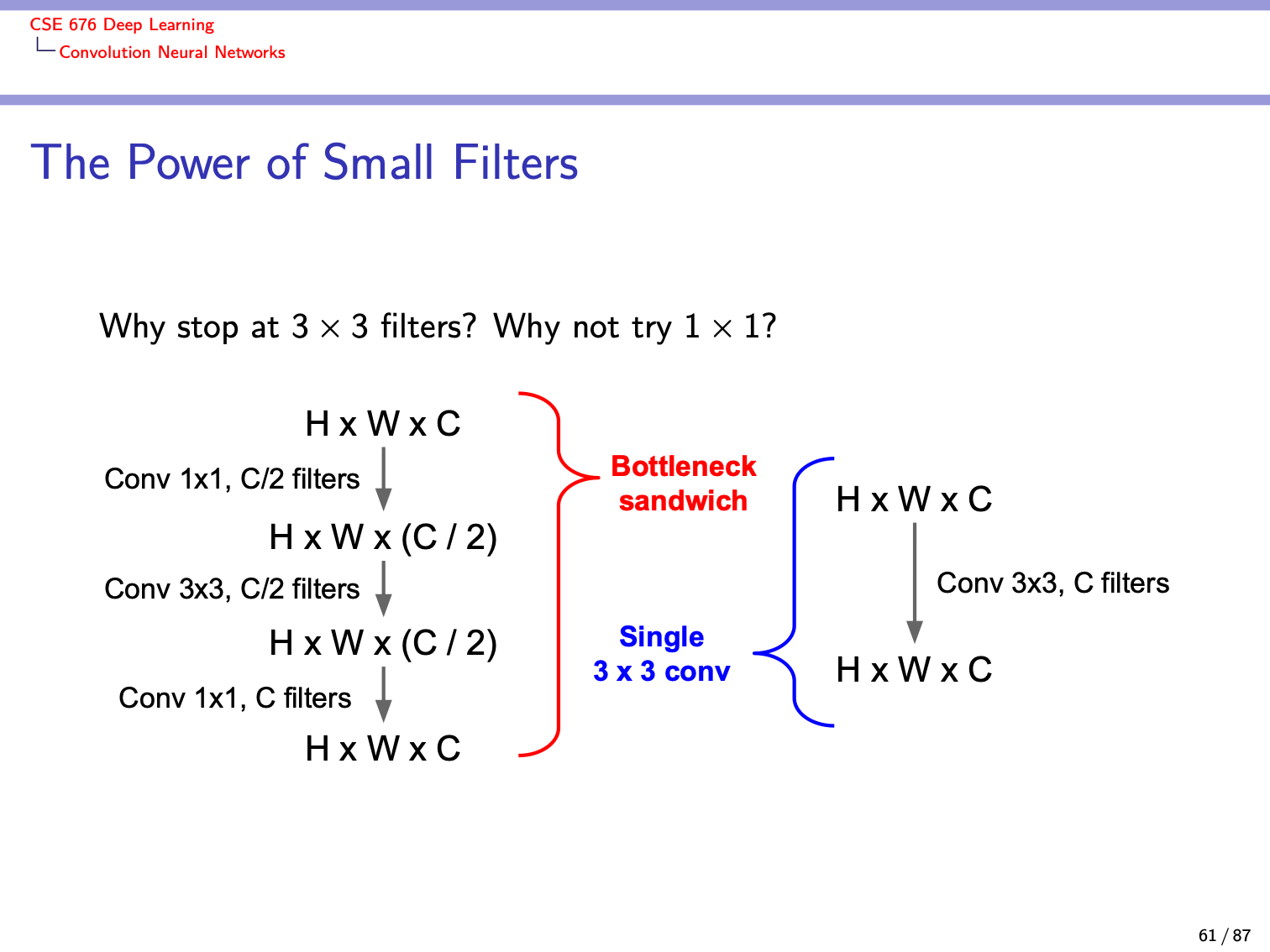

Slide 87

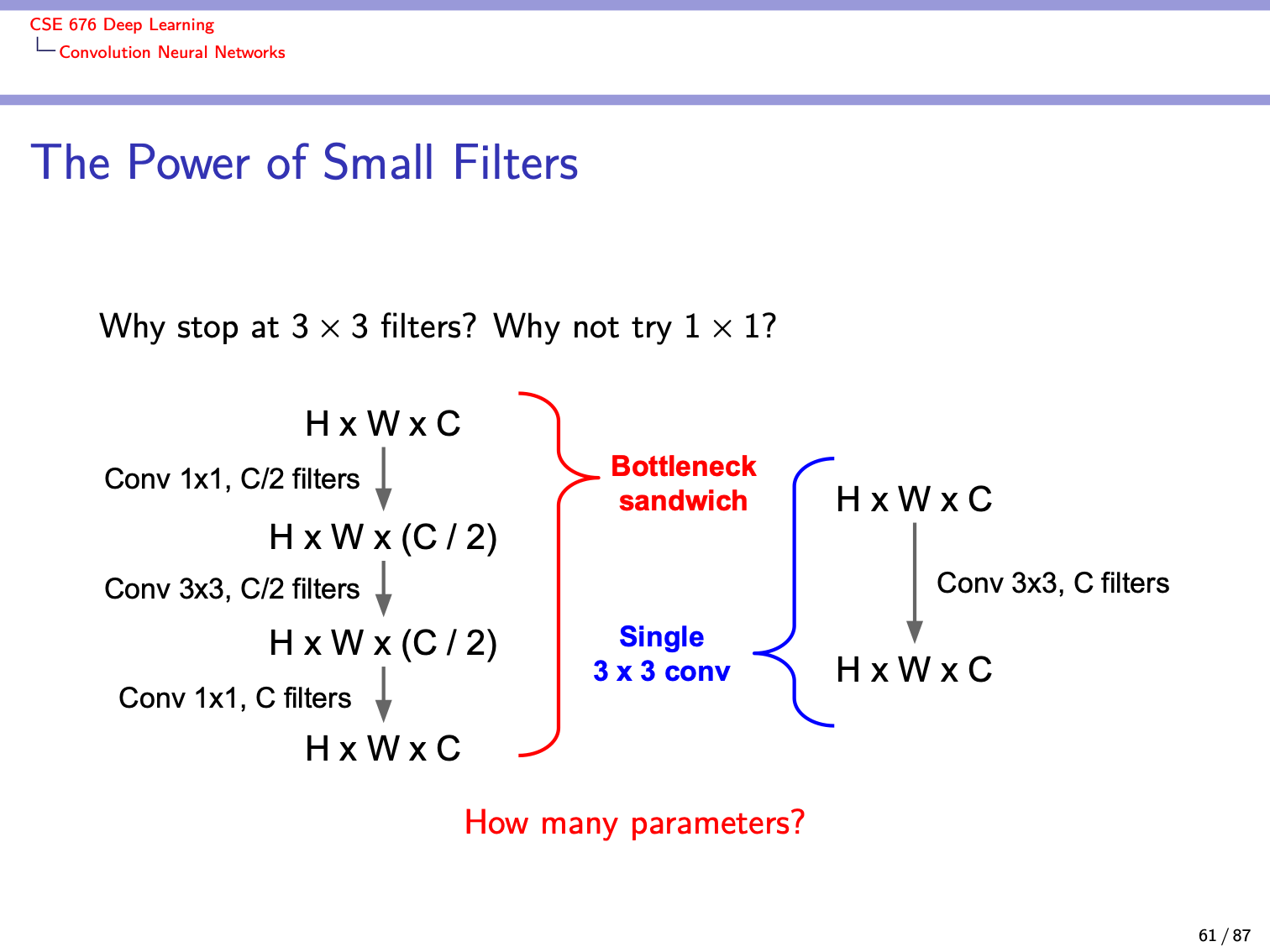

Slide 88

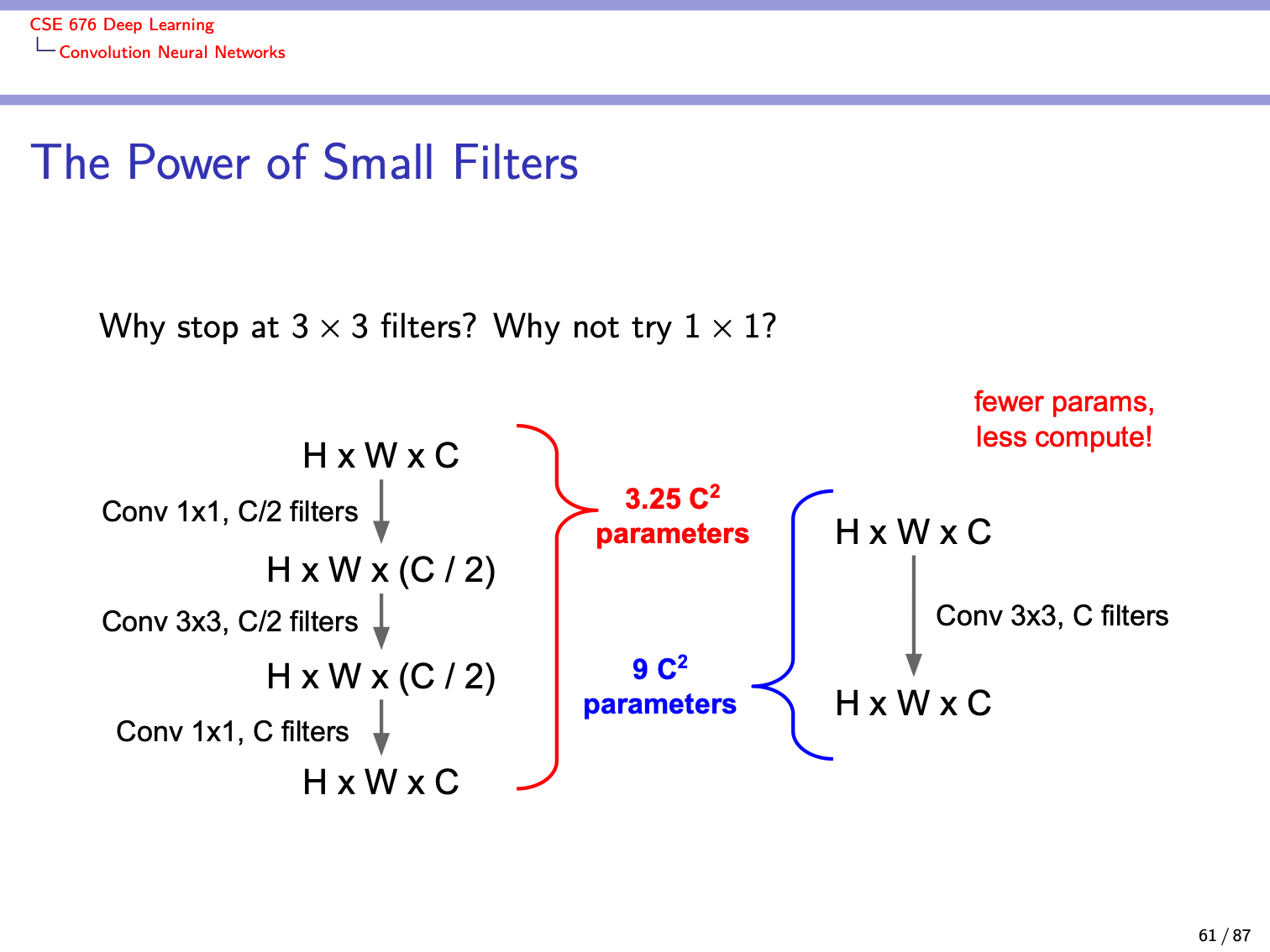

Slide 89

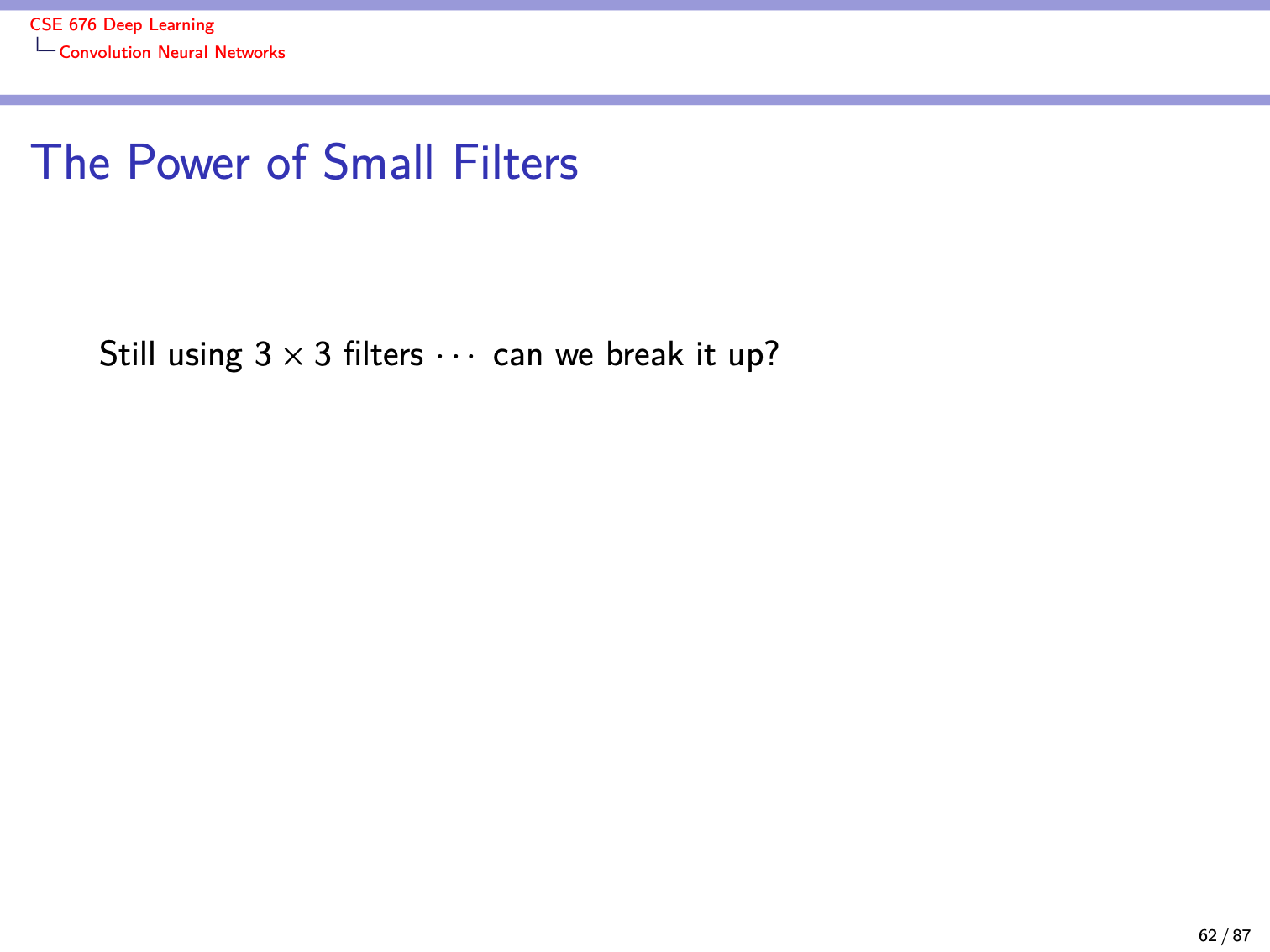

Slide 90

Slide 91

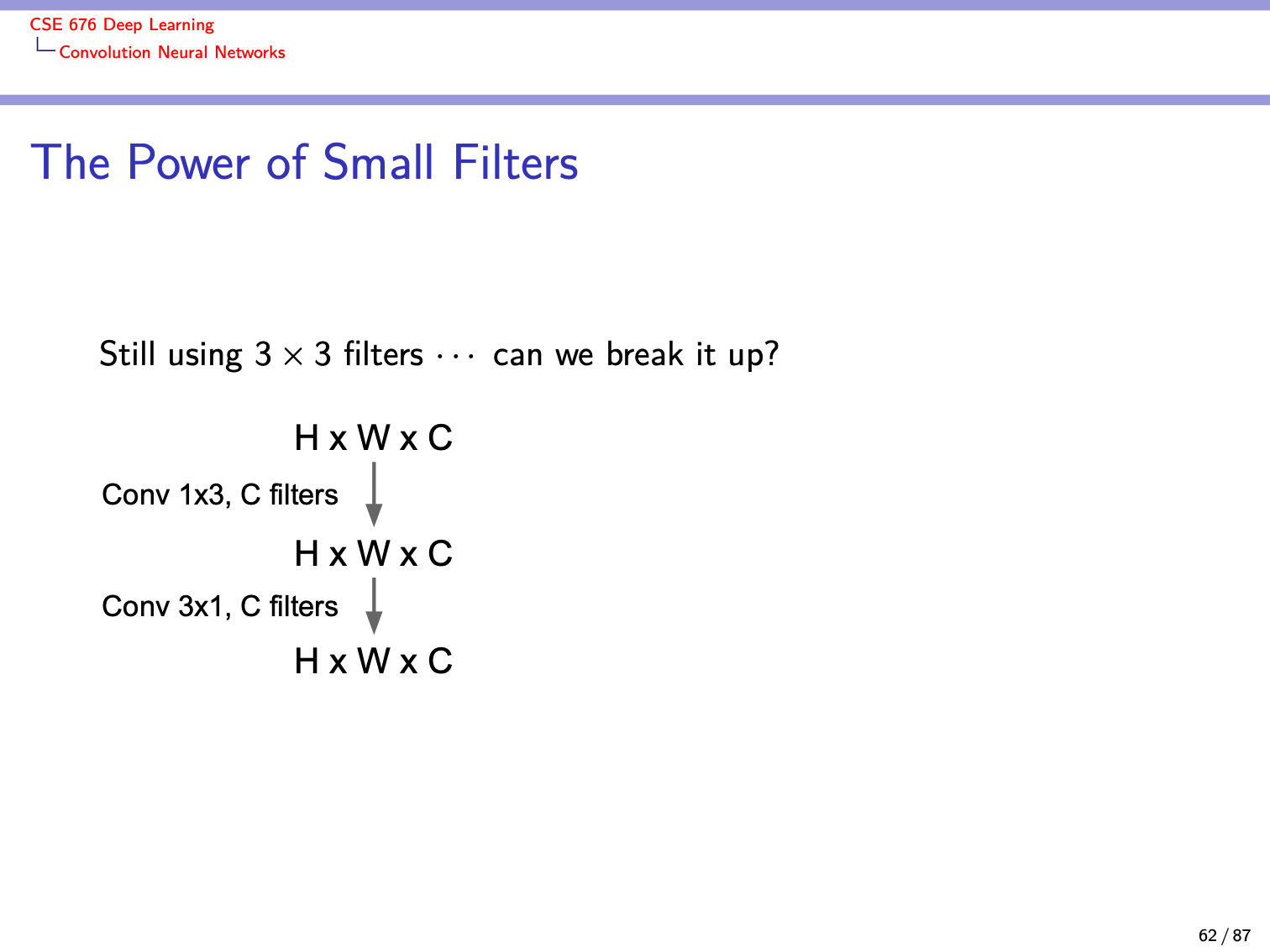

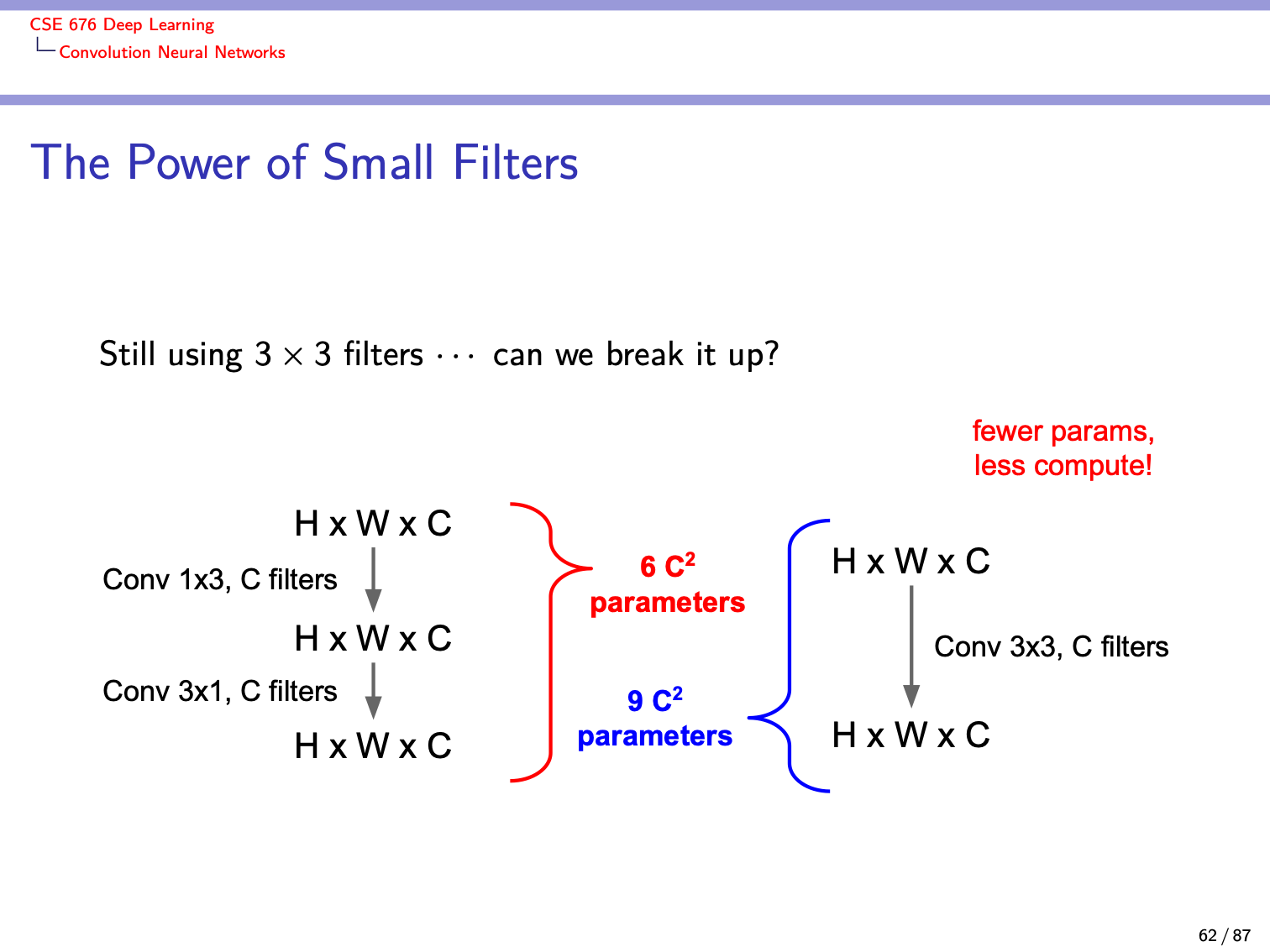

Slide 92

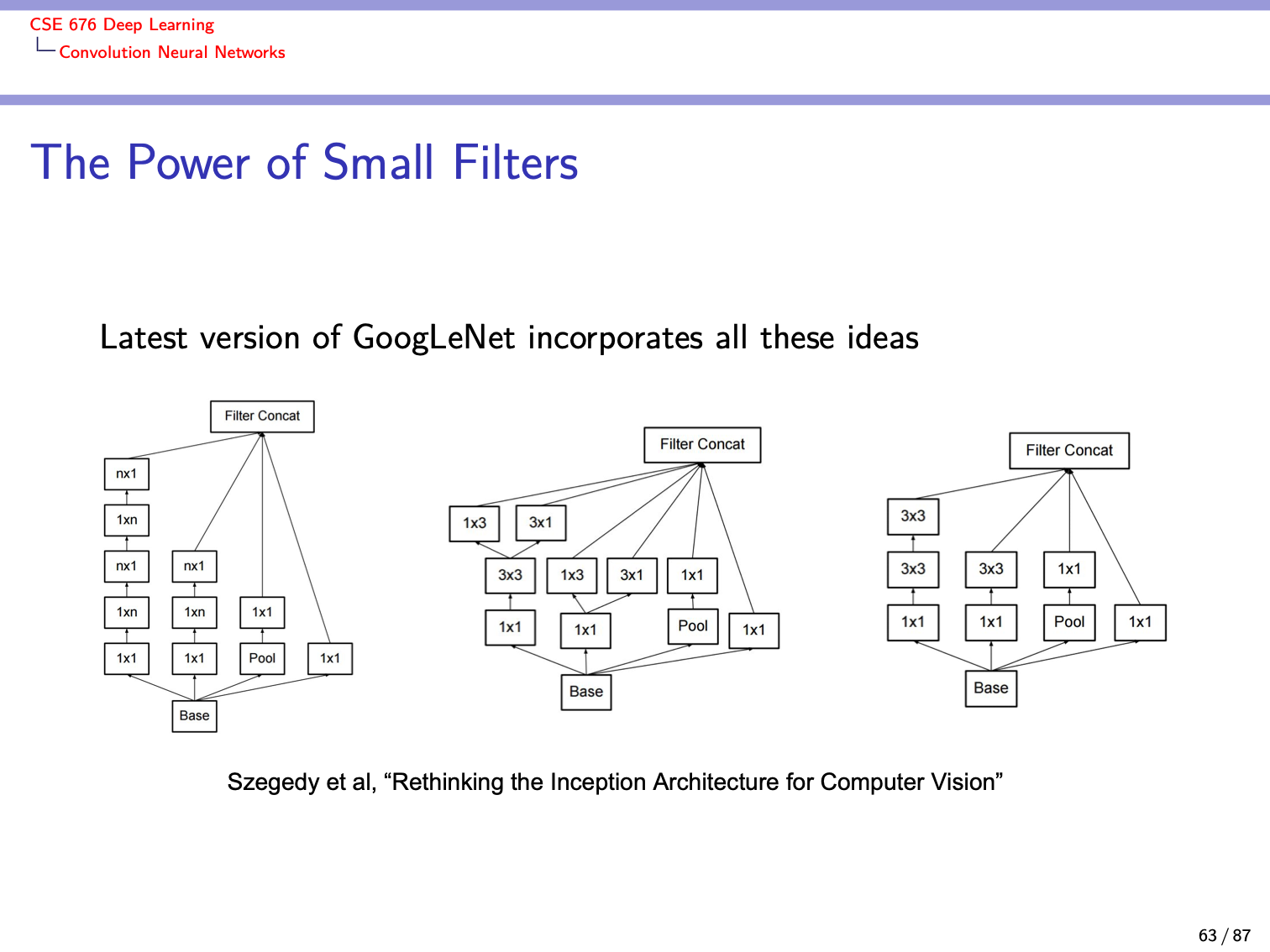

Slide 93

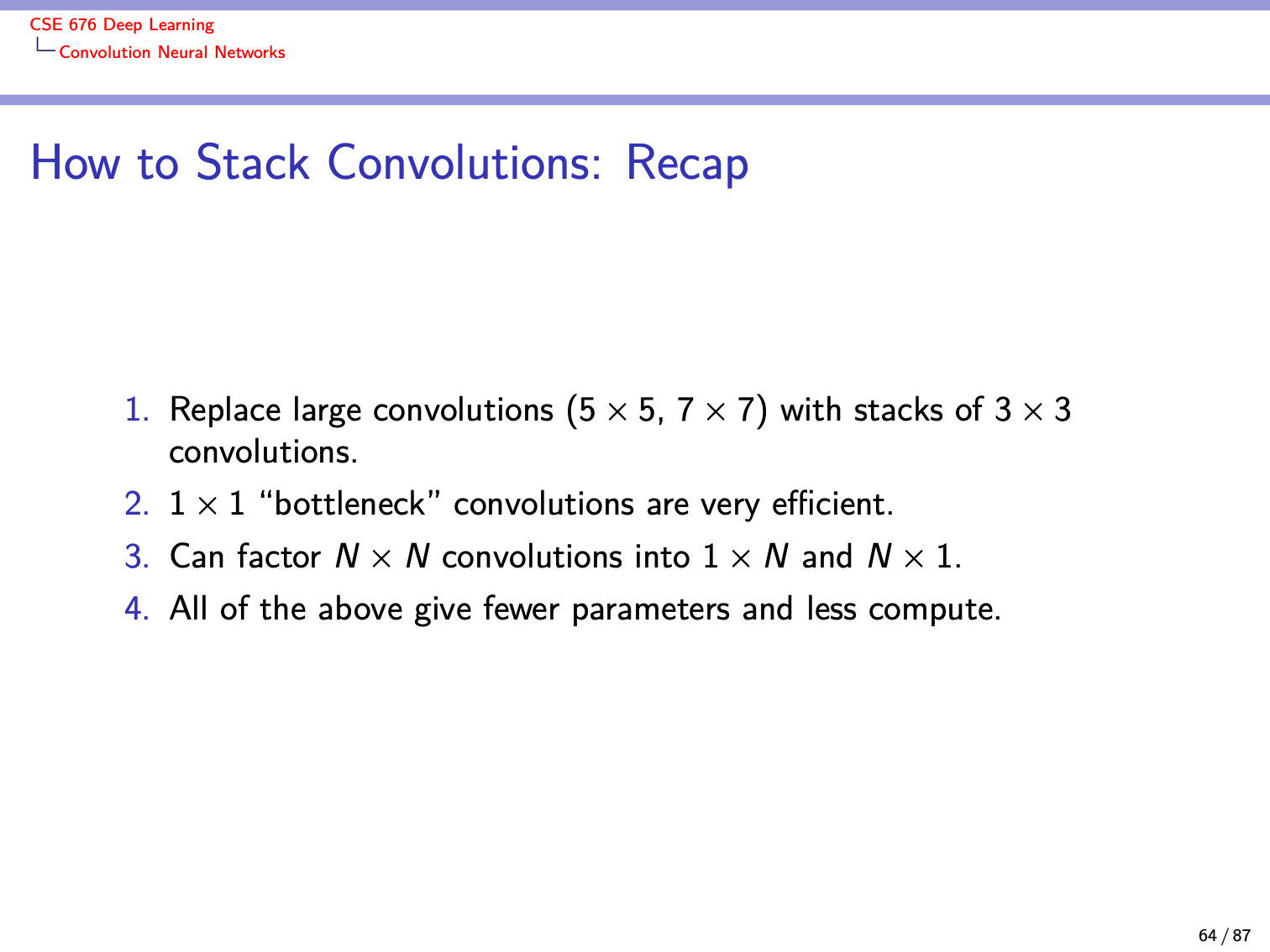

Slide 94

Slide 95

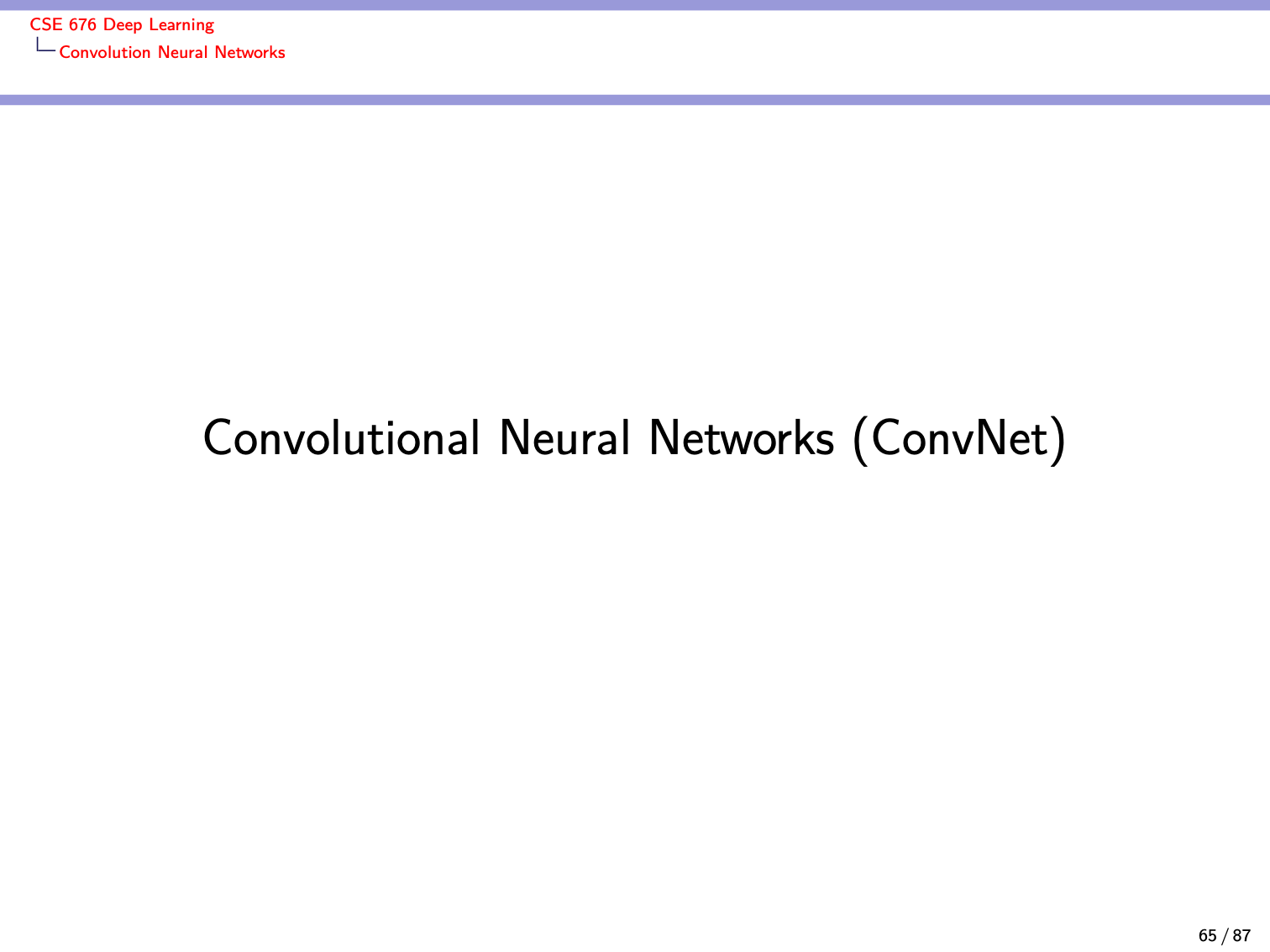

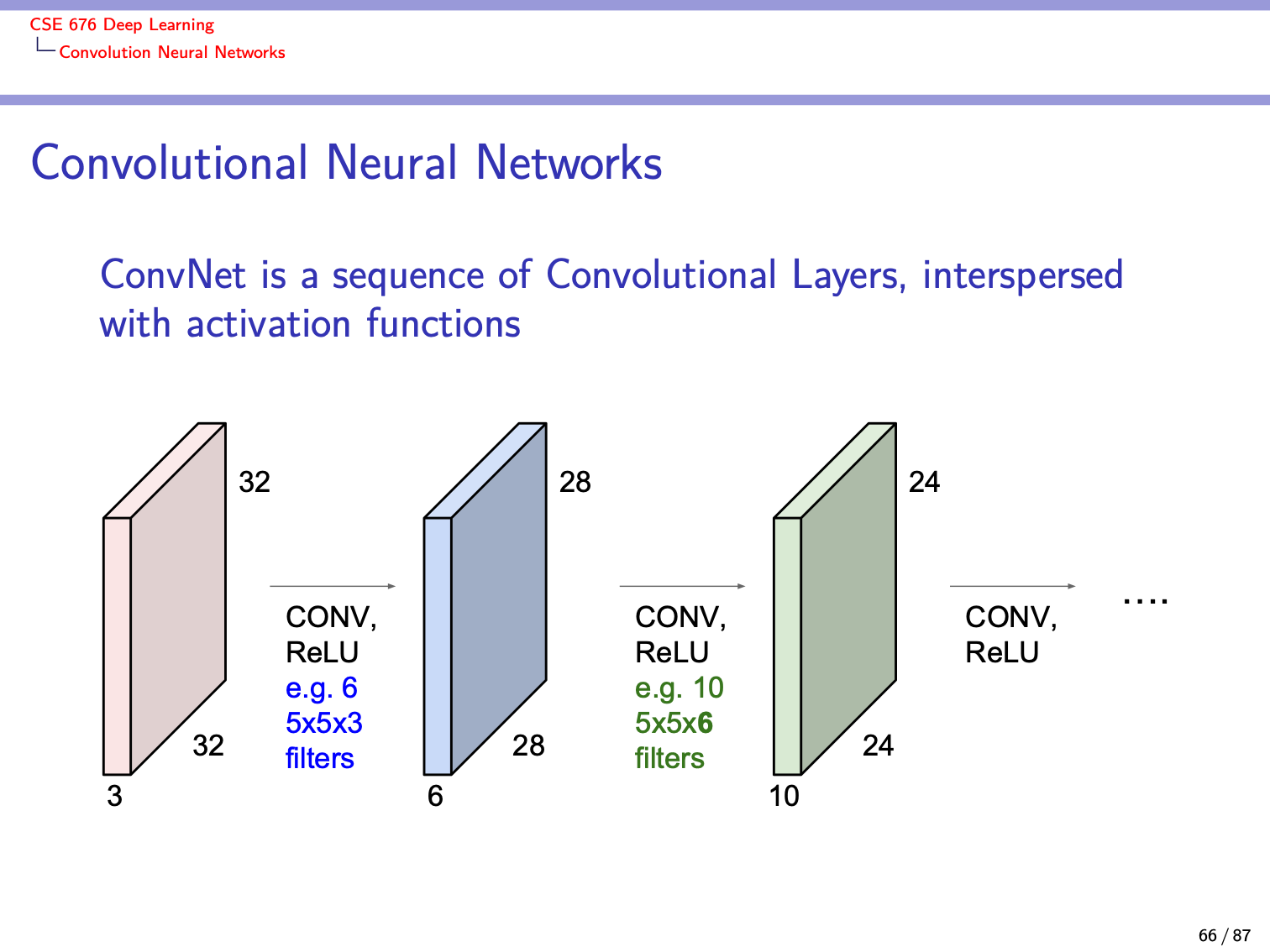

Slide 96

Slide 97

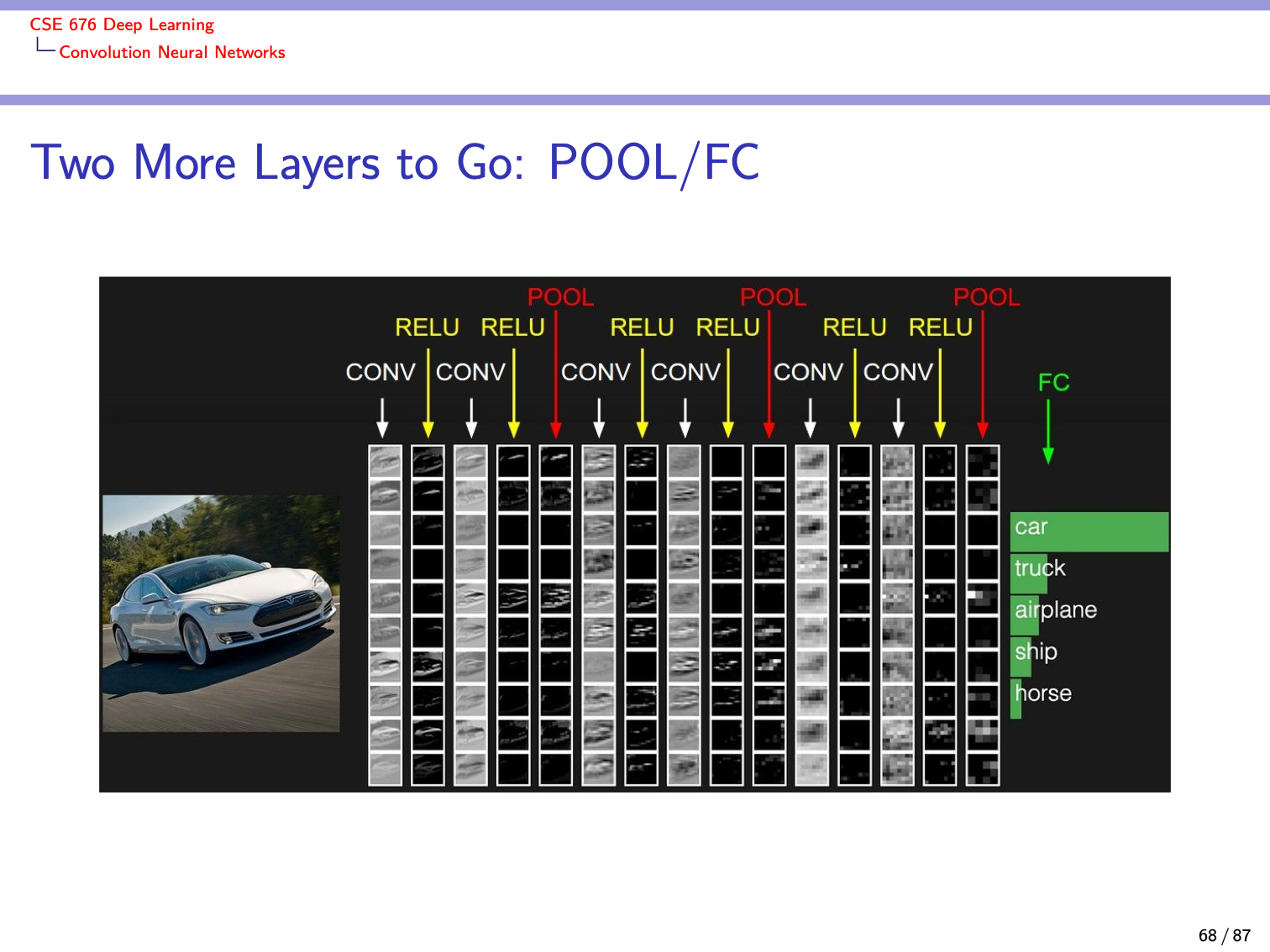

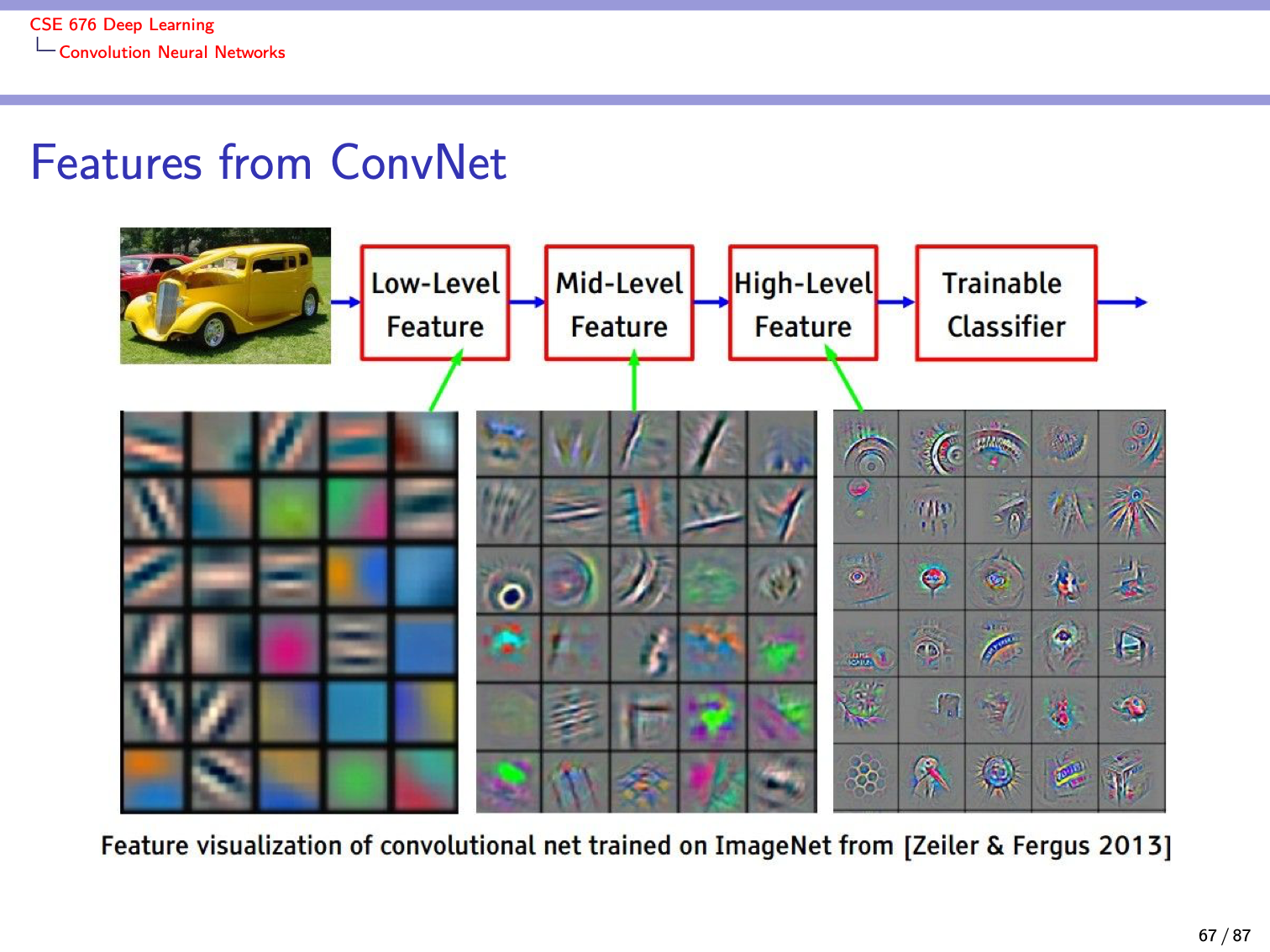

Slide 98

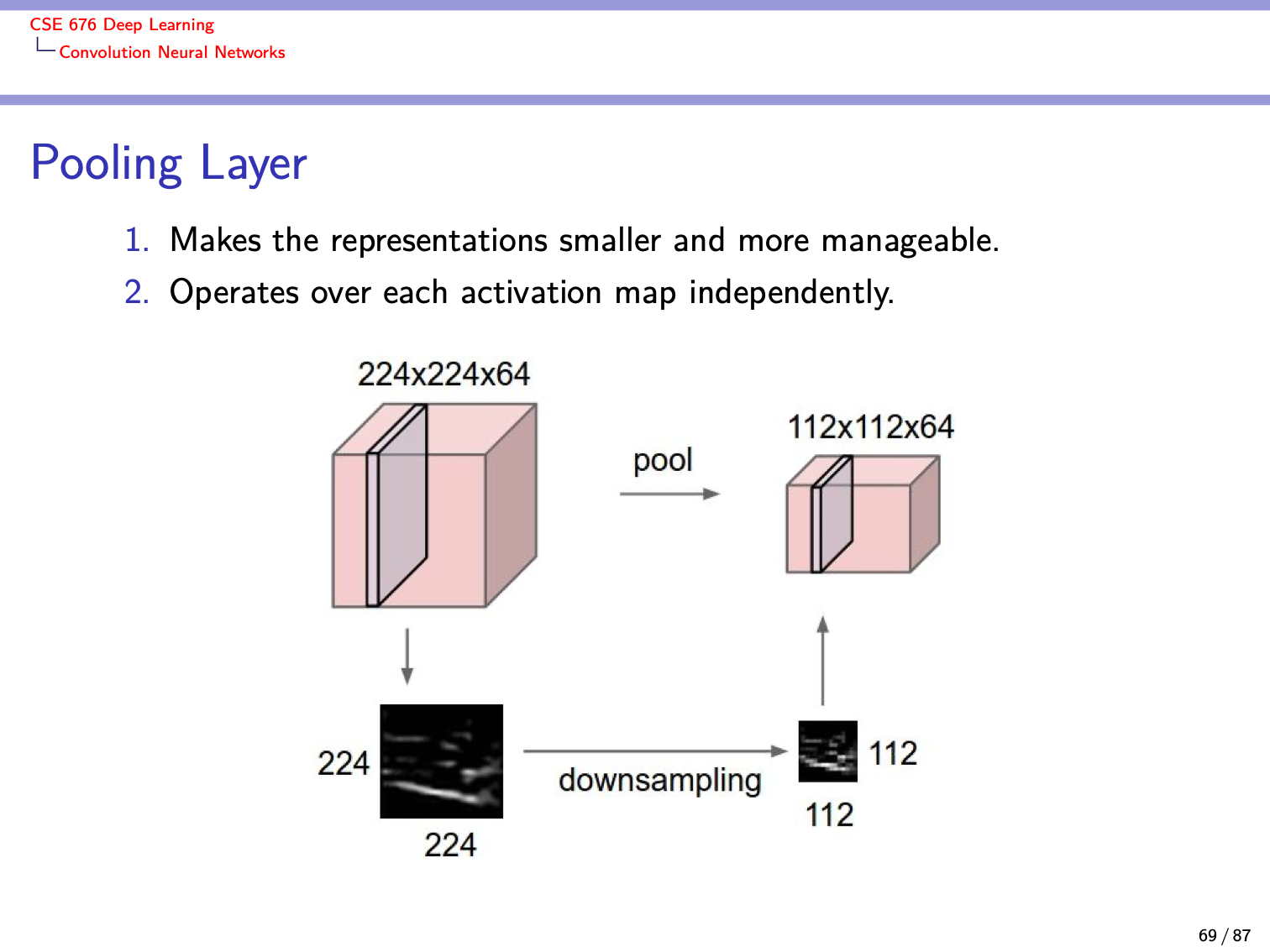

Slide 99

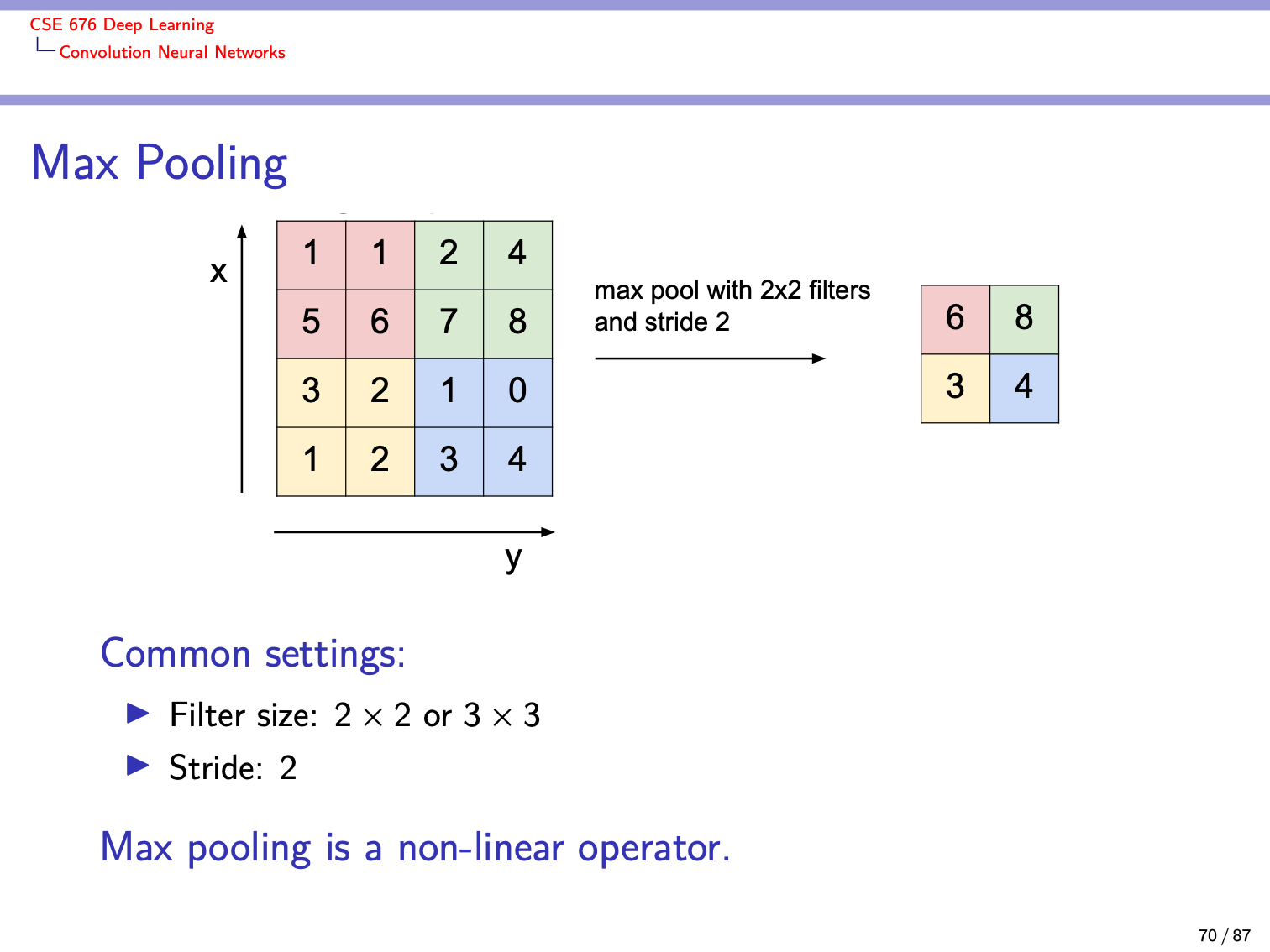

Slide 100

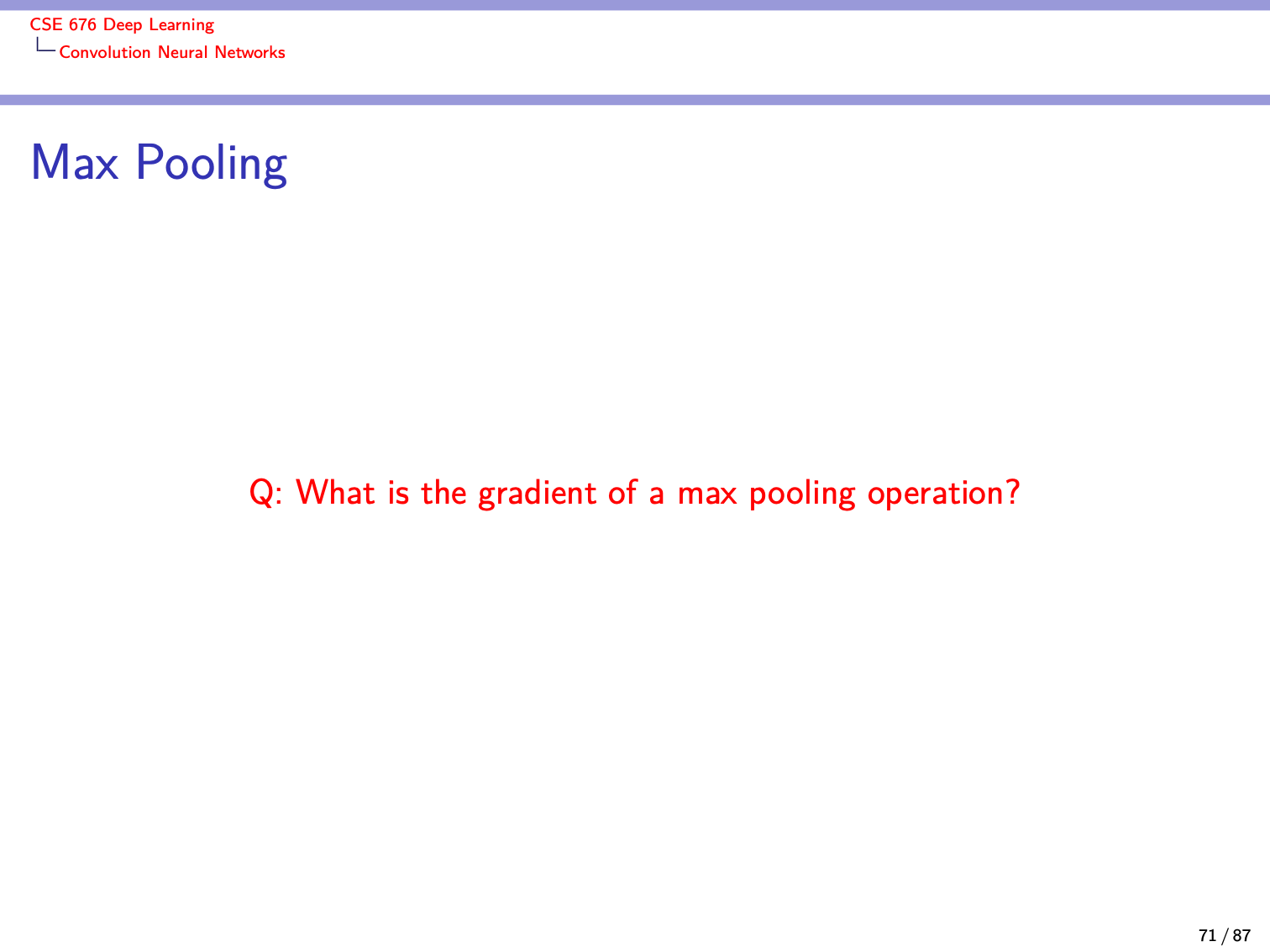

Slide 101

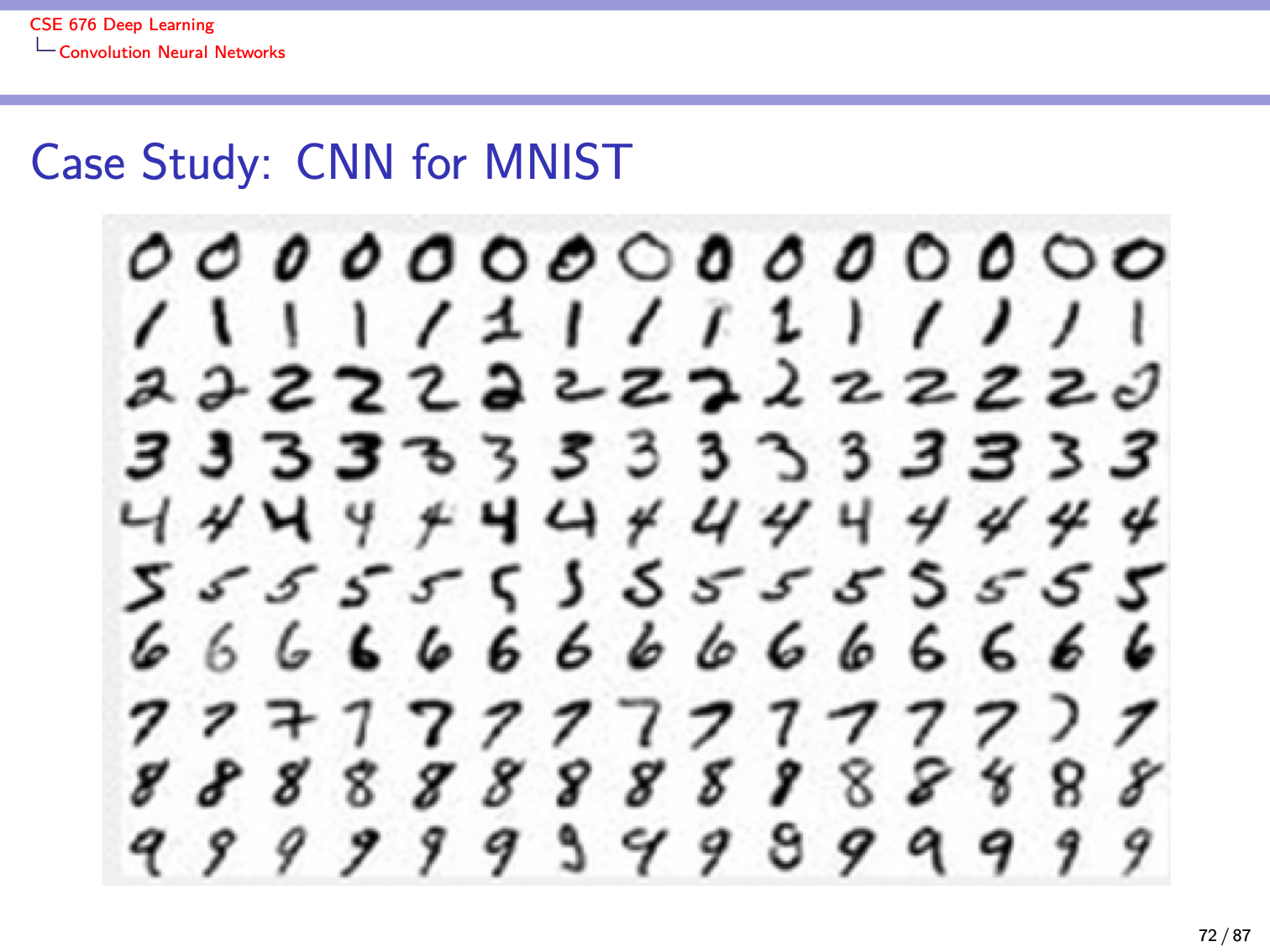

Slide 102

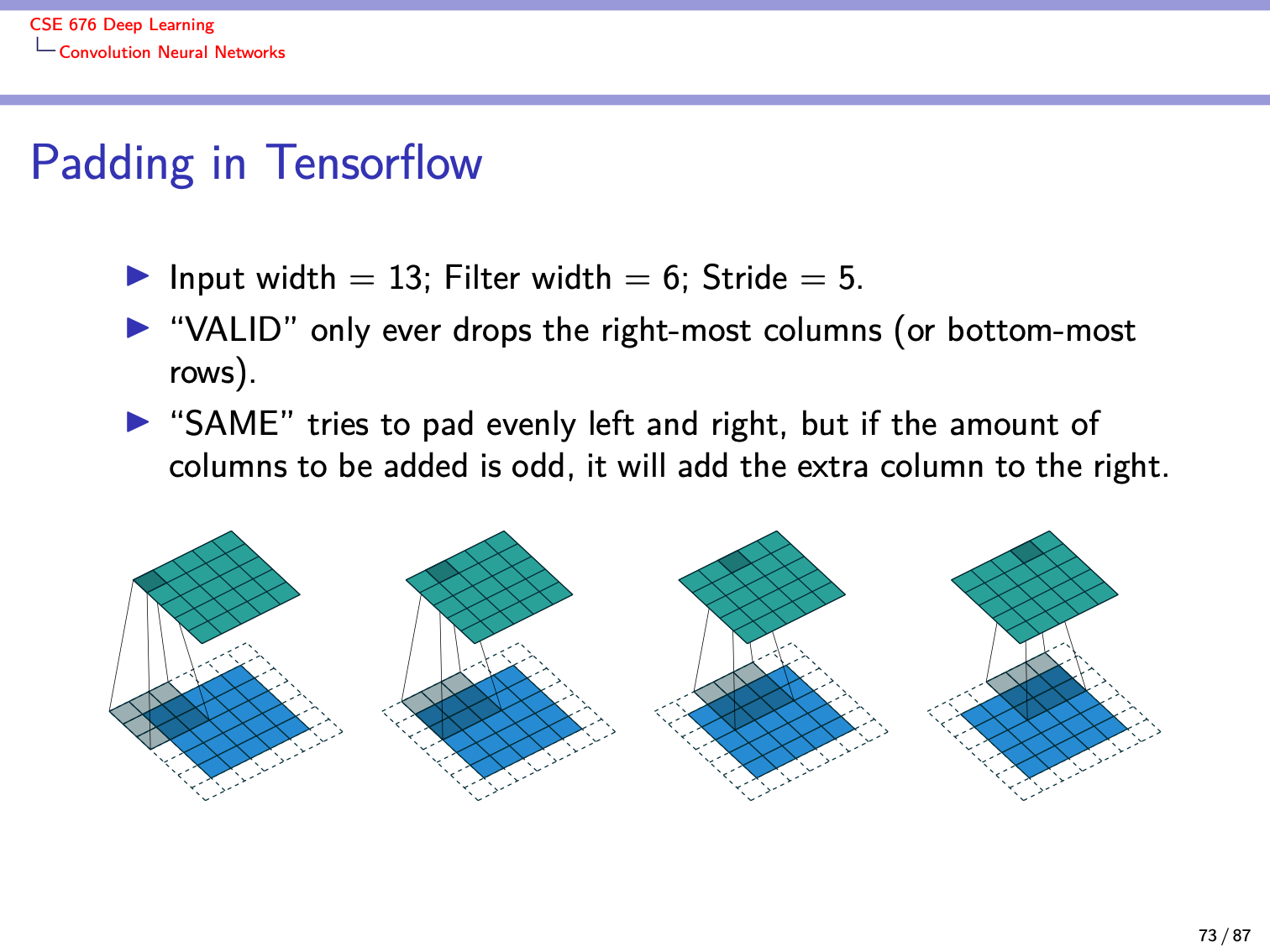

Slide 103

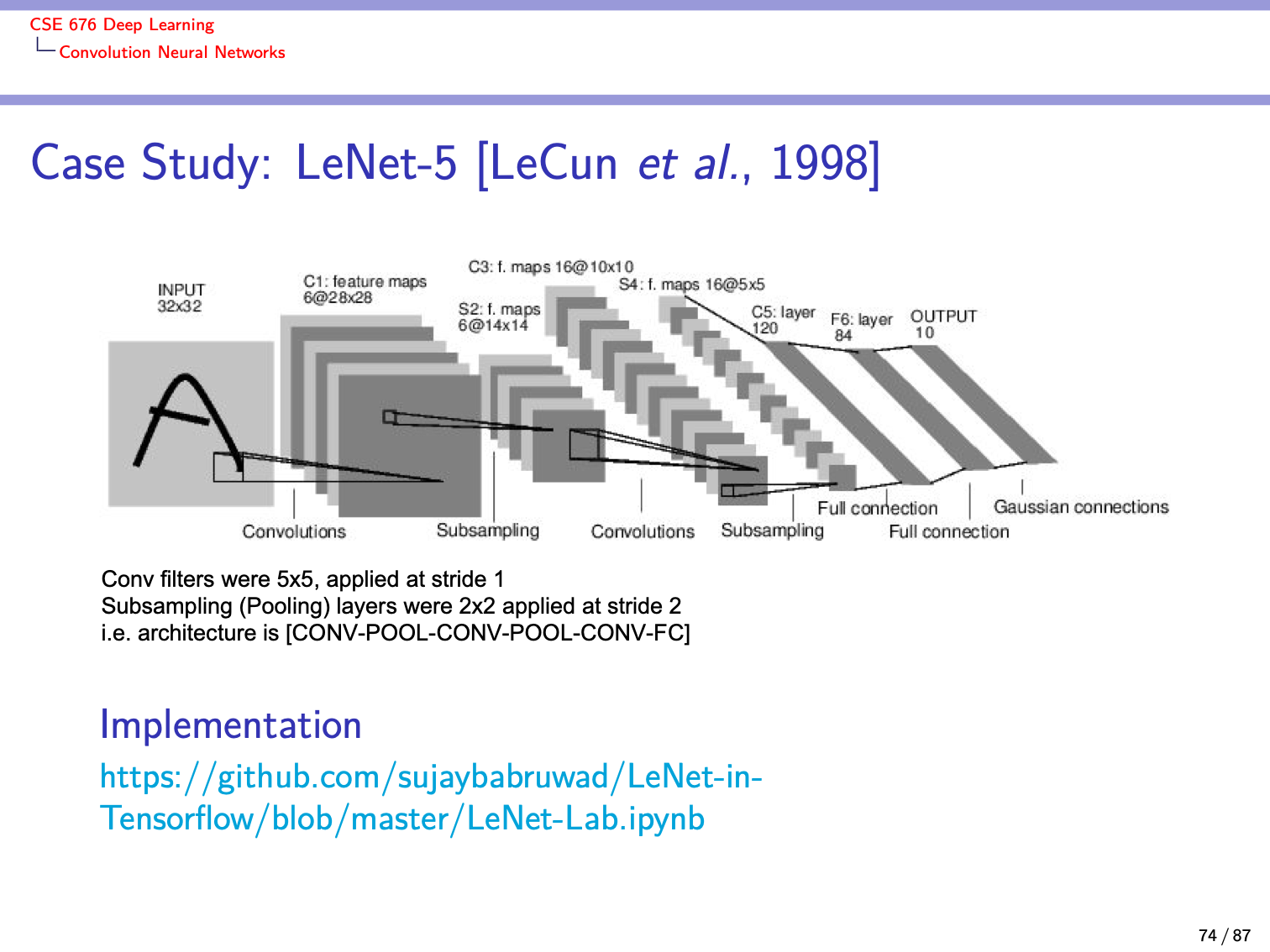

Slide 104

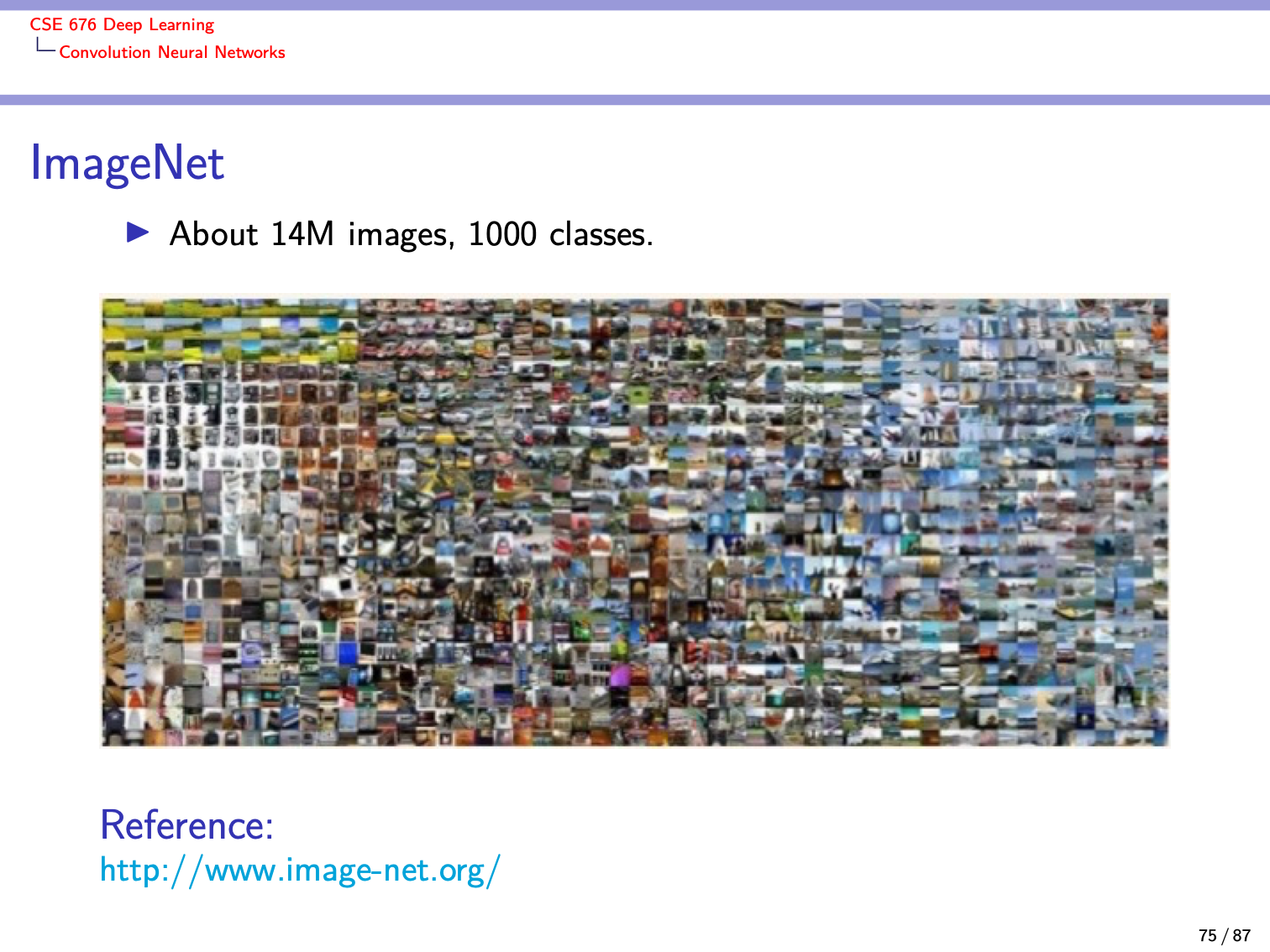

Slide 105

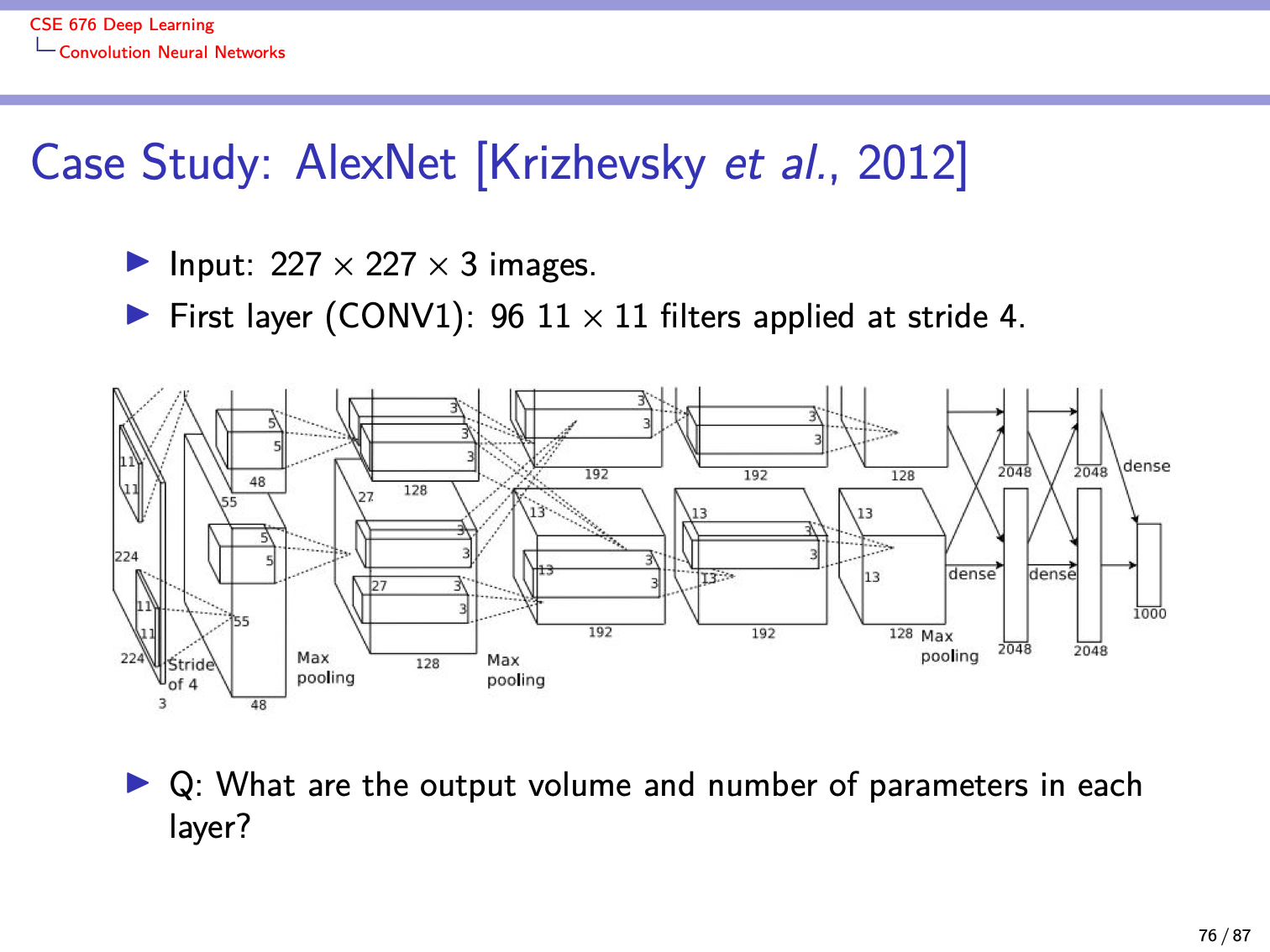

Slide 106

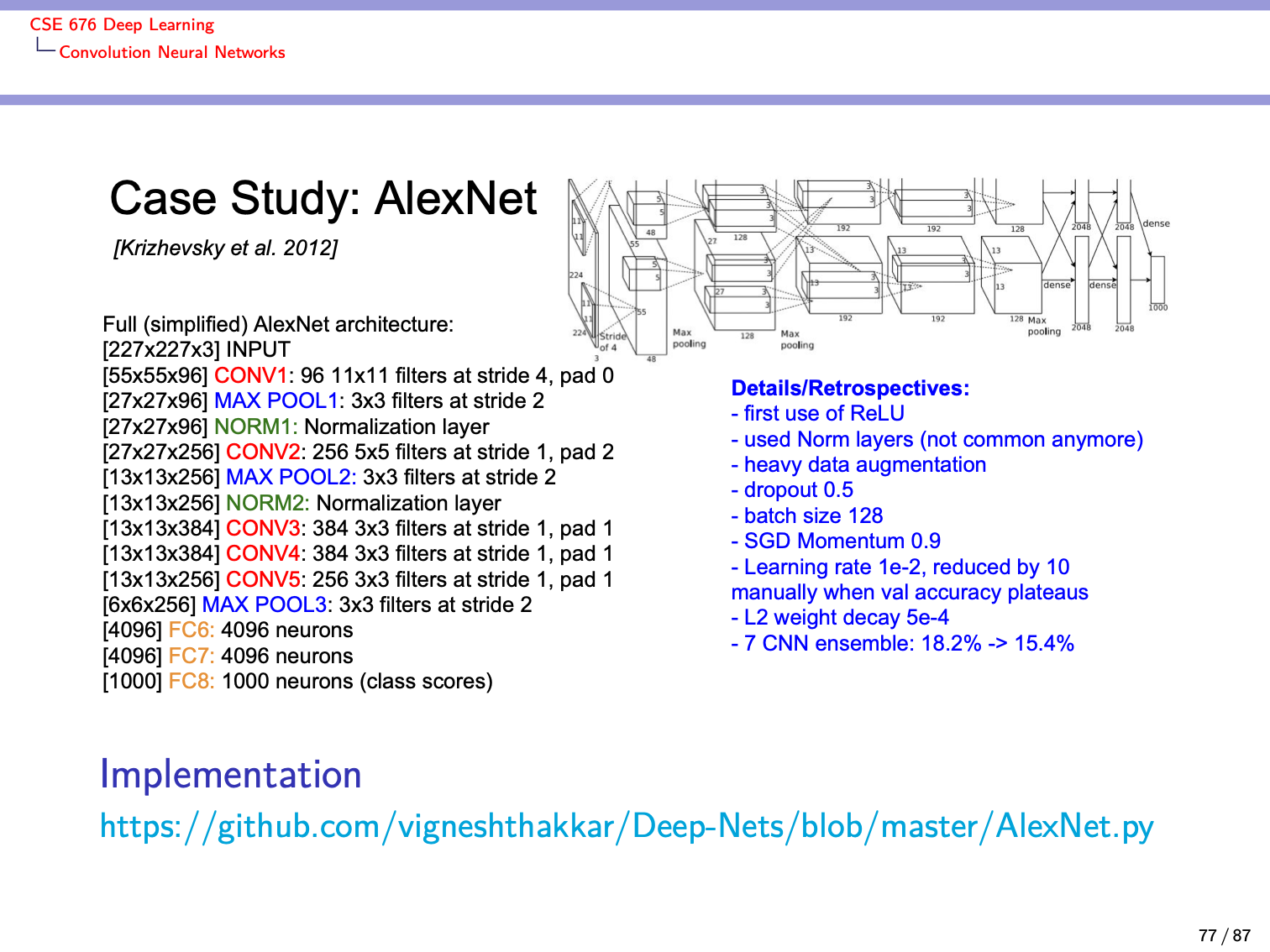

Slide 107

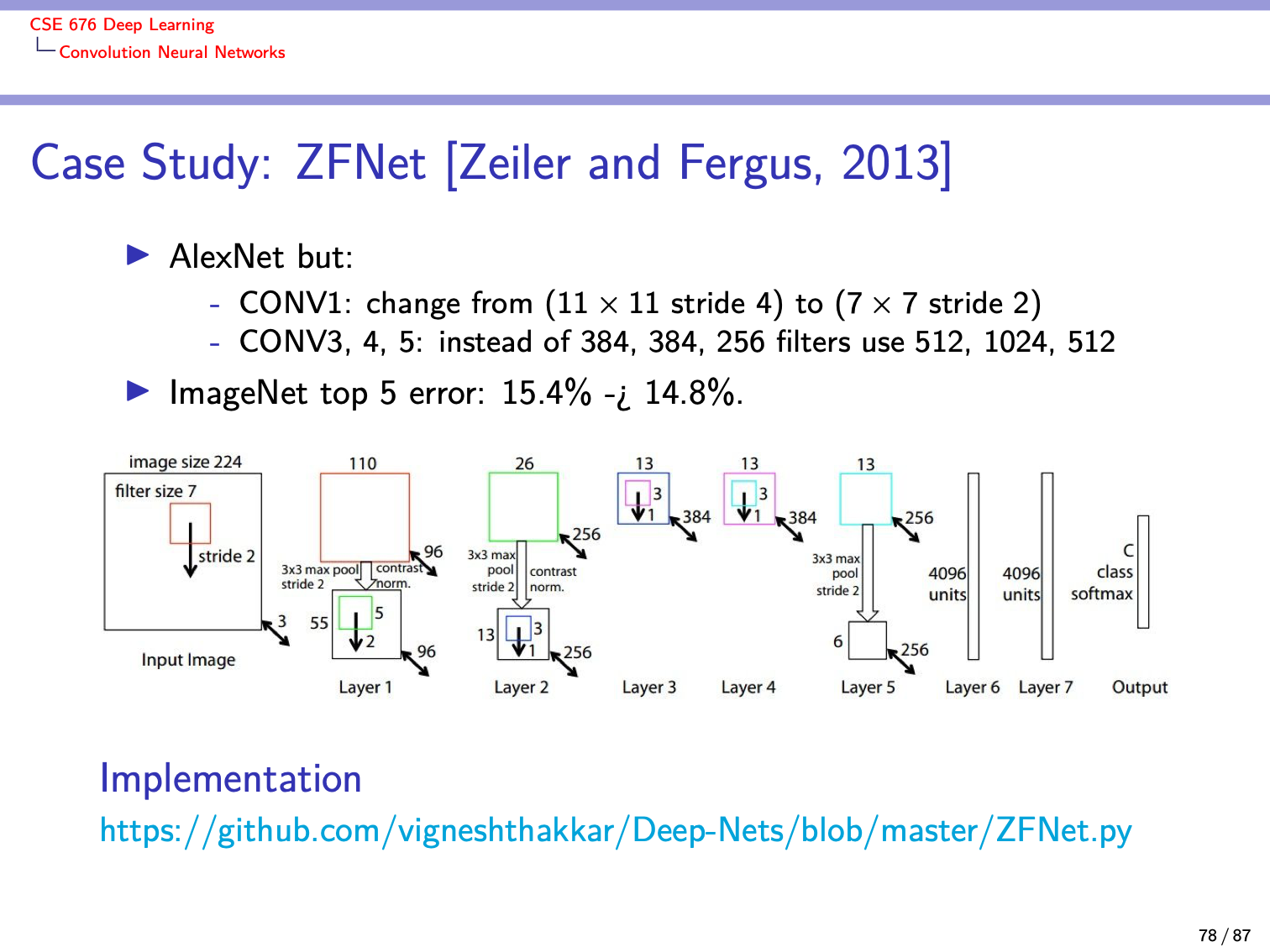

Slide 108

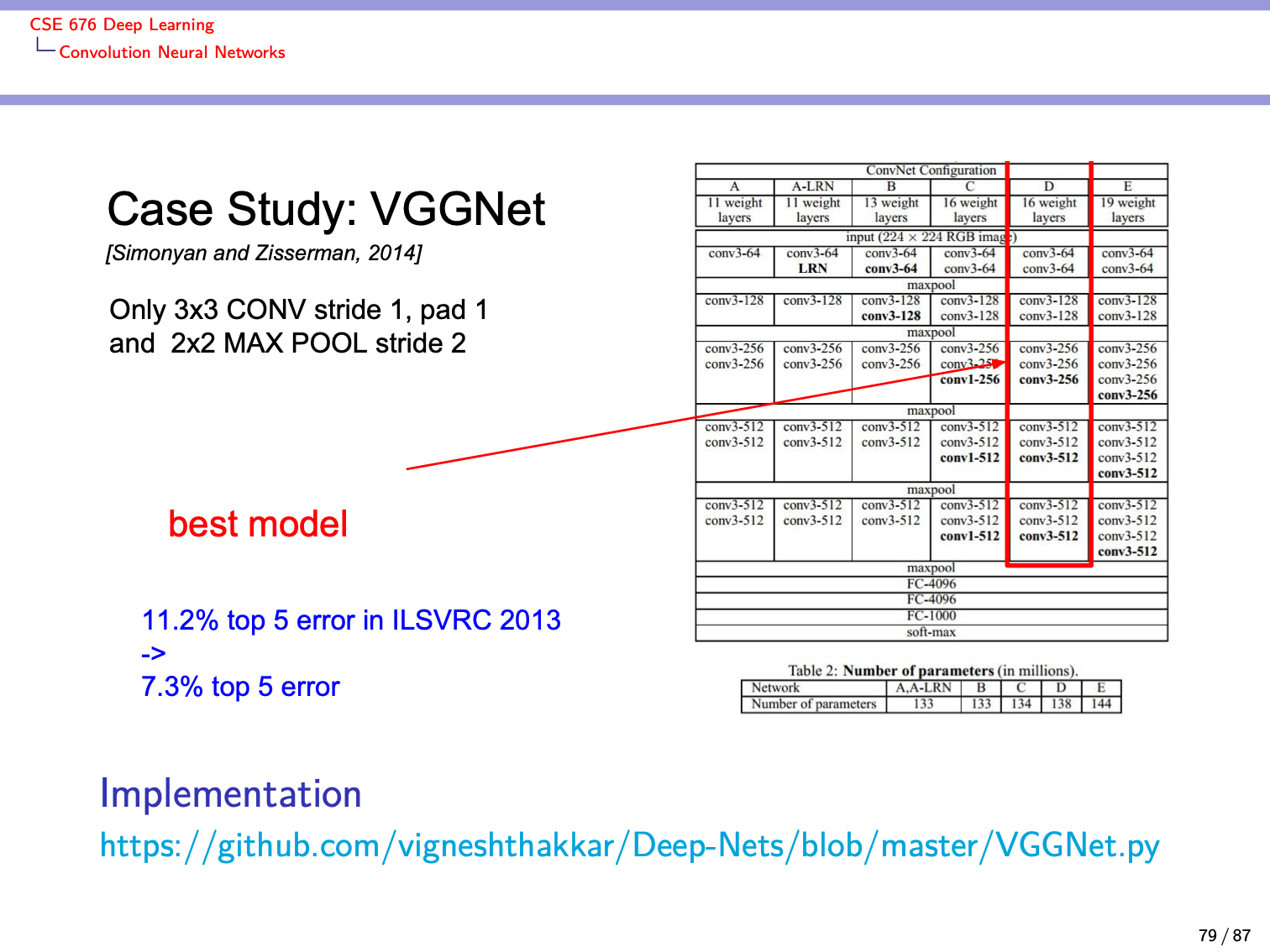

Slide 109

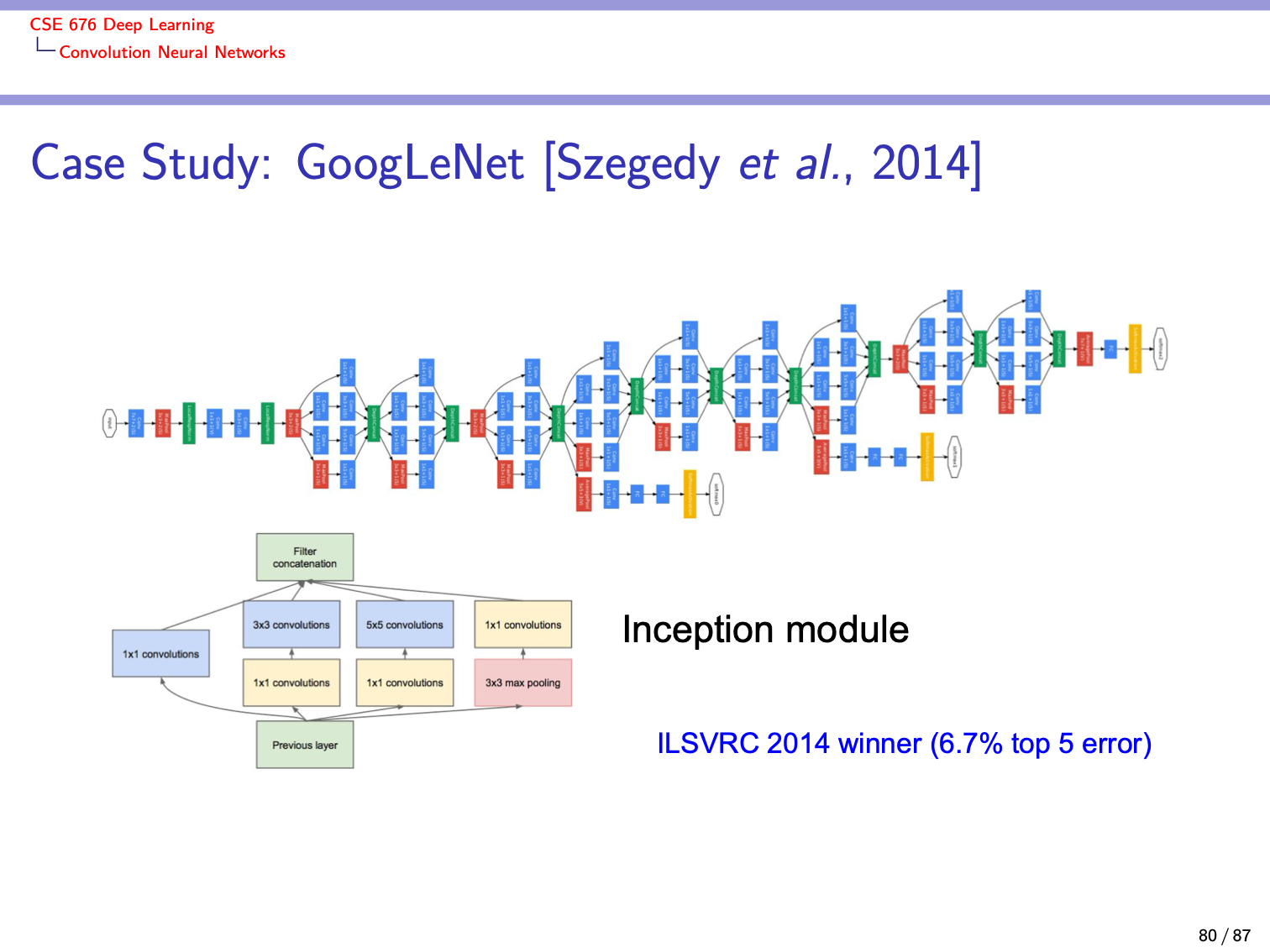

Slide 110

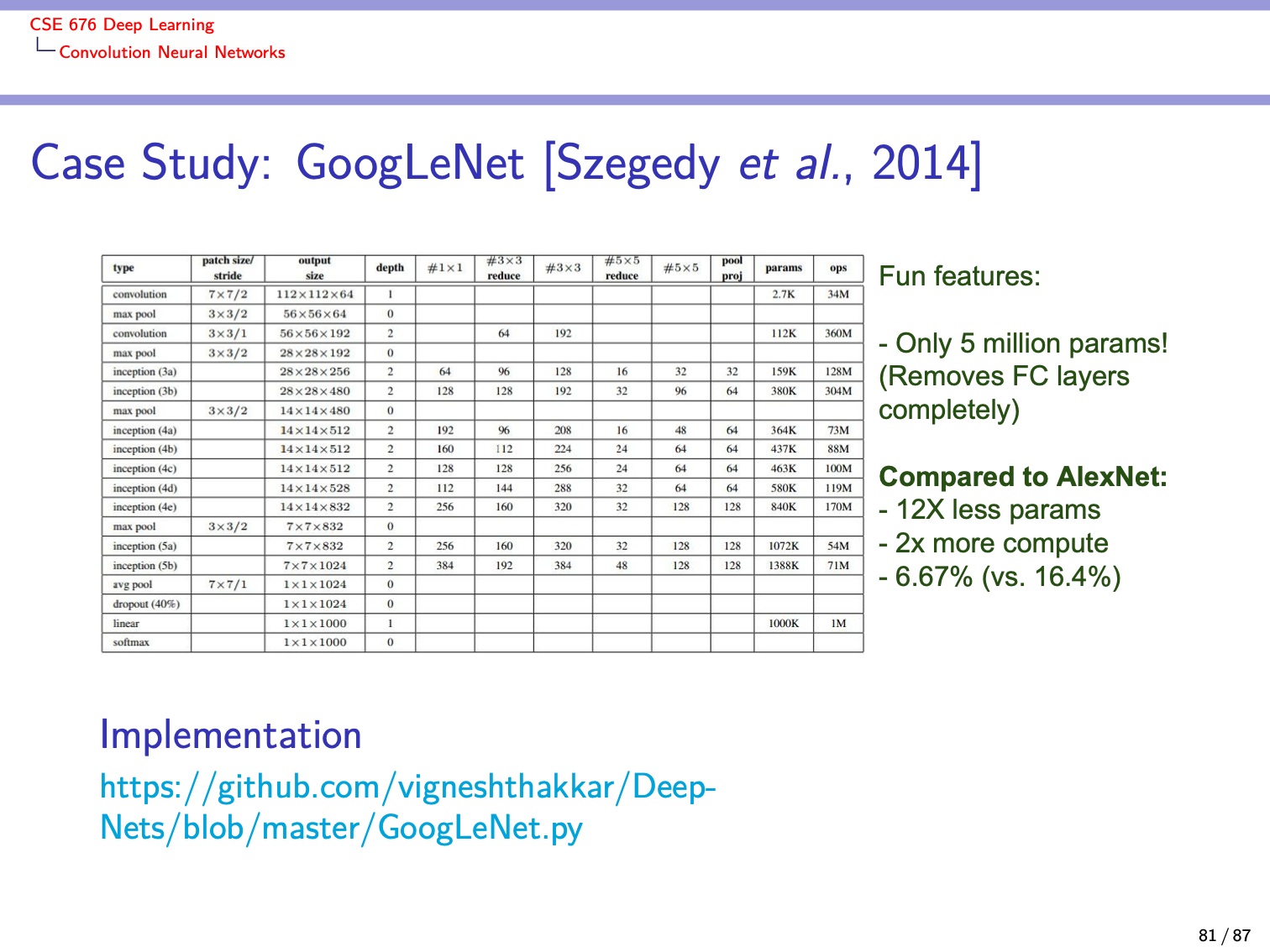

Slide 111

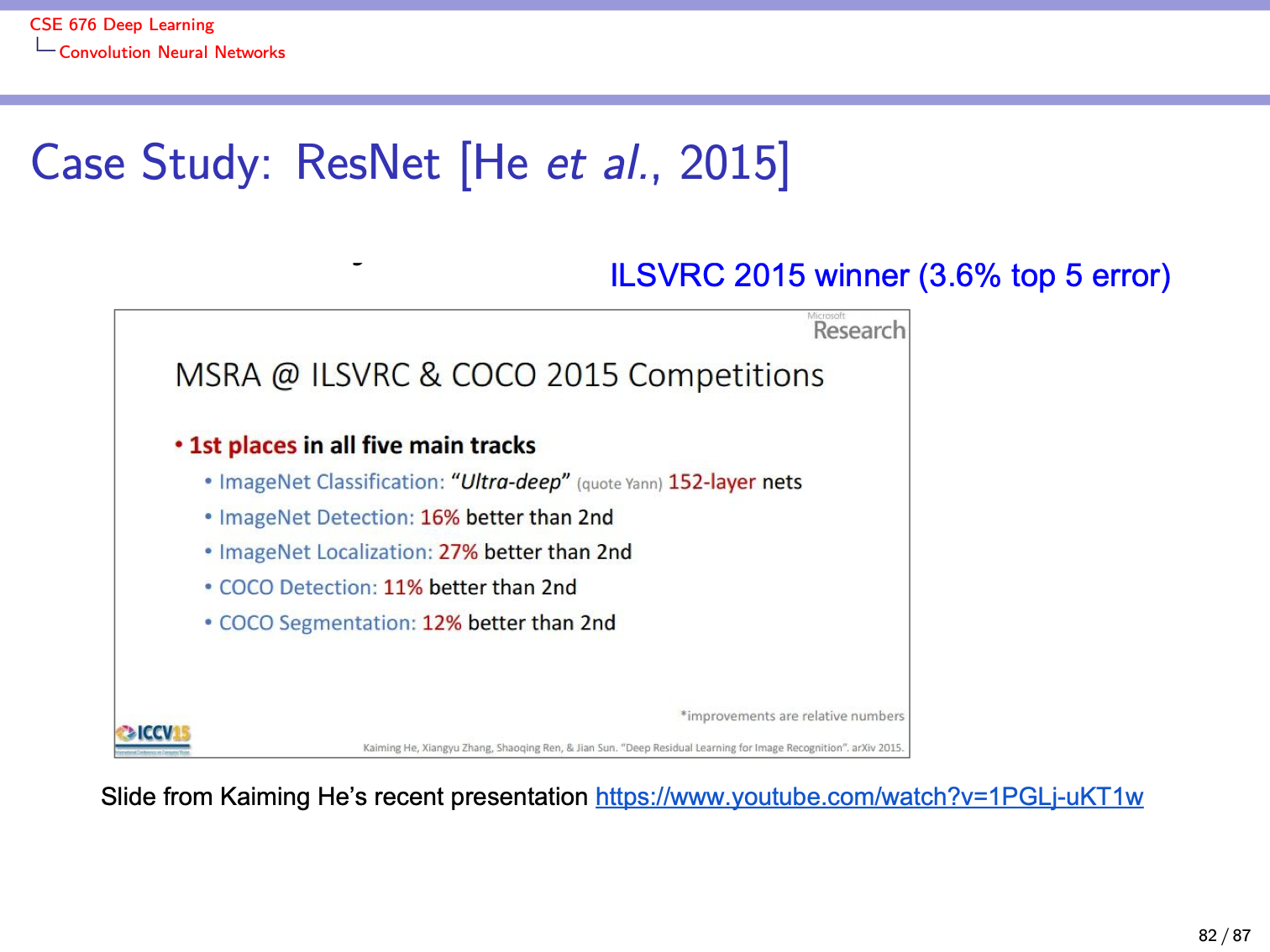

Slide 112

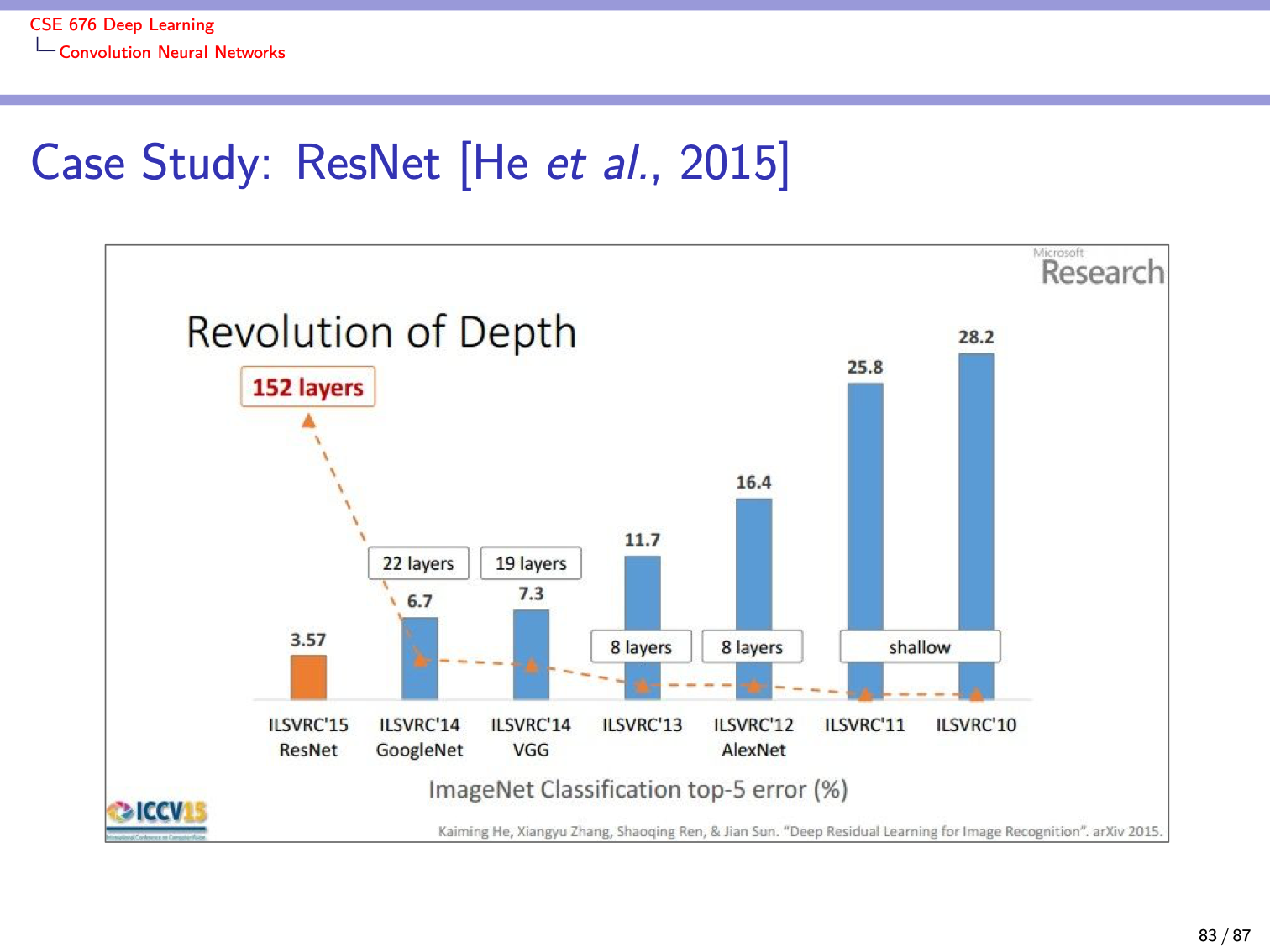

Slide 113

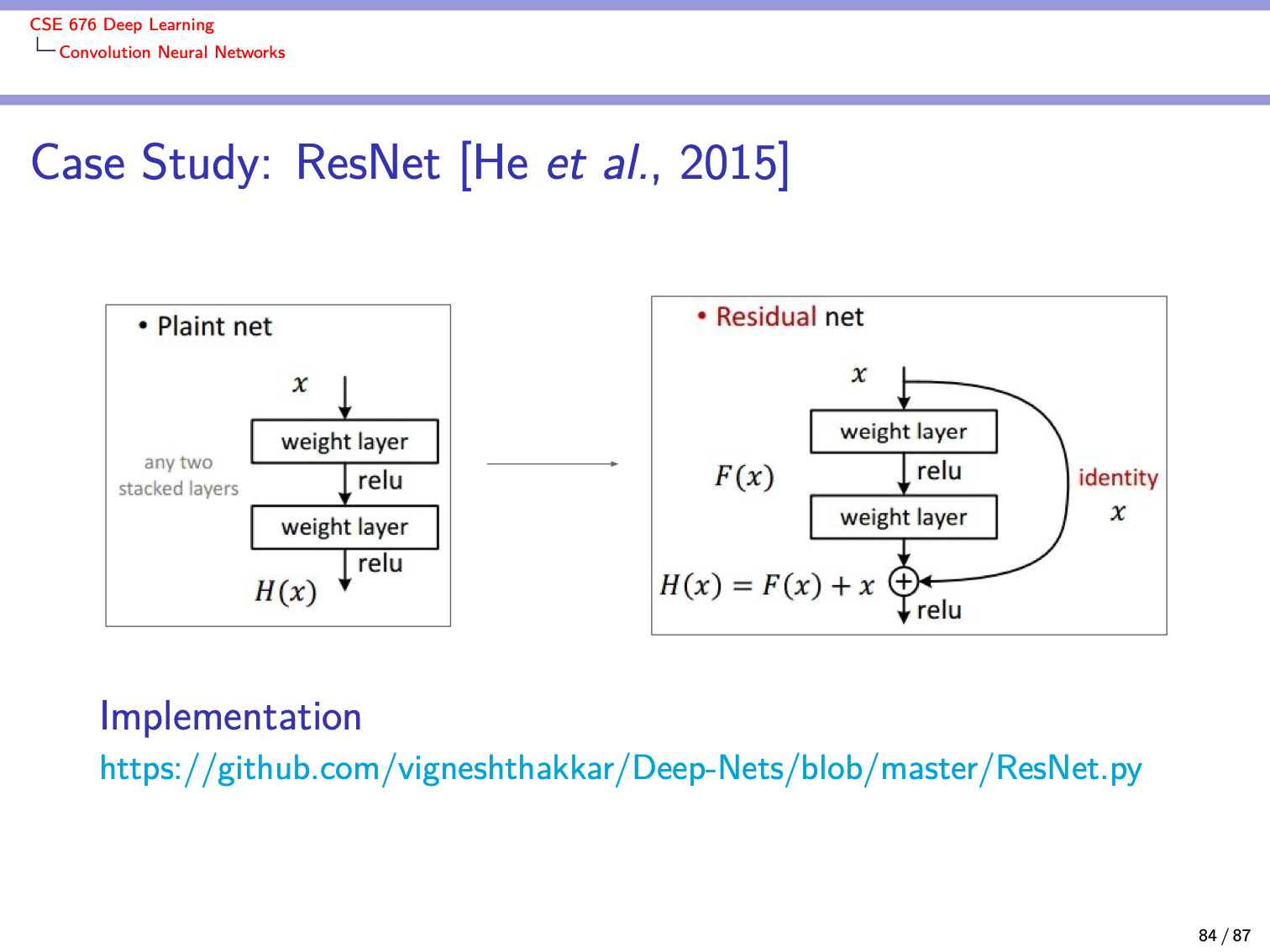

Slide 114

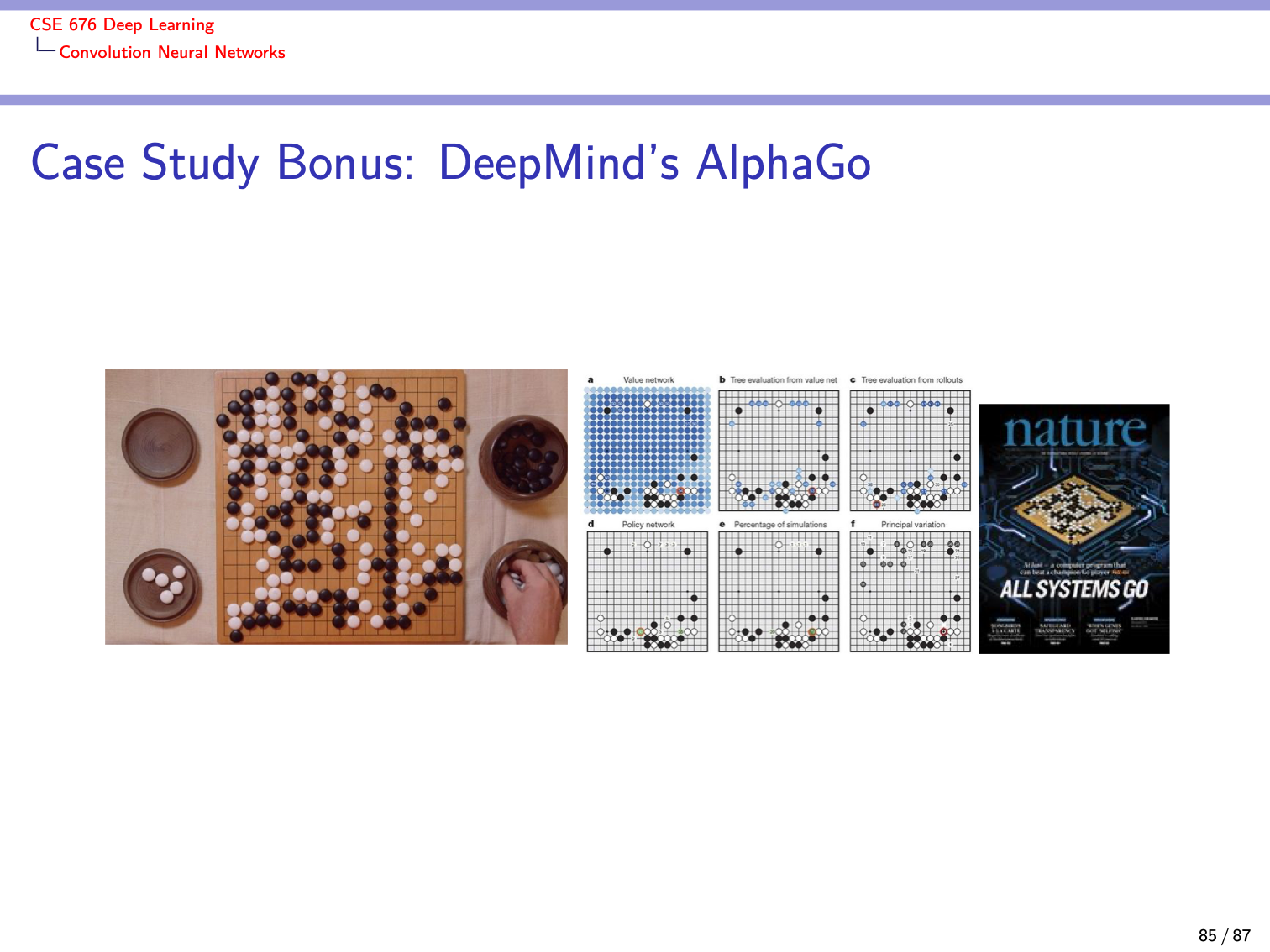

Slide 115

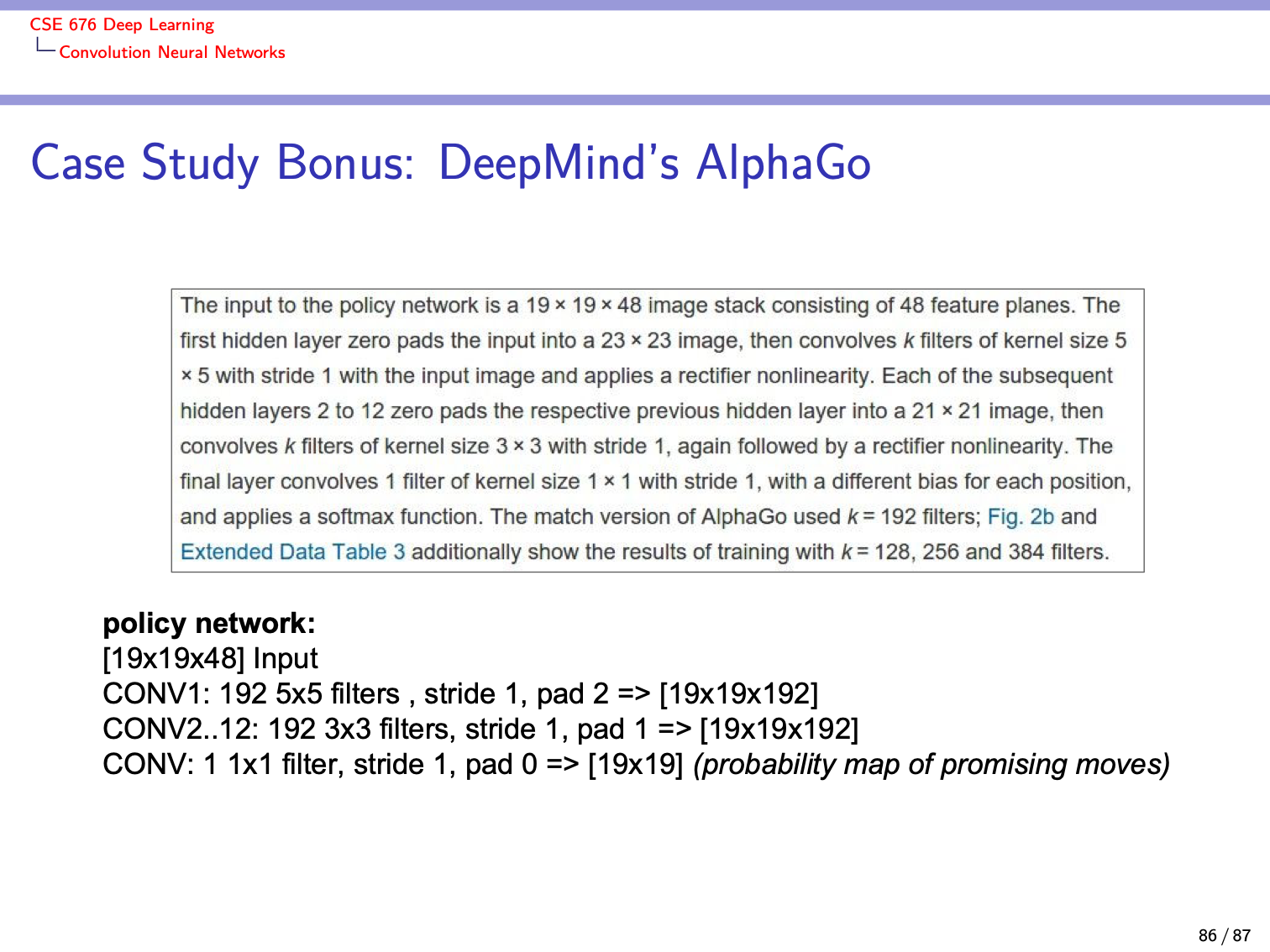

Slide 116

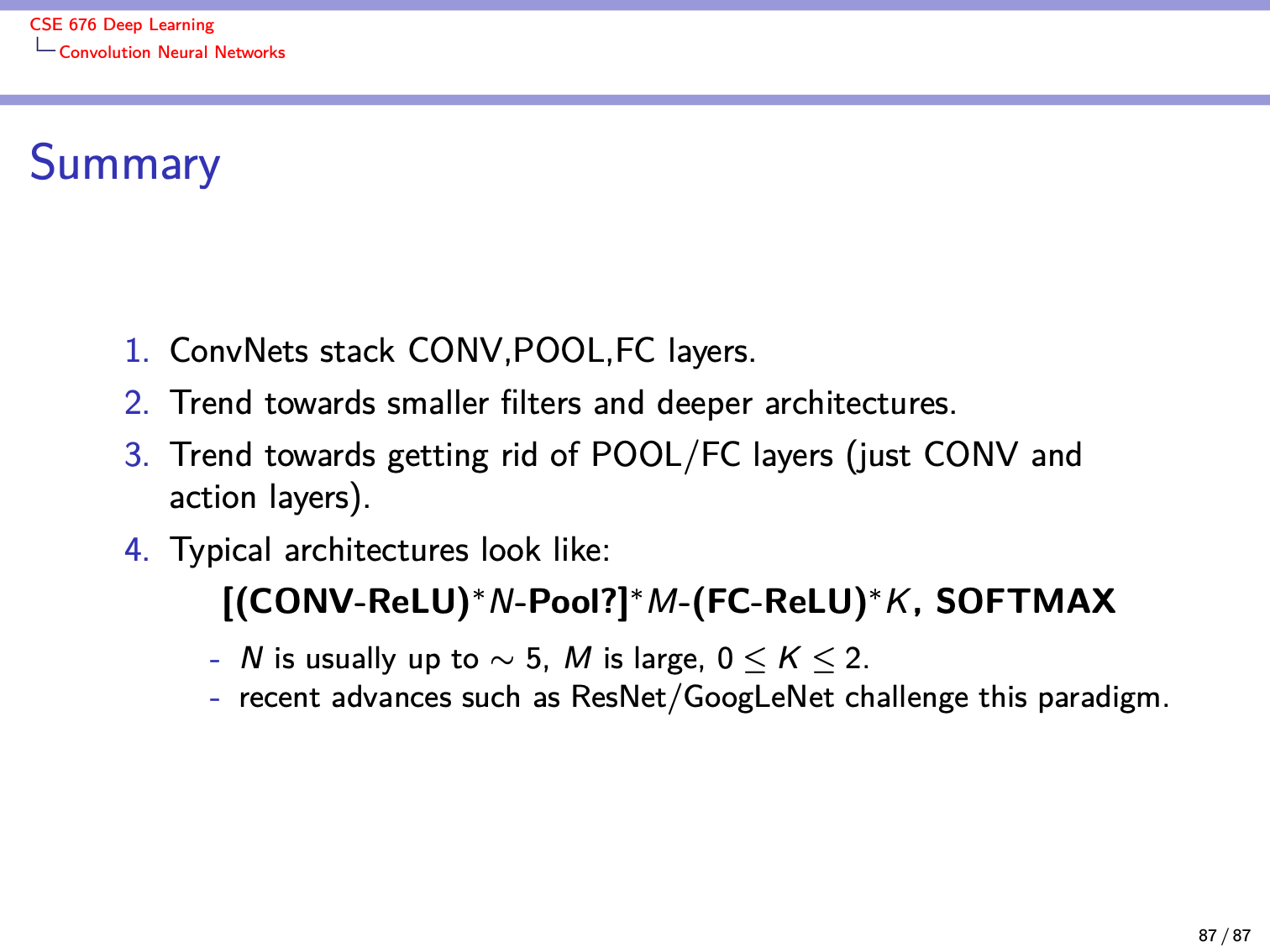

Slide 117
